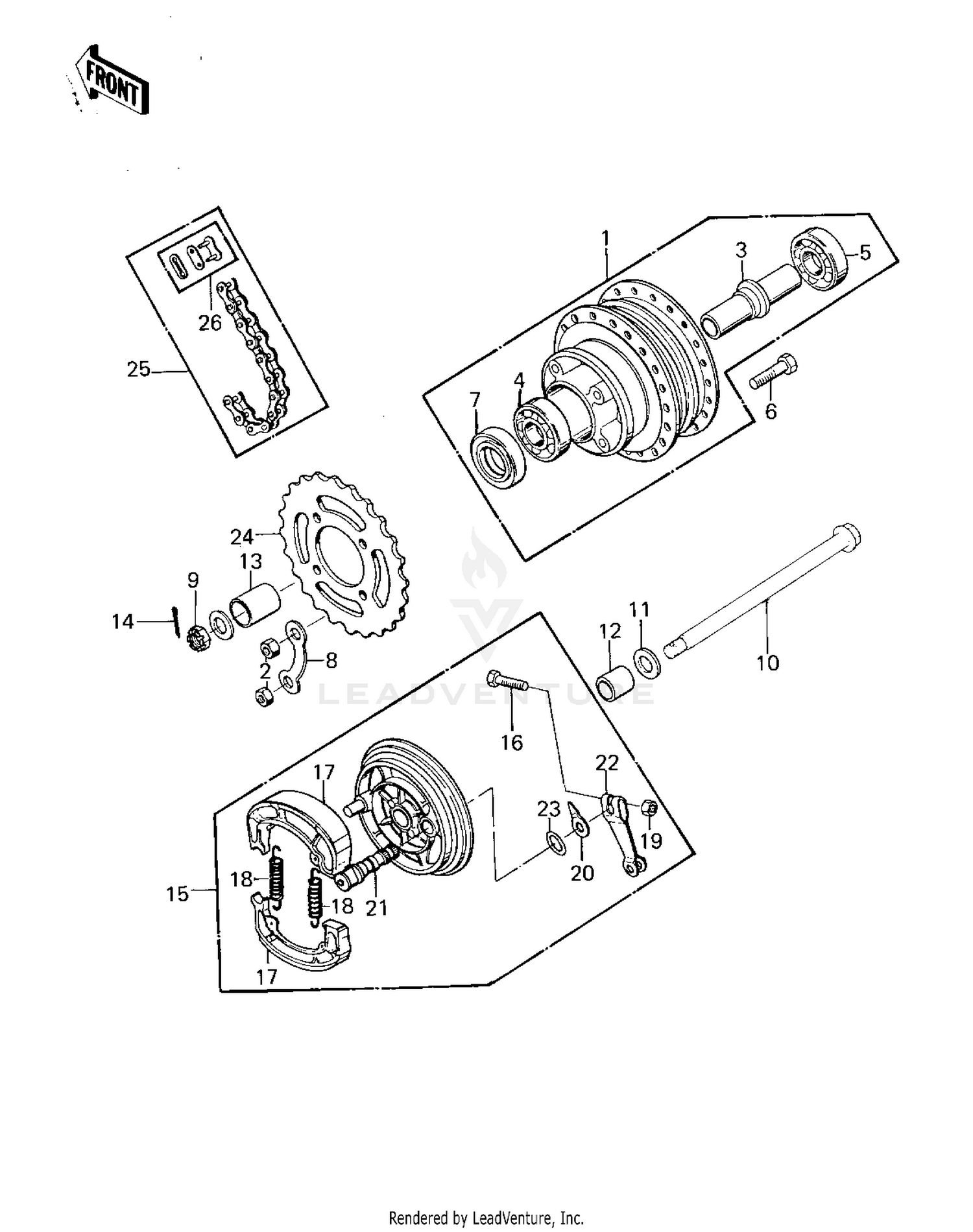

| Ref | Part Number | Description |
|---|
| 1 |
41034-1002-80 |
DRUM-ASSY,RR BRK,BUFF Price: $290.44 |
| 2 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 3 |
42010-003 |
SPACER RR HUB BEARING Price: $11.93 |
| 4 |
601B6301 |
BEARING BALL #6301 Price: $17.51 |
| 5 |
601B6301Z |
BEARING BALL #6301Z Price: $20.51 |
| 6 |
92001-021 |
BOLT REAR SPROCKET Price: $5.59 |
| 7 |
92052-001 |
OIL SEAL RR BRK DRUM Price: $11.93 |
| 8 |
92088-003 |
WASHER RR SPRCKT LOCK Price: $4.60 |
| 9 |
92210-0395 |
NUT,CASTLE,12MM This part replaces 321B1200. Price: $3.86 |
| 10 |
41068-1091 |
AXLE,12X206 Price: $38.07 |
| 11 |
411AA1200 |
WASHER-PLAIN,12MM This part replaces 411B1200. Price: $0.96 |
| 12 |
42032-002 |
COLLAR-REAR HUB R.H Price: $14.66 |
| 13 |
42032-044 |
COLLAR,REAR AXLE Price: $11.65 |
| 14 |
550AA3025 |
PIN-COTTER,3.0X25 This part replaces 550D3025. Price: $0.62 |
| 15 |
41035-1338 |
PANEL-ASSY-BRAKE,RR This part replaces 42006-063-80. Price: $205.58 |
| 16 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 17 |
41048-1085 |
SHOE-BRAKE Price: $22.53 |
| 18 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 19 |
41072-007 |
NUT,6MM Price: $3.92 |
| 20 |
41085-003 |
INDICATOR,BKSHOE Price: $14.51 |
| 21 |
42026-018 |
CAM SHAFT,REAR BRAKE Price: $33.87 |
| 22 |
42029-027 |
LEVER,REAR BRAKE PANL Price: $25.34 |
