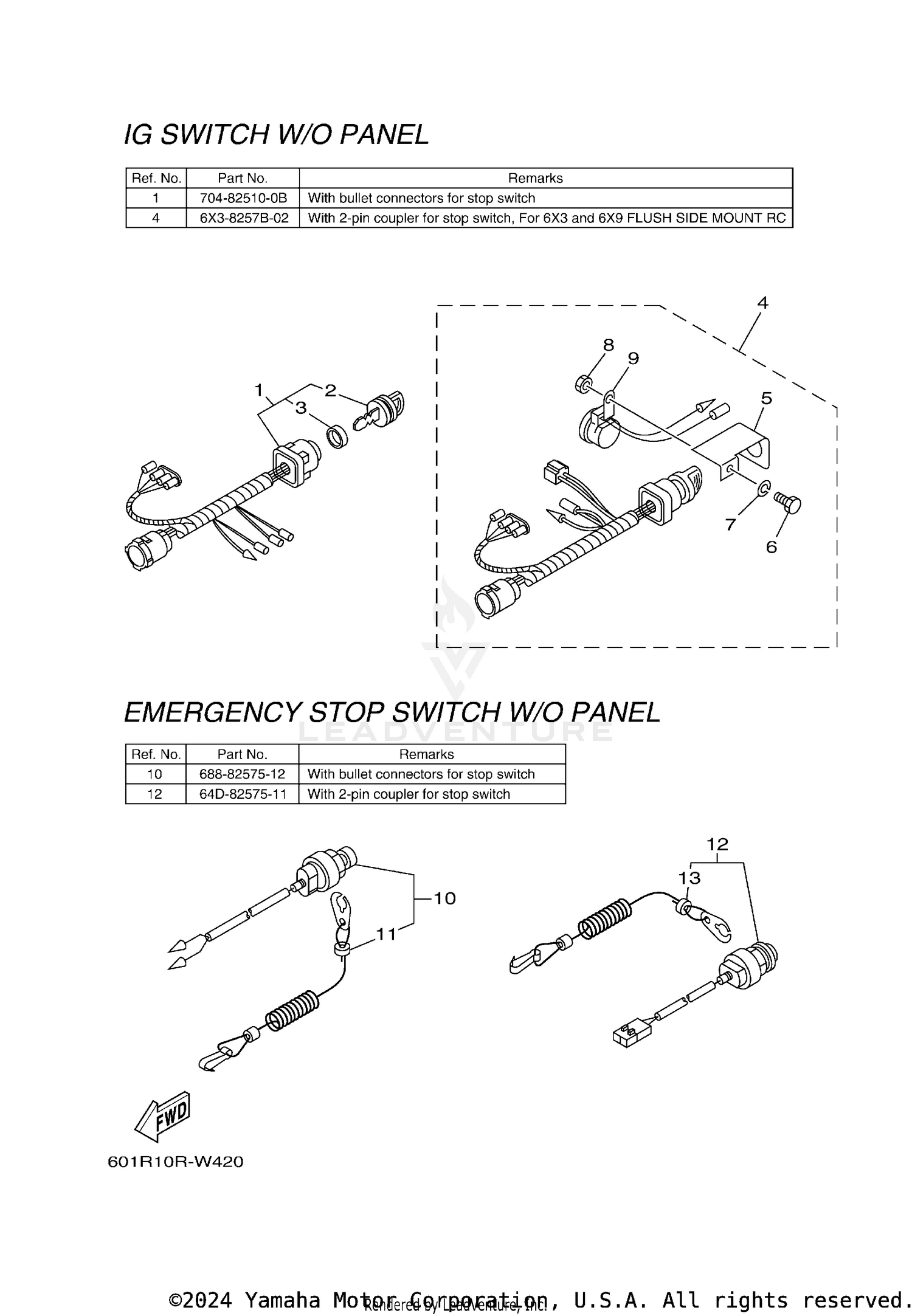

SWITCH & PANEL 19
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 704-82510-0B-00 | MAIN SWITCH ASSY Price: $213.40 |
| 2 | 703-82577-00-00 | CAP, KEY Price: $8.85 |
| 3 | 6K1-82532-00-00 | CAP Price: $5.55 |
| 4 | 6X3-8257B-02-00 | MAIN SWITCH W DUPLEX CON Price: $139.00 |
| 5 | 64D-82581-00-00 | STAY, CORD CLAMP Price: $25.00 |
| 6 | 97095-05012-00 | BOLT This part replaces 97303-05012-00. Price: $1.75 |
| 7 | 92990-05100-00 | WASHER, SPRING This part replaces 92903-05100-00. Price: $0.35 |
| 8 | 95380-05700-00 | NUT This part replaces 95303-05700-00. Price: $5.50 |
| 9 | 6R5-83383-00-00 | BUZZER Price: $56.25 |
| 10 | 688-82575-12-00 | ENGINE STOP SWITCH ASSY Price: $50.10 |
| 11 | 682-82556-00-00 | LANYARD, STOP SWITCH Price: $8.20 |
| 12 | 64D-82575-11-00 | ENGINE STOP SWITCH ASSY Price: $56.00 |
