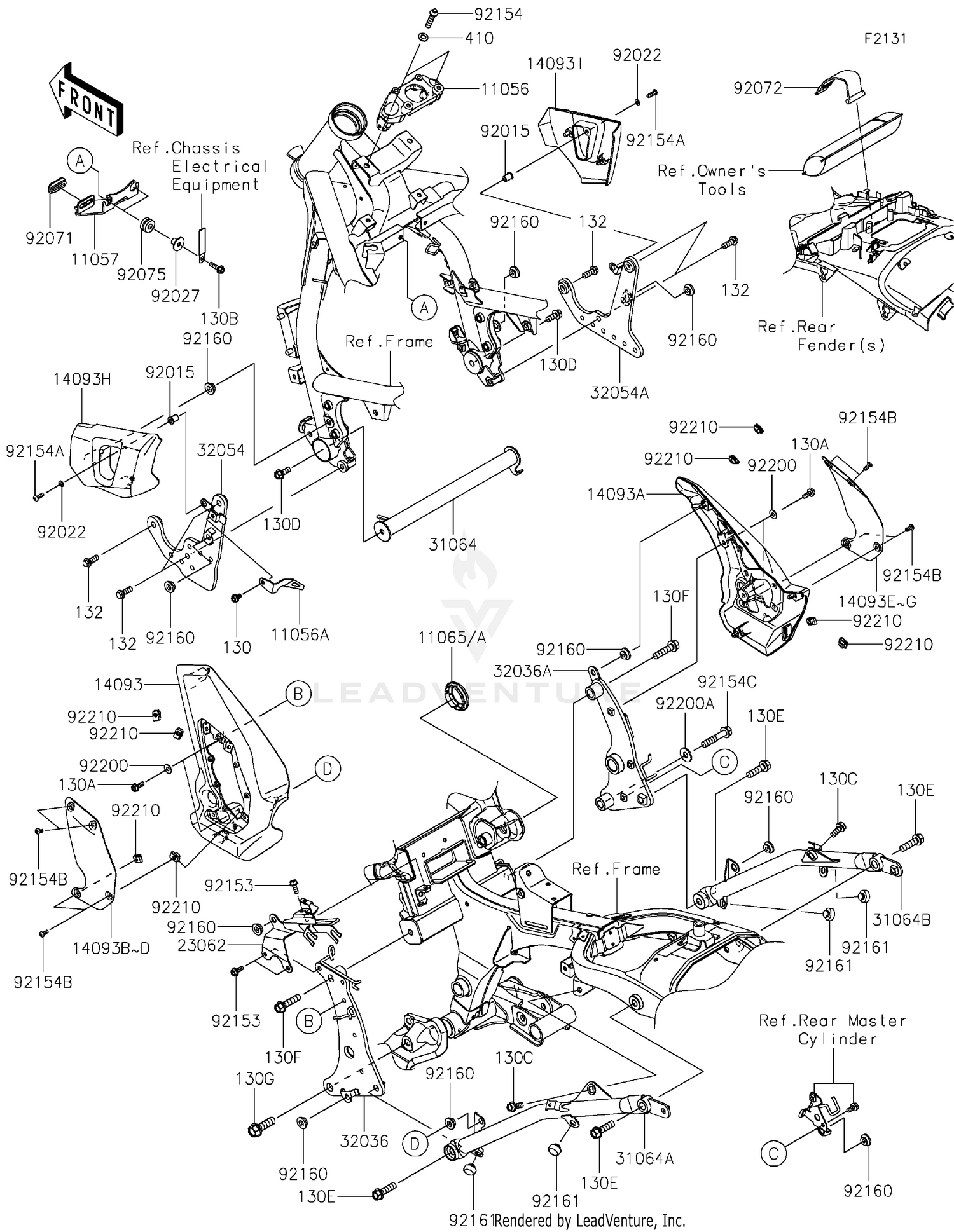

| Ref | Part Number | Description |
|---|
| 11056 |
11056-0805 |
BRACKET,IGNITION SW. Price: $49.54 |
| 11056A |
11056-4456 |
BRACKET,STEP STAY COVER,LH Price: $5.23 |
| 11057 |
11057-0177 |
BRACKET,REGULATOR Price: $15.41 |
| 11065 |
11065-0868-18T |
CAP,SHOCK BKT.,F.S.BLACK Price: $3.60 |
| 11065A |
11065-0868-69P |
CAP,SHOCK BKT.,M.M.D.GRAY Price: $3.60 |
| 14093 |
14093-0115 |
COVER,PIVOT,LH Price: $85.99 |
| 14093A |
14093-0116 |
COVER,PIVOT,RH Price: $85.99 |
| 14093B |
14093-0117-25X |
COVER,PIVOT,PLATE,LH,M.M.GRAY Price: $78.82 |
| 14093C |
14093-0117-660 |
COVER,PIVOT,PLATE,LH,M.S.BLACK Price: $84.81 |
| 14093D |
14093-0117-69P |
COVER,PIVOT,PLATE,LH,GRAY Price: $81.06 |
| 14093E |
14093-0118-25X |
COVER,PIVOT,PLATE,RH,M.M.GRAY Price: $78.82 |
| 14093F |
14093-0118-660 |
COVER,PIVOT,PLATE,RH,M.S.BLACK Price: $84.81 |
| 14093G |
14093-0118-69P |
COVER,PIVOT,PLATE,RH,GRAY Price: $81.06 |
| 14093H |
14093-0348-18T |
COVER,STEP STAY,LH,F.S.BLACK Price: $85.99 |
| 14093I |
14093-0349-18T |
COVER,STEP STAY,RH,F.S.BLACK Price: $85.99 |
| 23062 |
23062-0822 |
BRACKET-COMP,SIDE COVER Price: $24.27 |
| 31064 |
31064-0649 |
PIPE-COMP,FR FRAME Price: $22.19 |
| 31064A |
31064-0652-18R |
PIPE-COMP,RR,LH,F.S.BLACK Price: $165.22 |
| 31064B |
31064-0653-18R |
PIPE-COMP,RR,RH,F.S.BLACK Price: $165.22 |
| 32036 |
32036-0349 |
BRACKET-SWINGARM,LH Price: $96.36 |
| 32036A |
32036-0350 |
BRACKET-SWINGARM,RH Price: $96.36 |
| 32054 |
32054-0075 |
BRACKET-STEP,LH Price: $169.05 |
| 32054A |
32054-0076 |
BRACKET-STEP,RH Price: $159.16 |
| 92015 |
92015-1757 |
NUT,WELL,5MM Price: $7.29 |
| 92022 |
92022-1977 |
WASHER,5.1X10X1.0 Price: $3.65 |
| 92027 |
92027-1450 |
COLLAR,L=13.1,BLACK Price: $6.22 |
| 92071 |
92071-0013 |
GROMMET Price: $5.54 |
| 92072 |
92072-0056 |
BAND,TOOL Price: $2.32 |
| 92075 |
92075-209 |
DAMPER Price: $4.69 |
| 92153 |
92153-0713 |
BOLT,FLANGED,6X16 Price: $2.12 |
| 92154 |
92154-0730 |
BOLT,TORX,8X35 Price: $7.58 |
| 92154A |
92154-1470 |
BOLT,SOCKET,5X16 Price: $1.48 |
| 92154B |
92154-1471 |
BOLT,SOCKET,5X12 Price: $1.48 |
| 92154C |
92154-1620 |
BOLT,FLANGED,10X50 Price: $6.52 |
| 92160 |
92160-1613 |
DAMPER Price: $3.74 |
| 92161 |
92161-0855 |
DAMPER,10X20X8 Price: $4.25 |
| 92200 |
92200-0796 |
WASHER,6.5X16X1.0 Price: $0.85 |
| 92200A |
92200-1686 |
WASHER,10.2X25X2.3 Price: $1.97 |
| 92210 |
92210-0935 |
NUT,PLATE,5MM Price: $1.97 |
