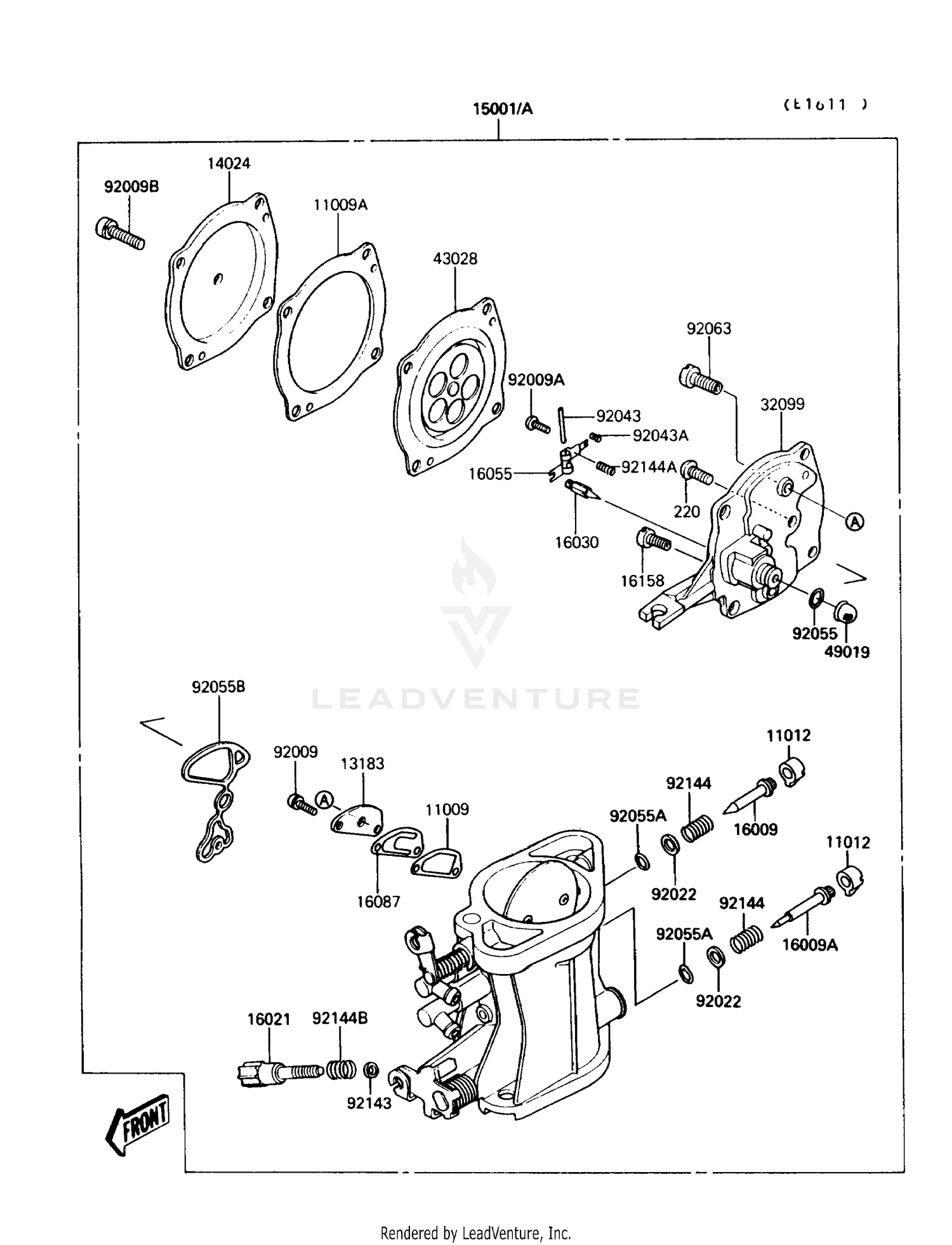

| Ref | Part Number | Description |
|---|
| 220 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220D0408. Price: $0.68 |
| 11009 |
11009-3729 |
GASKET,CHOKE VALVE Price: $11.40 |
| 11009A |
11009-3730 |
GASKET,DIAPHRAGM Price: $15.34 |
| 11012 |
11012-3727 |
CAP,JET NEEDLE Price: $4.27 |
| 13183 |
13183-3707 |
PLATE Price: $13.07 |
| 14024 |
14024-3720 |
COVER,CARBURETOR Price: $43.70 |
| 15001A |
15001-3747 |
CARBURETOR-ASSY Price: $614.18 |
| 16009 |
16009-3705 |
NEEDLE-JET,HIGH SPEED Price: $37.24 |
| 16009A |
16009-3706 |
NEEDLE-JET,LOW SPEED Price: $37.24 |
| 16021 |
16021-3702 |
SCREW-THROTTLE STOP Price: $47.91 |
| 16030 |
16030-3701 |
VALVE-FLOAT Price: $50.52 |
| 16055 |
16055-3701 |
ARM-FLOAT Price: $47.66 |
| 16087 |
16087-3702 |
VALVE-CHECK Price: $10.67 |
| 16158 |
16158-3701 |
JET-SLOW,#48 Price: $14.06 |
| 32099 |
32099-3729 |
CASE,CARBURETOR Price: $115.72 |
| 43028 |
43028-3704 |
DIAPHRAGM,CARBURETOR Price: $95.55 |
| 49019 |
49019-3707 |
FILTER-FUEL,STRAINER Price: $8.15 |
| 92009 |
92009-2080 |
SCREW This part replaces 92009-3710. Price: $1.96 |
| 92009A |
92009-3712 |
SCREW,3X6 Price: $2.38 |
| 92009B |
92009-3739 |
SCREW,4X16 Price: $7.33 |
| 92022 |
92022-3745 |
WASHER,ADJUST SCREW Price: $6.03 |
| 92043 |
92043-1209 |
PIN,FLOAT Price: $6.16 |
| 92043A |
92043-3712 |
PIN,THROTTLE STOP SCR Price: $4.85 |
| 92055 |
92055-1246 |
RING-O Price: $4.50 |
| 92055A |
92055-3713 |
RING-O,ADJUST SCREW Price: $5.23 |
| 92055B |
92055-3720 |
RING-O Price: $14.18 |
| 92063 |
92063-1069 |
JET-MAIN,2ND,#125 Price: $14.79 |
| 92143 |
92143-3709 |
COLLAR,THROTTLE STOP Price: $14.05 |
| 92144 |
92144-3704 |
SPRING,ADJUST SCREW Price: $6.89 |
| 92144A |
92144-3705 |
SPRING,FLOAT VALVE Price: $7.26 |
