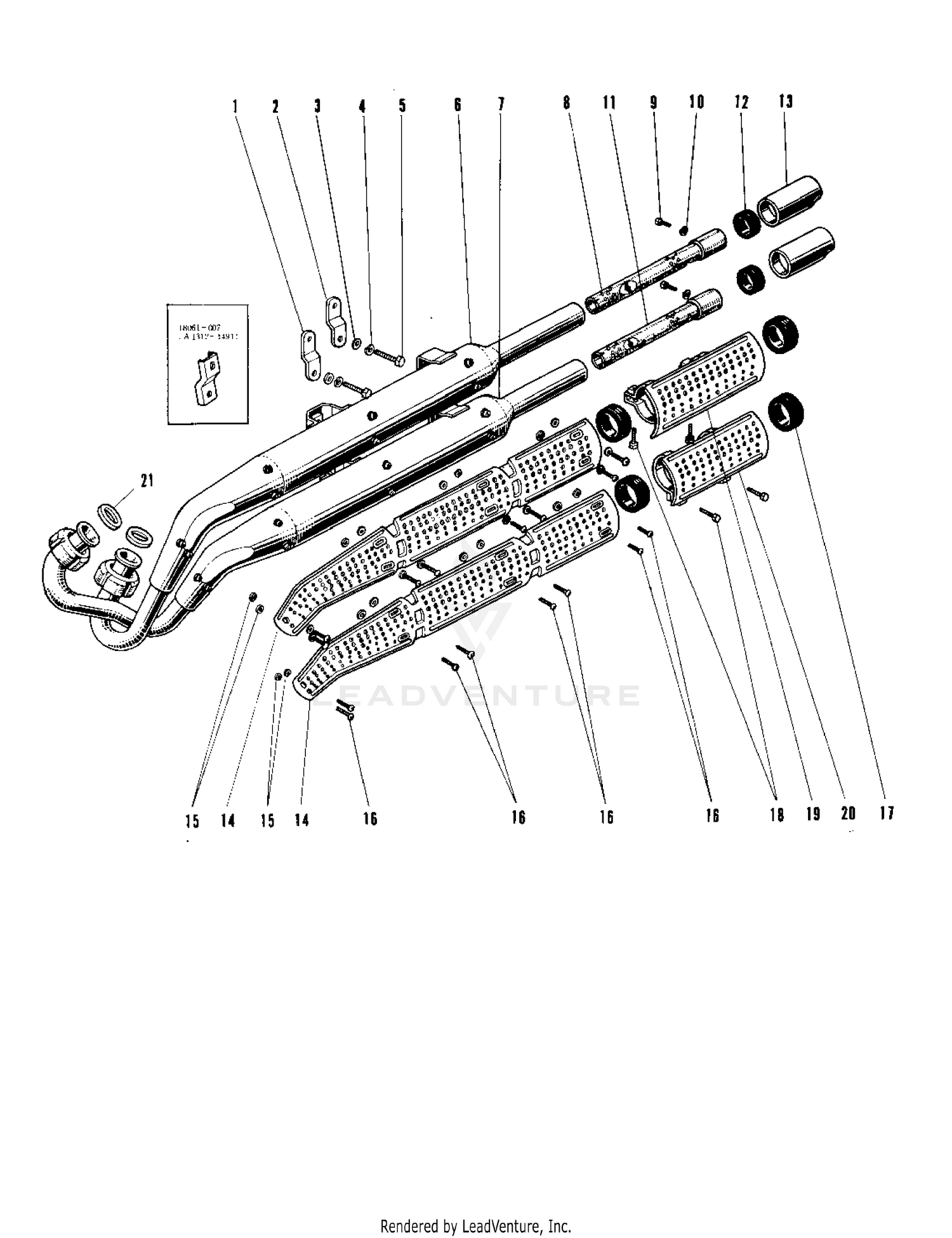

| Ref | Part Number | Description |
|---|
| 1 |
18061-008 |
BRACKET LOWER MUFFLER Price: $2.98 |
| 2 |
18061-007 |
BRACKET UPPER MUFFLER Price: $4.24 |
| 3 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 4 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 5 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 8 |
18033-016 |
BAFFLE TUBE UPPER Price: $29.62 |
| 9 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 10 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11 |
18033-017 |
BAFFLE TUBE LOWER Price: $20.92 |
| 12 |
18068-003 |
RUBBER SEAL Price: $1.05 |
| 13 |
18048-004 |
TAIL PIECE Price: $16.27 |
| 14 |
18057-009 |
COVER MUFFLER UPPER Price: $22.99 |
| 15 |
18065-006 |
INSULATOR Price: $1.52 |
| 15 |
92065-024 |
INSULATOR HEAT Price: $0.39 |
| 16 |
220E0608 |
SCREW PAN HEAD 6X8 Price: $2.52 |
| 17 |
92072-025 |
BAND RUBBER 40MM Price: $1.23 |
| 18 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 19 |
18057-017 |
COVER UPPER TAIL PIPE Price: $15.35 |
| 20 |
18057-018 |
COVER LOWER TAIL PIPE Price: $15.35 |
