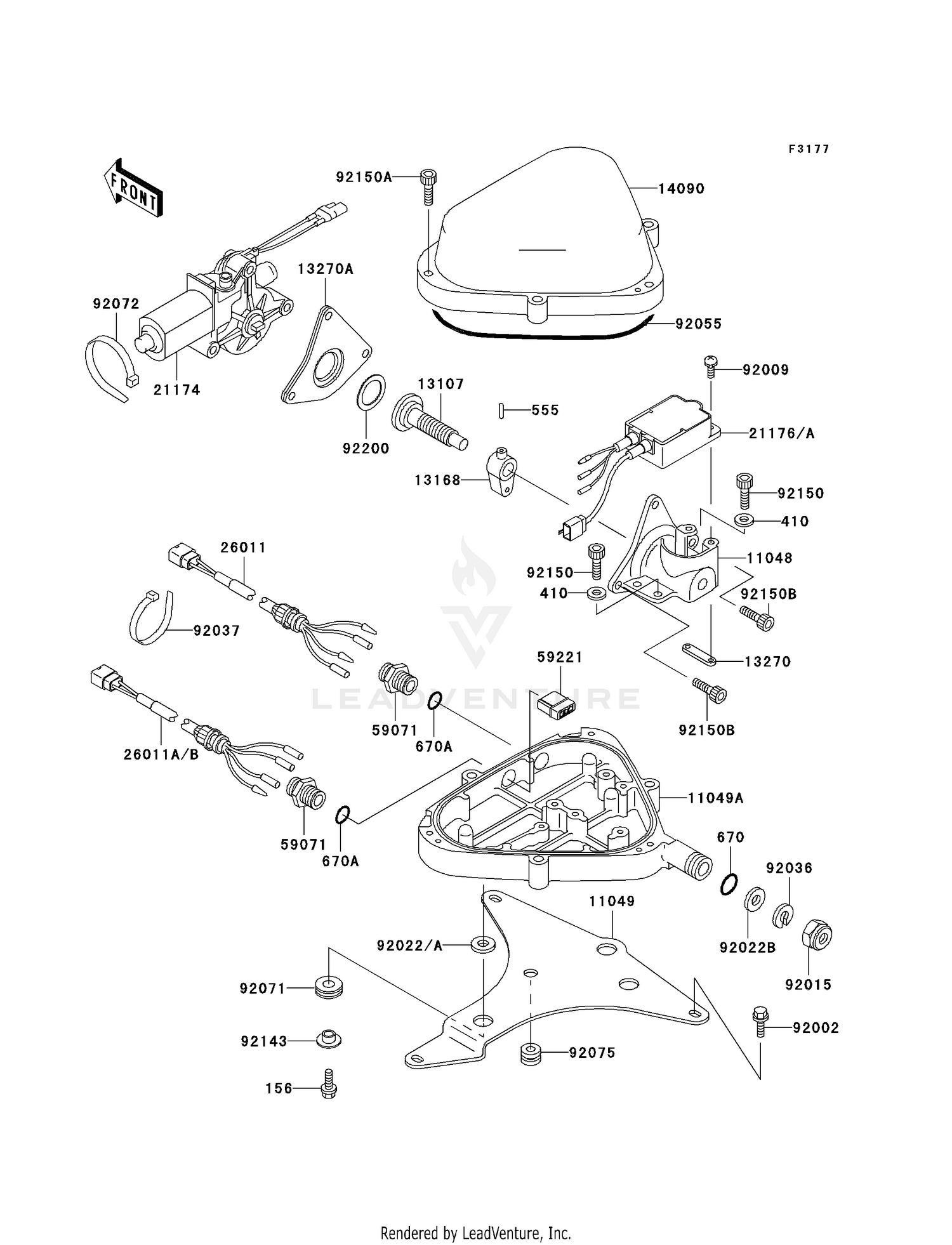

| Ref | Part Number | Description |
|---|
| 156 |
156R0622 |
BOLT-WP,6X22 Price: $4.09 |
| 410 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 555 |
555B0314 |
PIN-SPRING,3X14 Price: $4.67 |
| 670 |
670B2011 |
O RING,11MM Price: $1.28 |
| 670A |
670B2016 |
O RING,16MM Price: $1.36 |
| 11048 |
11048-3738 |
BRACKET,MOTOR MOUNT Price: $79.17 |
| 11049 |
11052-3728 |
BRACKET,TILT BOX This part replaces 11049-3712. Price: $36.83 |
| 11049A |
11049-3715 |
BRACKET,MOTOR BOX,LWR Price: $124.01 |
| 13107 |
13107-3748 |
SHAFT Price: $52.58 |
| 13168 |
13168-3730 |
LEVER,SLIDE Price: $33.43 |
| 13270 |
13270-3744 |
PLATE,TRIM SENSOR Price: $7.33 |
| 13270A |
13270-3822 |
PLATE,MOTOR MOUNT Price: $33.84 |
| 14090 |
14090-3768 |
COVER,MOTOR BOX,UPP Price: $172.03 |
| 21174 |
21174-3703 |
MOTOR-ELECTRIC Price: $607.83 |
| 21176A |
21176-3722 |
SENSOR,TRIM METER Price: $319.82 |
| 26011 |
26011-3835 |
WIRE-LEAD,TRIM SWITCH Price: $46.40 |
| 26011B |
26011-3840 |
WIRE-LEAD,TRIM METER Price: $51.63 |
| 59071 |
59071-3001 |
JOINT Price: $6.29 |
| 59221 |
59221-3709 |
CONNECTOR-CORD Price: $2.44 |
| 92002 |
92002-3728 |
BOLT,6X16 Price: $4.69 |
| 92009 |
92009-3807 |
SCREW,4X12 Price: $4.97 |
| 92015 |
92015-526 |
NUT,20MM Price: $29.72 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92022B |
92022-535 |
WASHER Price: $7.34 |
| 92036 |
92033-3737 |
RING-SNAP,7.7X17.5X3.0 This part replaces 92036-501. Price: $6.89 |
| 92037 |
92037-1173 |
CLAMP Price: $3.49 |
| 92055 |
92055-3737 |
RING-O,ID=171 Price: $13.43 |
| 92071 |
92071-3737 |
GROMMET Price: $5.54 |
| 92072 |
92072-3867 |
BAND,L=203.2 This part replaces 92072-3778. Price: $1.91 |
| 92075 |
92075-1435 |
DAMPER Price: $6.45 |
| 92143 |
92143-3749 |
COLLAR Price: $5.23 |
| 92150 |
92150-3775 |
BOLT,SOCKET,6X18 Price: $4.69 |
| 92150A |
92150-3822 |
BOLT,SOCKET,6X30 Price: $4.31 |
| 92150B |
92150-3823 |
BOLT Price: $4.40 |
