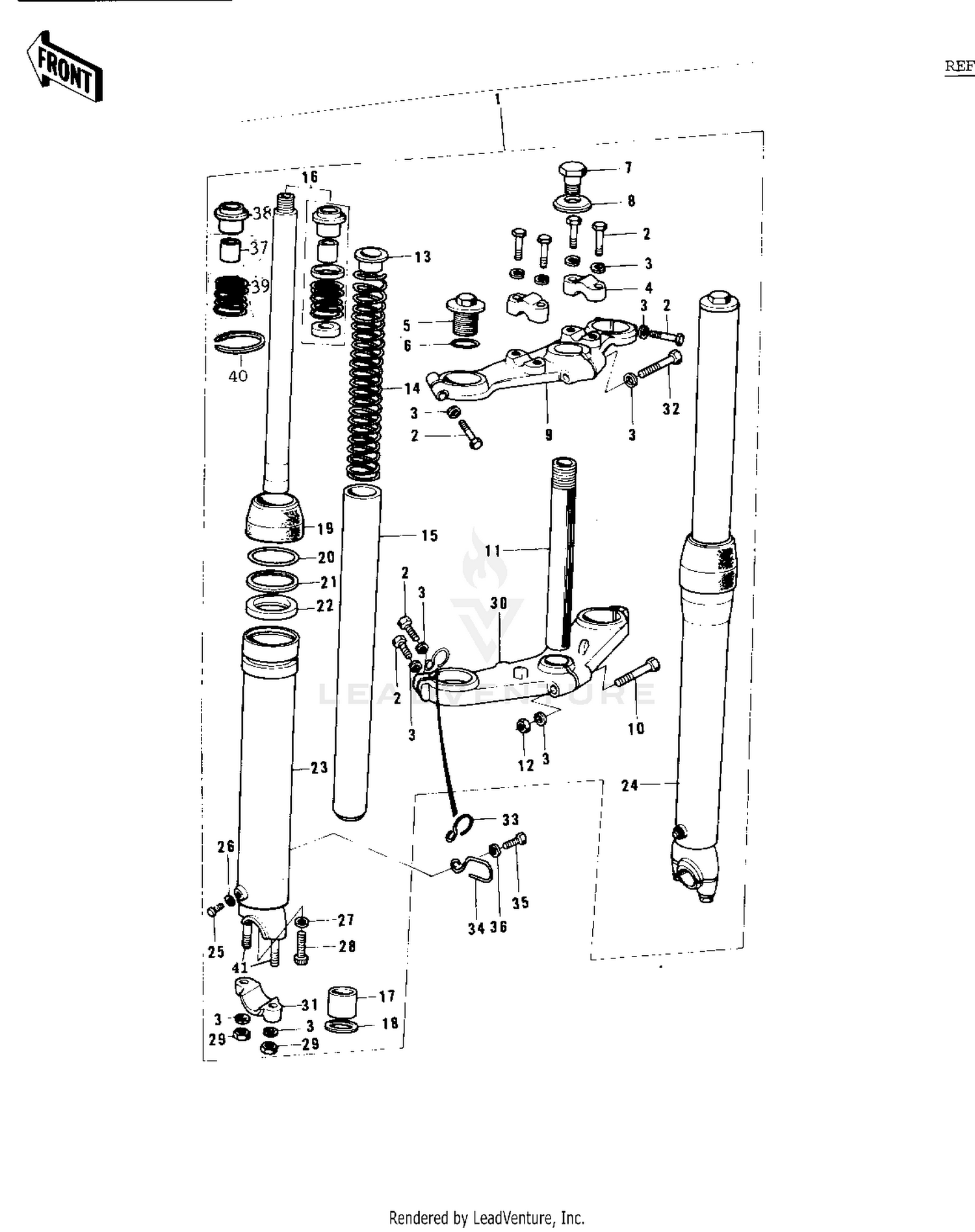

| Ref | Part Number | Description |
|---|
| 1 |
44001-130 |
FRONT FORK ASSY Price: $755.04 |
| 1 |
44001-156 |
FORK-FRONT Price: $961.65 |
| 2 |
44041-044 |
BOLT-STEERING STEM HD Price: $9.20 |
| 3 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 4 |
46012-011 |
HOLDER Price: $15.98 |
| 5 |
44041-037 |
BOLT-FORK FITTING Price: $42.23 |
| 7 |
44041-065 |
BOLT,FORK TOP Price: $27.12 |
| 8 |
44043-055 |
WASHER,FORK TOP BOLT Price: $7.16 |
| 9 |
44039-062 |
HEAD,STEERING STEM Price: $142.91 |
| 10 |
44041-066 |
BOLT,HEX HEAD Price: $7.34 |
| 11 |
44052-008 |
SHAFT,STEERING STEM Price: $117.26 |
| 12 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 13 |
44028-031 |
GUIDE,FORK SPRING Price: $4.21 |
| 14 |
44026-052 |
SPRING,FORK Price: $24.56 |
| 15 |
44013-046 |
TUBE,FORK INNER Price: $214.73 |
| 16 |
44022-017 |
CYLINDER-FORK Price: $84.74 |
| 17 |
44018-008 |
PISTON,FORK Price: $14.36 |
| 18 |
44044-018 |
CIRCLIP,FORK Price: $4.03 |
| 19 |
44010-025 |
DUST SHIELD,FORK Price: $11.64 |
| 20 |
92033-1100 |
RING-SNAP,FORK OIL Price: $14.94 |
| 21 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 22 |
92049-1216 |
SEAL-OIL,FORK OUTER P Price: $23.21 |
| 23 |
44005-054 |
TUBE,LH,FORK OUTER Price: $175.79 |
| 24 |
44006-052 |
TUBE,RH,FORK OUTER Price: $134.16 |
| 25 |
44041-062 |
SCREW Price: $3.64 |
| 26 |
44045-045 |
GASKET Price: $2.12 |
| 27 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 28 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 29 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 30 |
44038-008 |
STEM,STEERING Price: $260.07 |
| 31 |
44063-008 |
HOLDER,FRONT AXLE Price: $21.78 |
| 32 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 33 |
92037-126 |
CLAMP,CABLE Price: $3.12 |
| 34 |
92037-127 |
CLAMP,CABLE Price: $3.85 |
| 35 |
220AA0612 |
SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19 |
| 36 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 40 |
44025-004 |
RING,FORK PISTON Price: $3.84 |
