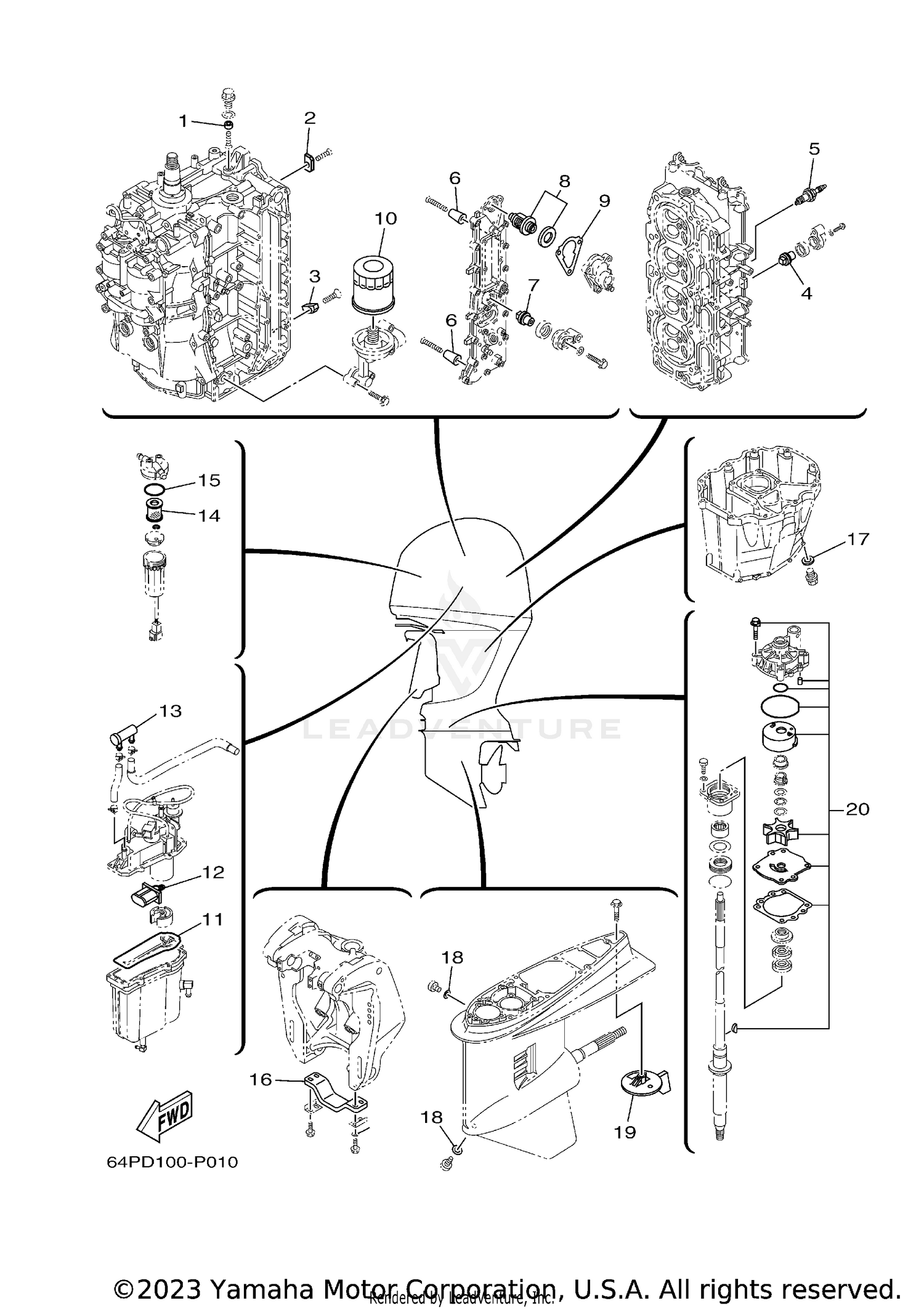

SCHEDULED SERVICE PARTS
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63P-11325-21-00 | ANODE Price: $10.55 |
| 2 | 63P-11325-11-00 | ANODE Price: $10.55 |
| 3 | 63P-11325-01-00 | ANODE Price: $10.55 |
| 5 | LFR-5A110-00-00 | PLUG, SPARK (NGK LFR5A-11) Price: $12.50 |
| 6 | 68T-11325-00-00 | ANODE Price: $11.50 |
| 8 | 67F-12411-01-00 | THERMOSTAT Price: $45.50 |
| 9 | 63P-12414-00-00 | GASKET, COVER Price: $8.65 |
| 10 | 69J-13440-05-00 | ELEMENT ASSY, OIL CLEANER This part replaces 69J-13440-04-00. Price: $31.05 |
| 11 | 63P-14984-00-00 | GASKET, FLOAT CHAMBER Price: $23.95 |
| 12 | 63P-13915-00-00 | FILTER Price: $58.45 |
| 13 | 69J-24501-10-00 | FILTER, FUEL Price: $37.45 |
| 14 | 6P3-WS24A-02-00 | ELEMENT, FILTER (WITH TAG) This part replaces 6P3-24563-02-00. Price: $25.35 |
| 15 | 6P3-24564-00-00 | GASKET Price: $11.35 |
| 16 | 6G5-45251-02-00 | ANODE Price: $29.40 |
| 17 | 90430-14M09-00 | GASKET Price: $2.55 |
| 18 | 90430-08003-00 | GASKET Price: $1.55 |
| 19 | 6K1-45371-02-00 | TAB, TRIM Price: $56.60 |
