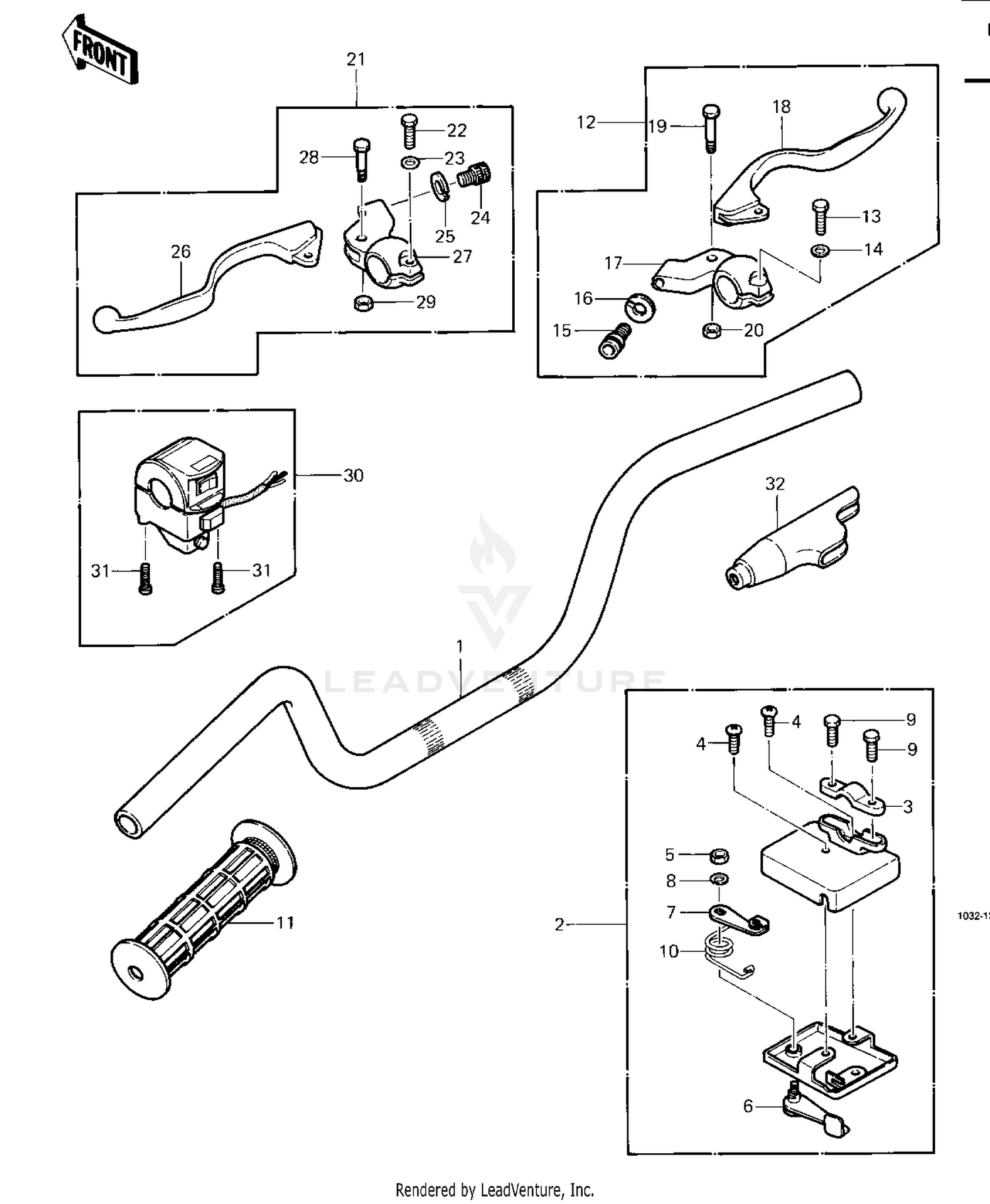

| Ref | Part Number | Description |
|---|
| 1 |
46003-4004 |
HANDLEBAR Price: $85.51 |
| 2 |
39074-4001 |
LEVER-ASSY-THROTTLE Price: $89.19 |
| 3 |
13091-4002 |
HOLDER,THROTTLE LEVER Price: $21.63 |
| 4 |
220AA0610 |
SCREW-PAN-CROS,6X10 This part replaces 220B0610. Price: $3.23 |
| 5 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 6 |
39075-4001 |
LEVER THROTTLE OUTER Price: $24.16 |
| 7 |
39075-4002 |
LEVER THROTTLE INNER Price: $6.23 |
| 8 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 9 |
92001-4011 |
BOLT HEX HEAD Price: $2.32 |
| 10 |
92081-4007 |
SPRING RETURN Price: $5.26 |
| 11 |
46075-1056 |
GRIP This part replaces 46075-4003. Price: $25.83 |
| 12 |
46076-1010 |
LEVER ASSY,FRONT BRK Price: $69.07 |
| 13 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 14 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 15 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 16 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 17 |
46060-011-21 |
HOLDER,FR LEVER,F.BLK Price: $34.11 |
| 18 |
46092-1014 |
LEVER,FRONT BRAKE Price: $24.60 |
| 19 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 20 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
| 21 |
46076-1011 |
LEVER ASSY,CLUTCH Price: $55.45 |
| 22 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 23 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 24 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 25 |
46056-005 |
NUT,CABLE ADJUST LOCK,8MM Price: $8.86 |
| 26 |
46092-1015 |
LEVER,CLUTCH Price: $24.60 |
| 27 |
46094-015-21 |
HOLDER,CL LEVER,F.BLK Price: $37.74 |
| 28 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 29 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
| 30 |
46091-1393 |
HOUSING-ASSY-CONTROL, Price: $167.35 |
| 31 |
220AA0535 |
SCREW-PAN-CROS This part replaces 220B0535. Price: $3.70 |
