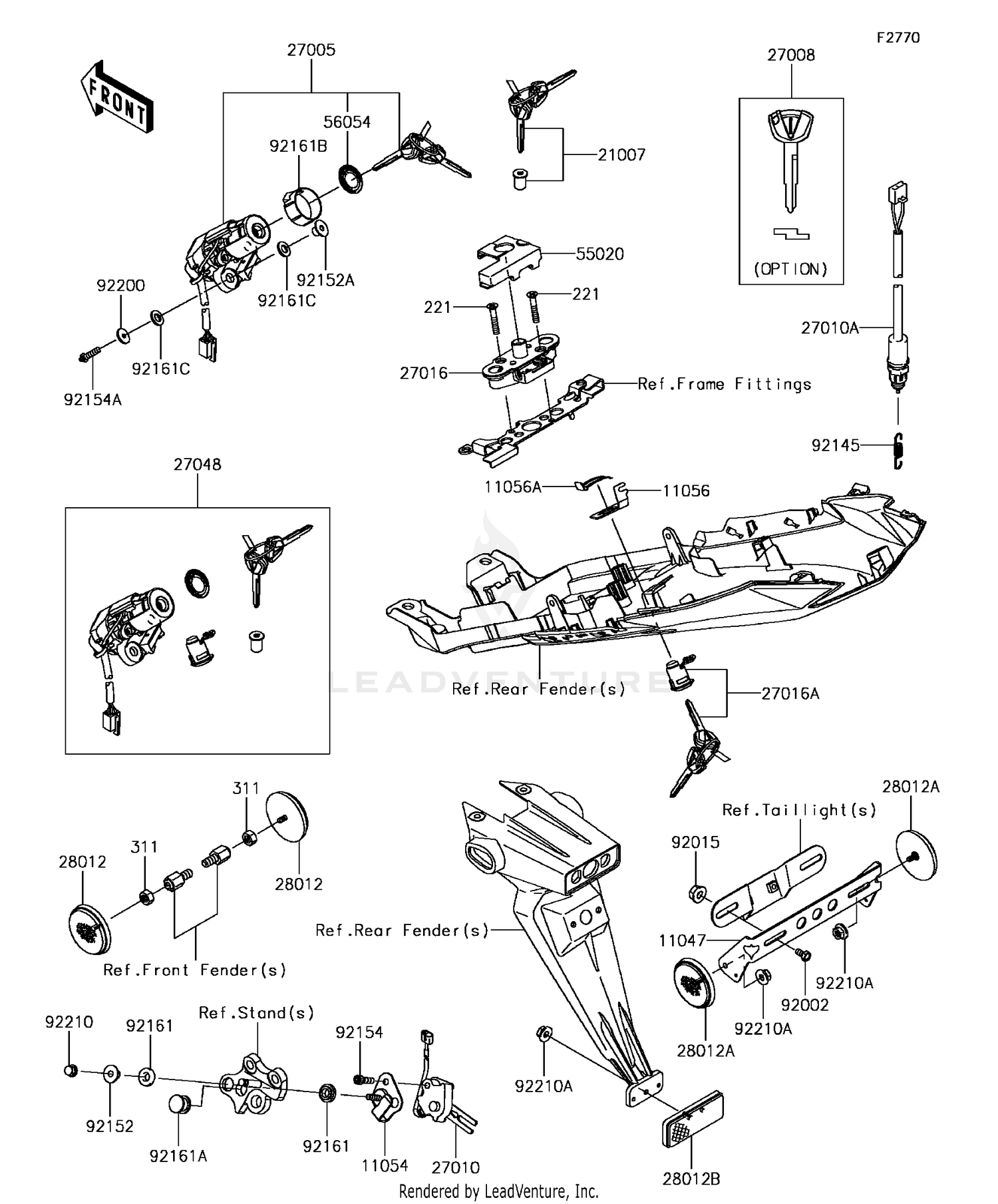

| Ref | Part Number | Description |
|---|
| 221 |
221AB0635 |
SCREW-CSK-CROS,6X35 Price: $1.28 |
| 311 |
311AB0500 |
NUT-HEX,5MM Price: $0.43 |
| 11047 |
11047-1470 |
BRACKET,REFLECTOR Price: $29.08 |
| 11054 |
11054-1904 |
BRACKET,SIDE STAND SWITCH Price: $11.28 |
| 11056 |
11056-0237 |
BRACKET Price: $4.41 |
| 11056A |
11056-0238 |
BRACKET,CLASP Price: $6.00 |
| 21007 |
21007-5068 |
ROTOR,LOCK,TANK CAP Price: $88.32 |
| 27005 |
27005-0568 |
SWITCH-ASSY-IGNITION Price: $174.88 |
| 27010 |
27010-0741 |
SWITCH,SIDE STAND Price: $115.66 |
| 27010A |
27010-1479 |
SWITCH,REAR BRAKE Price: $30.06 |
| 27016 |
27016-0035 |
LOCK-ASSY,SEAT STRIKER Price: $64.16 |
| 27016A |
27016-5373 |
LOCK-ASSY,SEAT Price: $90.40 |
| 27048 |
27048-5023 |
SWITCH-ASSY Price: $401.95 |
| 28012 |
28012-0001 |
REFLECTOR-REFLEX,FR,SIDE Price: $24.14 |
| 28012A |
28012-0002 |
REFLECTOR-REFLEX Price: $24.14 |
| 28012B |
28012-1077 |
REFLECTOR-REFLEX Price: $23.25 |
| 55020 |
55020-0483 |
GUARD,SEAT STRIKER Price: $8.37 |
| 56054 |
56054-0969 |
MARK,IGNITION SWITCH Price: $10.90 |
| 92002 |
112BA0612 |
BOLT-UPSET This part replaces 92002-1132. Price: $1.49 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92145 |
92145-0724 |
SPRING,REAR BRAKE SWITCH This part replaces 92145-0091. Price: $3.35 |
| 92152 |
92152-1074 |
COLLAR Price: $6.22 |
| 92152A |
92152-1699 |
COLLAR,6.8X10X11.6 Price: $4.41 |
| 92154 |
92154-1898 |
BOLT,SOCKET,6X22 This part replaces 92154-0031. Price: $2.12 |
| 92154A |
92154-1129 |
BOLT,TORX,6X24 Price: $4.10 |
| 92161 |
92161-0117 |
DAMPER Price: $2.90 |
| 92161A |
92161-0118 |
DAMPER Price: $2.90 |
| 92161B |
92161-1506 |
DAMPER Price: $6.63 |
| 92161C |
92161-1507 |
DAMPER,10X17X3 Price: $3.02 |
| 92200 |
92200-0212 |
WASHER,6X20X1.6 Price: $3.35 |
| 92210 |
92210-0003 |
NUT,CAP,6MM Price: $0.64 |
