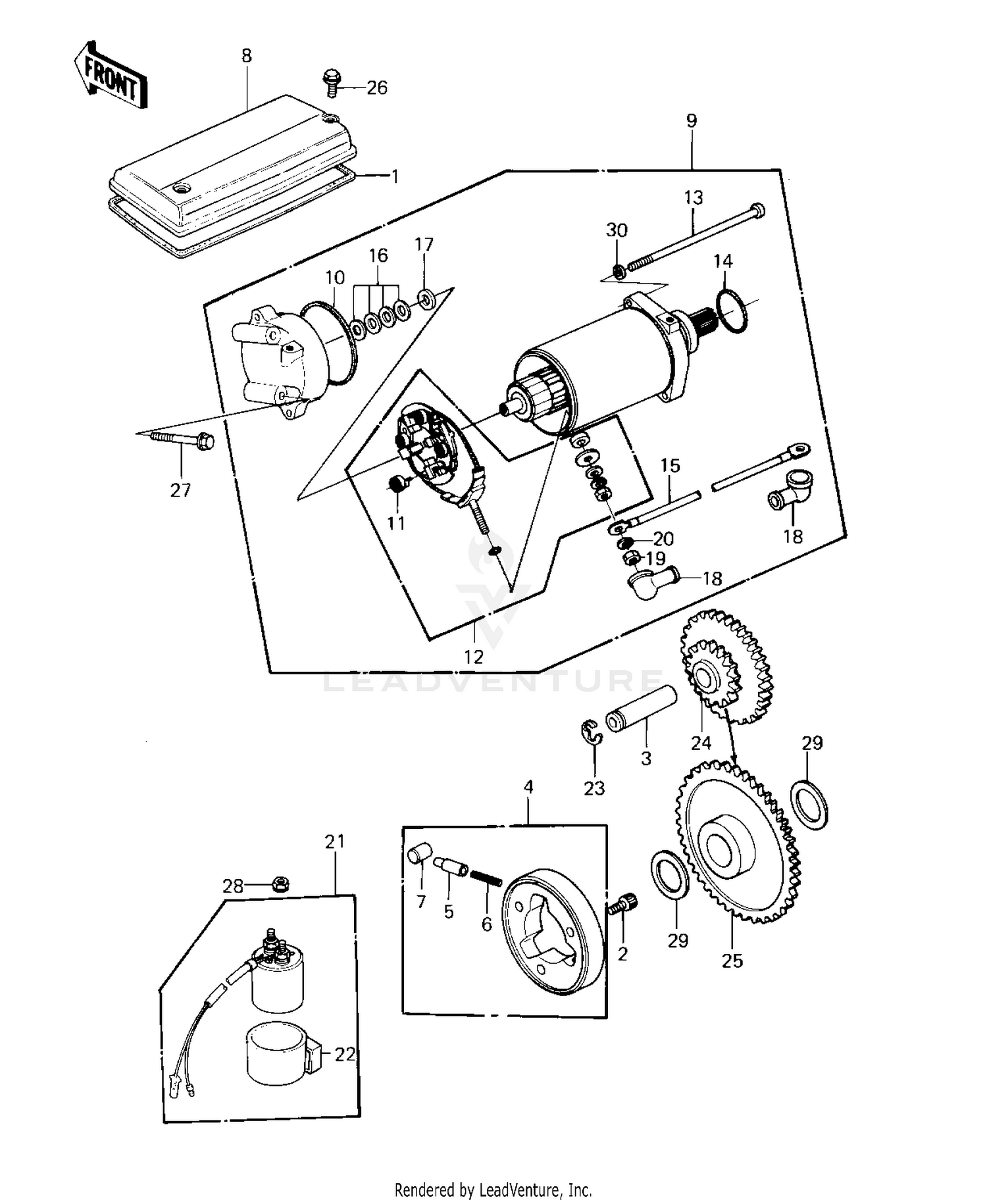

| Ref | Part Number | Description |
|---|
| 1 |
11060-1498 |
GASKET,STARTER COVER This part replaces 11009-1069. Price: $12.60 |
| 2 |
92001-1424 |
BOLT,SOCKET,8X10 Price: $5.00 |
| 3 |
13107-1006 |
SHAFT,IDLE GEAR Price: $9.30 |
| 4 |
13193-1002 |
CLUTCH-ASSY-ONEWAY Price: $116.39 |
| 5 |
92043-132 |
PIN Price: $6.22 |
| 6 |
92081-159 |
SPRING,COIL Price: $3.89 |
| 7 |
92122-006 |
ROLLER Price: $6.22 |
| 8 |
14025-1050 |
COVER,STARTER MOTOR Price: $20.41 |
| 9 |
21163-1237 |
STARTER-ELECTRIC This part replaces 21163-1031. Price: $509.52 |
| 11 |
21040-1002 |
SPRING,CARBON BRUSH Price: $11.17 |
| 12 |
21039-1005 |
BRUSH SET,CARBON Price: $182.98 |
| 13 |
21015-005 |
SCREW,PAN HEAD,6X110 Price: $9.81 |
| 14 |
92055-1276 |
RING-O This part replaces 21027-004. Price: $9.91 |
| 15 |
26011-1073 |
WIRE,STARTER MOTOR Price: $54.86 |
| 16 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 17 |
92022-1132 |
WASHER,9.1X18X0.8 Price: $6.22 |
| 18 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 19 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 20 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 21 |
21164-005 |
SWITCH ASSY,MAGNETIC Price: $159.50 |
| 22 |
92161-1722 |
DAMPER,MAGNETIC SWITCH This part replaces 21064-002. Price: $19.64 |
| 23 |
482K0200 |
CIRCLIP 12MM Price: $1.63 |
| 24 |
59051-1011 |
GEAR,STARTER IDLE Price: $124.92 |
| 25 |
16085-1030 |
GEAR,ONEWAY CLUTCH Price: $129.22 |
| 26 |
92001-1151 |
BOLT,6X10 Price: $5.01 |
| 27 |
130BA0655 |
BOLT,FLANGED,6X55 This part replaces 92003-110. Price: $4.99 |
| 28 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 29 |
92026-1025 |
SPACER,25X36X3.2 Price: $6.16 |
