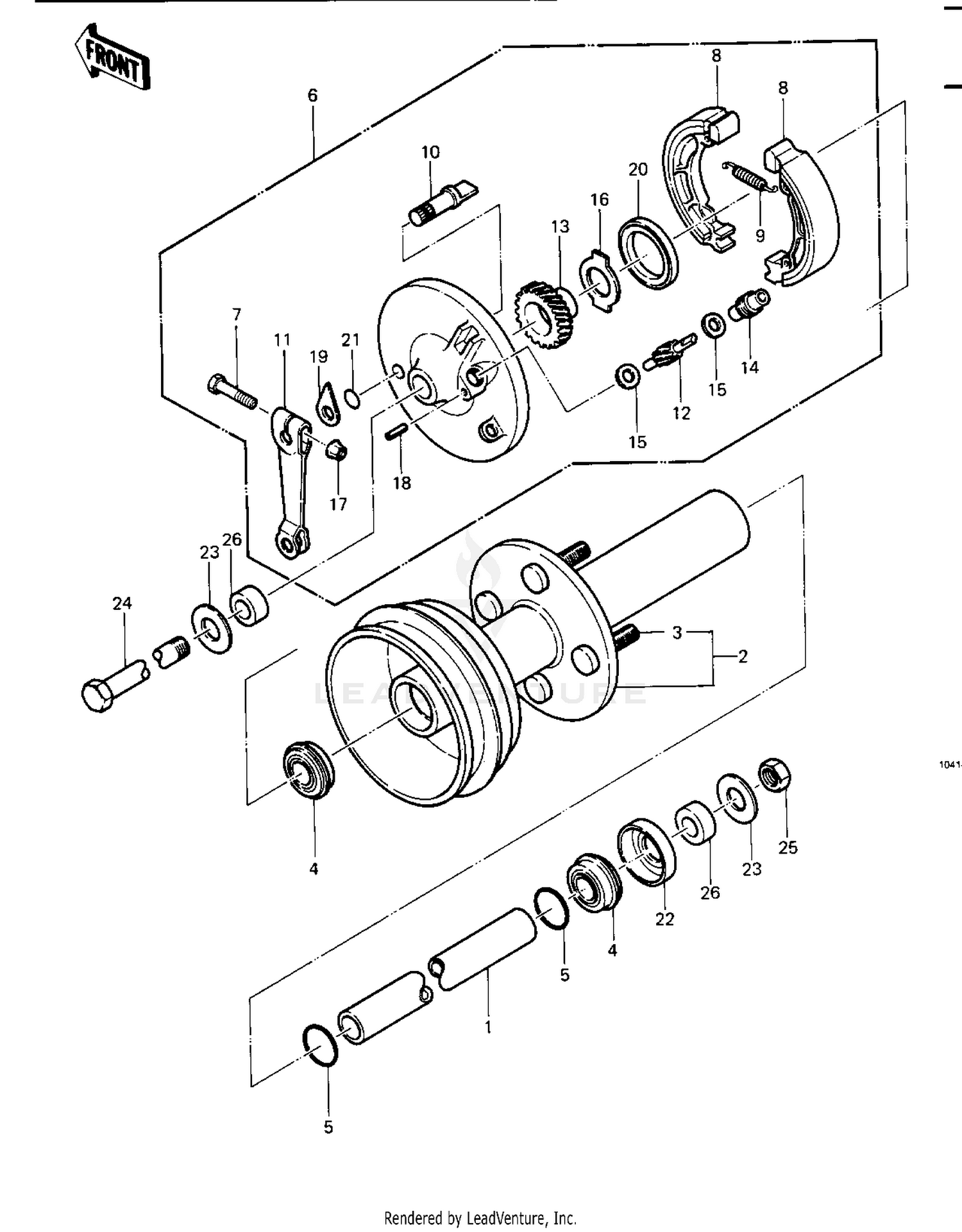

| Ref | Part Number | Description |
|---|
| 1 |
32032-4109 |
PIPE,SPACER Price: $9.69 |
| 2 |
41038-4011 |
DRUM ASSY FRONT Price: $66.00 |
| 3 |
92001-4006 |
BOLT,LUG Price: $2.18 |
| 4 |
92045-4005 |
BEARING BALL HUB-ASSY Price: $26.48 |
| 6 |
41035-1165 |
PANEL-ASSY-BRAKE,FR Price: $228.54 |
| 7 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 8 |
41048-1085 |
SHOE-BRAKE Price: $22.53 |
| 9 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 10 |
41050-018 |
CAM SHAFT-FRONT BRAKE Price: $23.50 |
| 11 |
41053-005 |
LEVER FRONT BRAKE CAM Price: $15.47 |
| 12 |
41060-014 |
PINION-SPEEDOMETER Price: $15.76 |
| 13 |
41060-4001 |
GEAR-METER SCREW Price: $34.19 |
| 14 |
41062-005 |
BUSH,SPEEDMETER CABLE Price: $19.48 |
| 15 |
41063-001 |
WASHER,5.1X9X0.4 Price: $4.69 |
| 16 |
41064-4001 |
RECEIVER-SPEEDOMETER Price: $8.85 |
| 17 |
41072-007 |
NUT,6MM Price: $3.92 |
| 18 |
41082-001 |
PIN,SPRING Price: $3.92 |
| 19 |
41085-013 |
INDICATOR,FR BK SHOE Price: $14.51 |
| 20 |
92050-002 |
OIL SEAL BRAKE PANEL Price: $14.64 |
| 22 |
14022-4003 |
CAP-BEARING Price: $7.68 |
| 23 |
410B1600 |
W-PLAIN-S,16MM Price: $0.74 |
| 24 |
41068-4003 |
AXLE,FRONT Price: $75.32 |
| 25 |
92015-1122 |
NUT,LOCK 14M/M Price: $7.34 |
