| Ref | Part Number | Description |
|---|
| 10 |
504153718 |
Chaincase Ass'y Price: $349.99 |
| 10a |
861805514 |
Kit Plate Ass'y Price: $78.99 |
| 10b |
233261434 |
Flange Elastic Nut M6 Price: $4.49 |
| 20 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 Price: $0.72 |
| 30 |
293150149 |
Collar Huck Magna-Grip 6.4 Price: $0.48 |
| 60 |
504082900 |
Washer Price: $2.69 |
| 70 |
250000740 |
Torx Screw M8 X 20, Scotch Grip Price: $2.59 |
| 80 |
233261434 |
Flange Elastic Nut M6 Price: $4.49 |
| 100 |
293200168 |
Oil Seal Price: $14.99 |
| 110 |
293350115 |
Ball Bearing Price: $12.11 |
| 120 |
504152576 |
Circlip Price: $10.99 |
| 130 |
504152628 |
Shim Price: $11.49 |
| 140 |
504153911 |
Sprocket 23 Teeth Price: $45.99 |
| 280 |
504152784 |
Spring Washer M10 Price: $7.79 |
| 290 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip Price: $2.99 |
| 411 |
411AA0800 |
WASHER-PLAIN,8MM Price: $0.96 |
| 1100 |
293200159 |
Oil Seal Price: $16.49 |
| 1110 |
293350059 |
Ball Bearing Price: $30.99 |
| 1120 |
504152582 |
Circlip Price: $10.99 |
| 1130 |
504153995 |
Sprocket 45 Teeth Price: $154.99 |
| 1140 |
504152572 |
Circlip Price: $7.09 |
| 1150 |
293300201 |
O-Ring Price: $1.09 |
| 1160a |
504154043 |
Cap Price: $2.09 |
| 1500 |
504152631 |
Drive Chain, 108 Links Price: $159.99 |
| 1510 |
414575600 |
Hair Pin Price: $1.89 |
| 1520 |
504153760 |
Adjustment Screw Price: $25.99 |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. Price: $8.09 |
| 1545 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. Price: $8.09 |
| 1550 |
293300202 |
O-Ring Price: $1.09 |
| 1600 |
504153559 |
Tensioner Price: $18.99 |
| 1610 |
504153312 |
Slider Chain Price: $67.99 |
| 1650 |
293370105 |
Circlip Price: $2.19 |
| 1690 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 Price: $2.09 |
| 1700b |
515178223 |
Clip Connector Price: $2.09 |
| 1700c |
415130141 |
Braided Sleeve Price: $56.99 |
| 1710 |
293300214 |
O Ring Price: $13.49 |
| 1740a |
504152860 |
Cap Price: $21.99 |
| 1740b |
414580700 |
Male Connector Price: $4.19 |
| 1740c |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 2030 |
293300201 |
O-Ring Price: $1.09 |
| 2040 |
504154043 |
Cap Price: $2.09 |
| 2050 |
504152572 |
Circlip Price: $7.09 |
| 2500a |
250300028 |
Clinch Stud, M8 X 25 Price: $4.49 |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 3000b |
504153774 |
Sprocket Wheel 16 Teeth int Short Price: $47.99 |
| 3000c |
504153774 |
Sprocket Wheel 16 Teeth int Short Price: $47.99 |
| 3000d |
504153886 |
Retaining Ring Price: $21.99 |
| 3000e |
293350059 |
Ball Bearing Price: $30.99 |
| 3200a |
415129528 |
Track Guide Price: $3.39 |
| 3200b |
504152651 |
Cleat Price: $9.69 |
| 4000 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 Price: $2.09 |

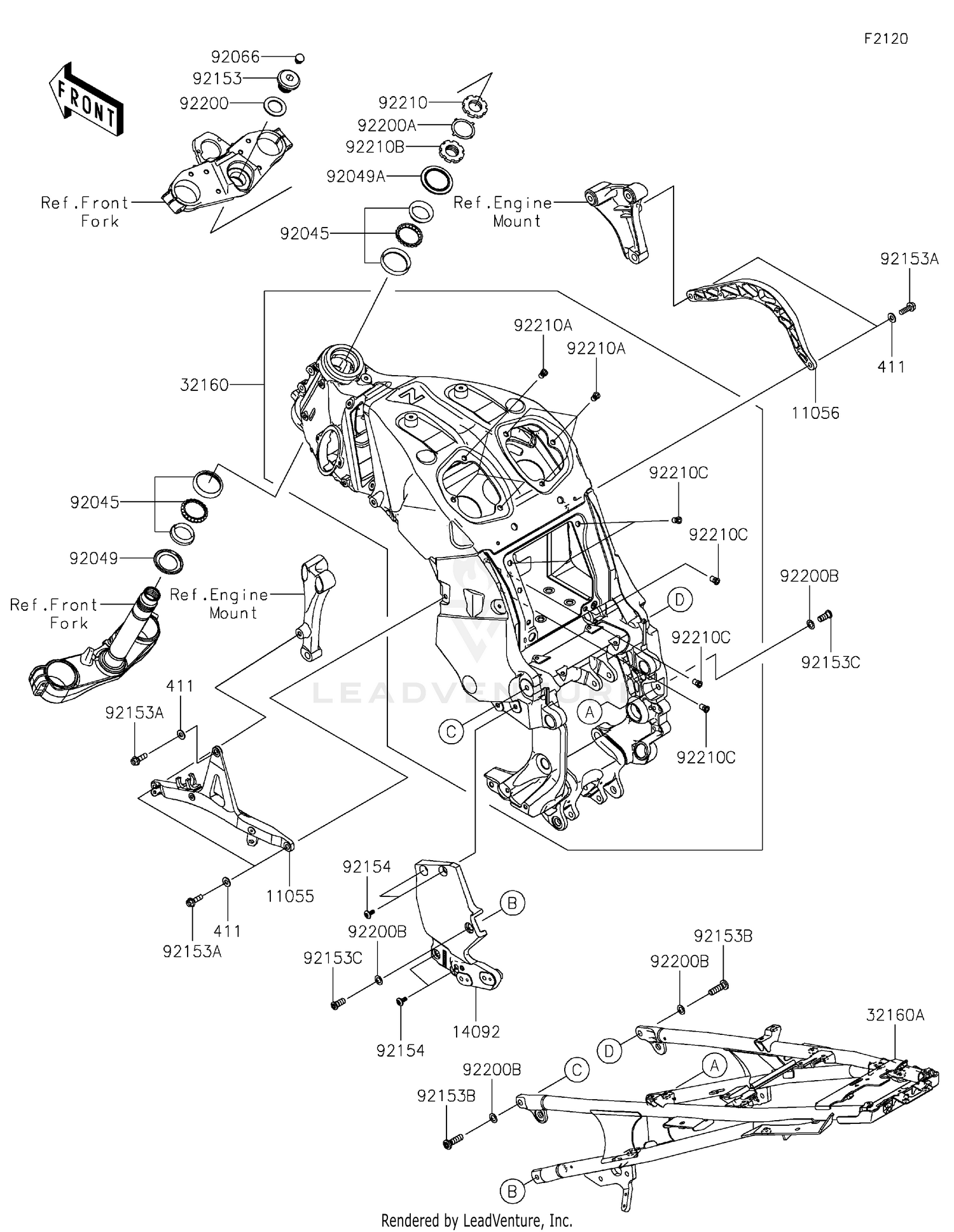

| 11055 |
11055-1755 |
BRACKET,SUB FRAME,LH Price: $113.04 |
| 11056 |
11056-0038 |
BRACKET,SUB FRAME,RH Price: $122.03 |
| 14092 |
14092-0089-18R |
COVER,FRONT FRAME SHAFT,BLACK Price: $197.73 |
| 32160 |
32160-0767 |
FRAME-COMP,FR Price: $3,213.76 |
| 32160A |
32160-0775 |
FRAME-COMP,RR Price: $999.30 |
| 92045 |
92045-1384 |
BEARING-BALL,SF07A17PX1V1 Price: $45.69 |
| 92049 |
92049-0022 |
SEAL-OIL,DS35X55X4 Price: $17.39 |
| 92049A |
92049-0742 |
SEAL-OIL,43X55.5X8.6 Price: $17.91 |
| 92066 |
92066-0071 |
PLUG Price: $3.35 |
| 92153 |
92154-3818 |
BOLT,26MM This part replaces 92153-0474. Price: $28.76 |
| 92153A |
92153-1768 |
BOLT,FLANGED,8X25 Price: $3.90 |
| 92153B |
92153-1904 |
BOLT,SOCKET,10X35 Price: $5.65 |
| 92153C |
92153-1905 |
BOLT,SOCKET,10X22 Price: $4.92 |
| 92154 |
92154-1711 |
BOLT,SOCKET8X20 Price: $1.97 |
| 92200 |
92200-0081 |
WASHER,27X42X2.3 Price: $3.74 |
| 92200A |
92200-0281 |
WASHER Price: $3.90 |
| 92200B |
92200-0324 |
WASHER,11X18X1 Price: $7.75 |
| 92210 |
92210-0095 |
NUT,35MM Price: $18.25 |
| 92210A |
92210-0324 |
NUT,POP,6MM,L=16.5 Price: $5.33 |
| 92210B |
92210-0823 |
NUT,35MM Price: $24.27 |
