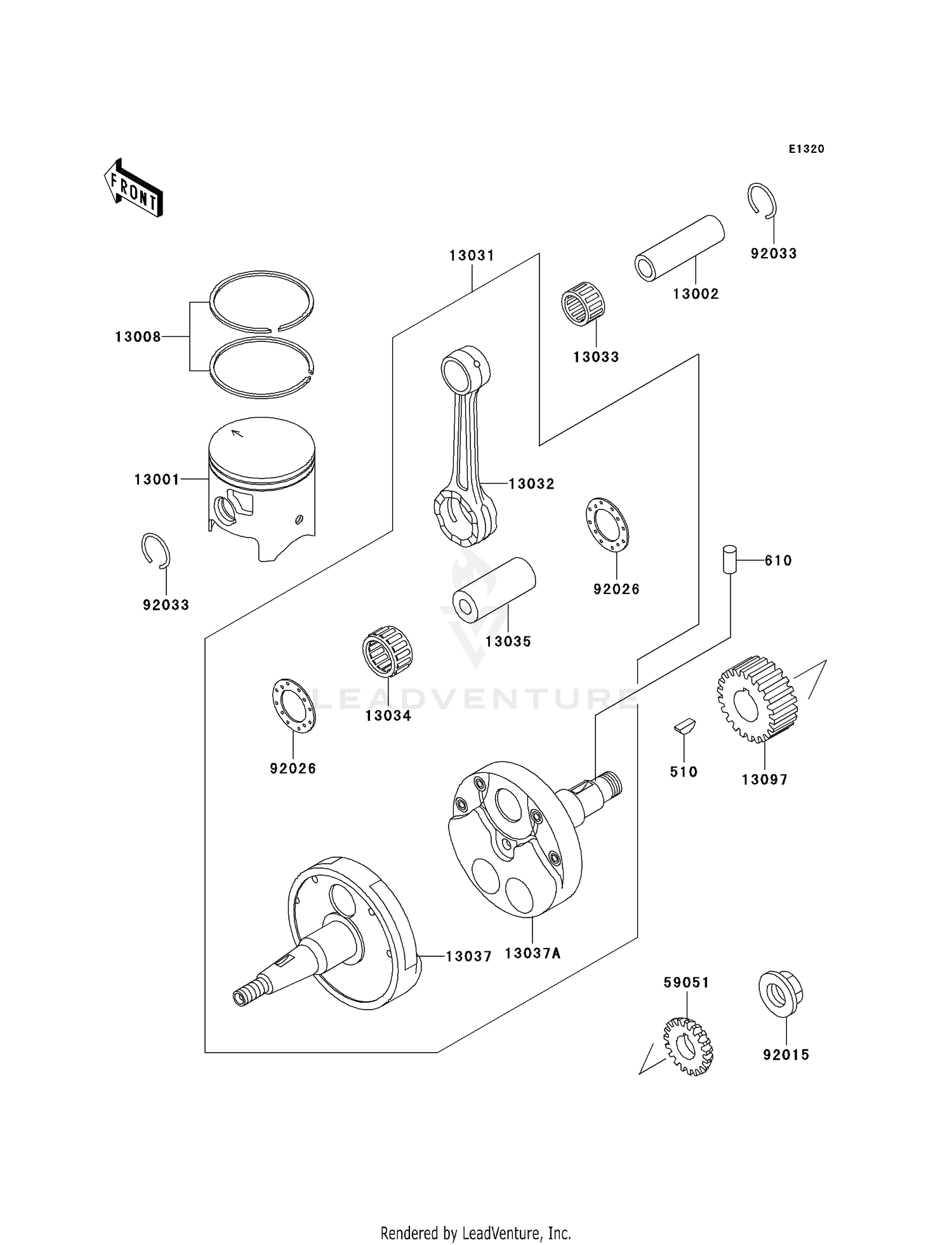

CRANKSHAFT/PISTON(S)
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 510 | 510A5100 | KEY-WOODRUFF Price: $2.70 |
| 610 | 610A0408 | ROLLER,4X8 Price: $4.31 |
| 13001 | 13001-1317 | PISTON-ENGINE Price: $158.51 |
| 13002 | 13002-1053 | PIN-PISTON Price: $22.42 |
| 13008 | 13008-1116 | RING-SET-PISTON Price: $68.29 |
| 13031 | 13031-1382 | CRANKSHAFT-COMP Price: $645.56 |
| 13032 | 13032-1210 | ROD-CONNECTING Price: $91.27 |
| 13033 | 13033-1056 | BEARING-SMALL END Price: $23.42 |
| 13034 | 13034-1081 | BEARING-BIG END Price: $71.95 |
| 13035 | 13035-1010-01 | PIN This part replaces 13035-1010. Price: $47.92 |
| 13037 | 13037-1488 | CRANKSHAFT,LH Price: $409.56 |
| 13037A | 13037-1490 | CRANKSHAFT,RH Price: $402.42 |
| 13097 | 13097-1320 | GEAR-PRIMARY SPUR,22T Price: $128.70 |
| 59051 | 59051-1207 | GEAR-SPUR,WATER PUMP Price: $33.06 |
| 92015 | 92015-1581 | NUT,16MM Price: $19.64 |
| 92026 | 92026-011 | WASHER SIDE Price: $9.89 |
