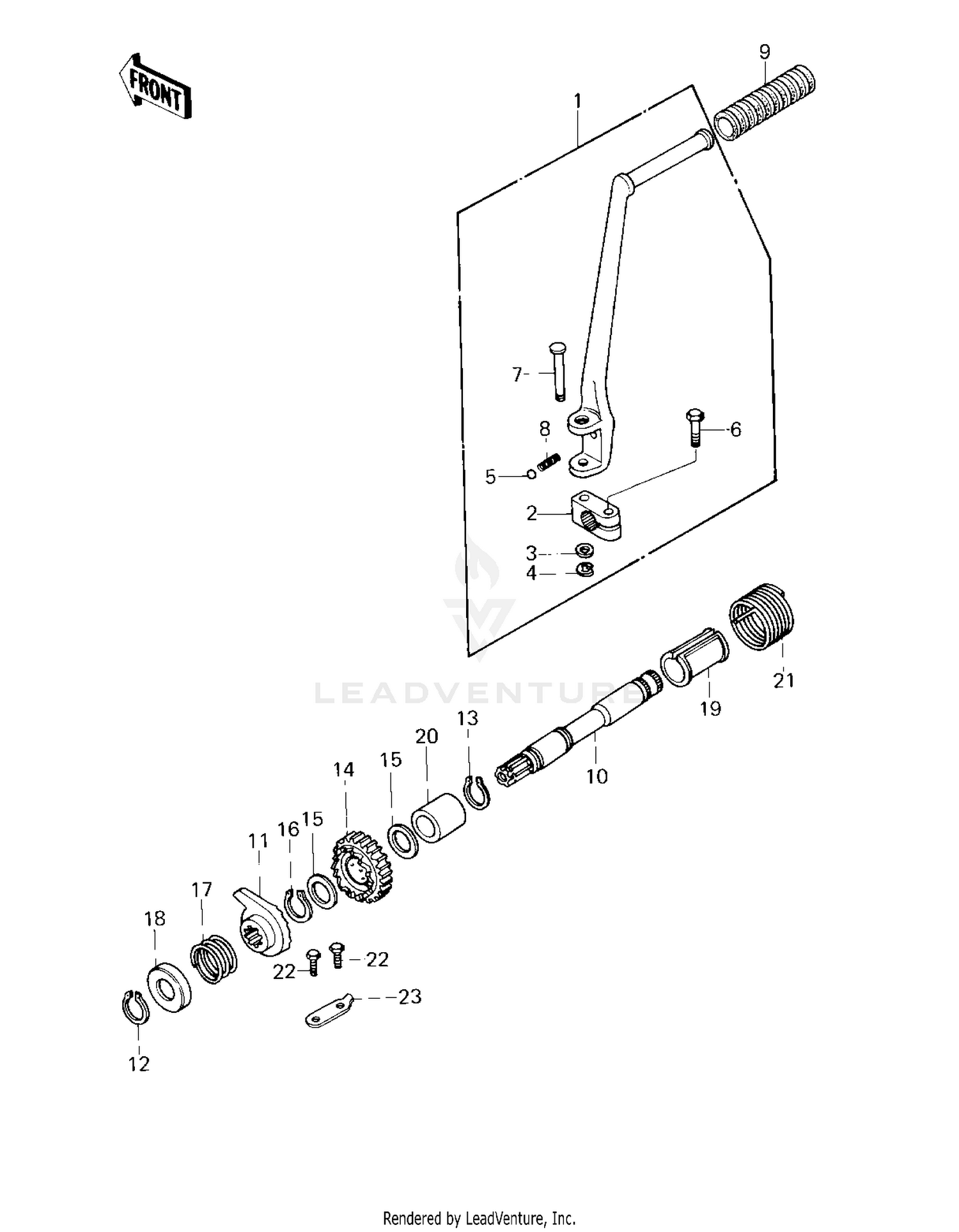

| Ref | Part Number | Description |
|---|
| 1 |
13058-061 |
PEDAL ASSY,KICK Price: $110.72 |
| 2 |
13061-010 |
BOSS-KICK PEDAL Price: $59.55 |
| 3 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 4 |
482K5000 |
CIRCLIP 5MM Price: $2.96 |
| 5 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 6 |
92001-110 |
BOLT-KICK PEDAL Price: $13.33 |
| 7 |
92043-081 |
PIN-KICK PEDAL Price: $12.51 |
| 8 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 9 |
92161-2388 |
DAMPER,KICK PEDAL This part replaces 13063-004. Price: $10.94 |
| 10 |
13066-1004 |
SHAFT,KICKSTARTER Price: $145.18 |
| 11 |
13078-011 |
RATCHET,KICK SHAFT Price: $108.77 |
| 12 |
480J1900 |
CIRCLIP-TYPE-C,19MM Price: $1.28 |
| 13 |
480J2200 |
CIRCLIP-TYPE-C,22MM Price: $5.00 |
| 15 |
92022-207 |
WASHER,PLAIN,22MM Price: $3.80 |
| 16 |
92033-025 |
RING-SNAP,20X25.5X1.2 Price: $4.96 |
| 17 |
92081-104 |
SPRING RATCHET Price: $10.23 |
| 18 |
92102-008 |
CAP,KICKSTARTER Price: $6.44 |
| 19 |
13070-1008 |
GUID,KICK SPRING Price: $10.12 |
| 20 |
92028-126 |
COLLAR,KICKSHAFT Price: $30.02 |
| 21 |
92082-004 |
SPRING,KICKSTARTER Price: $24.35 |
| 22 |
112BA0614 |
BOLT-UPSET This part replaces 112G0614. Price: $2.10 |
