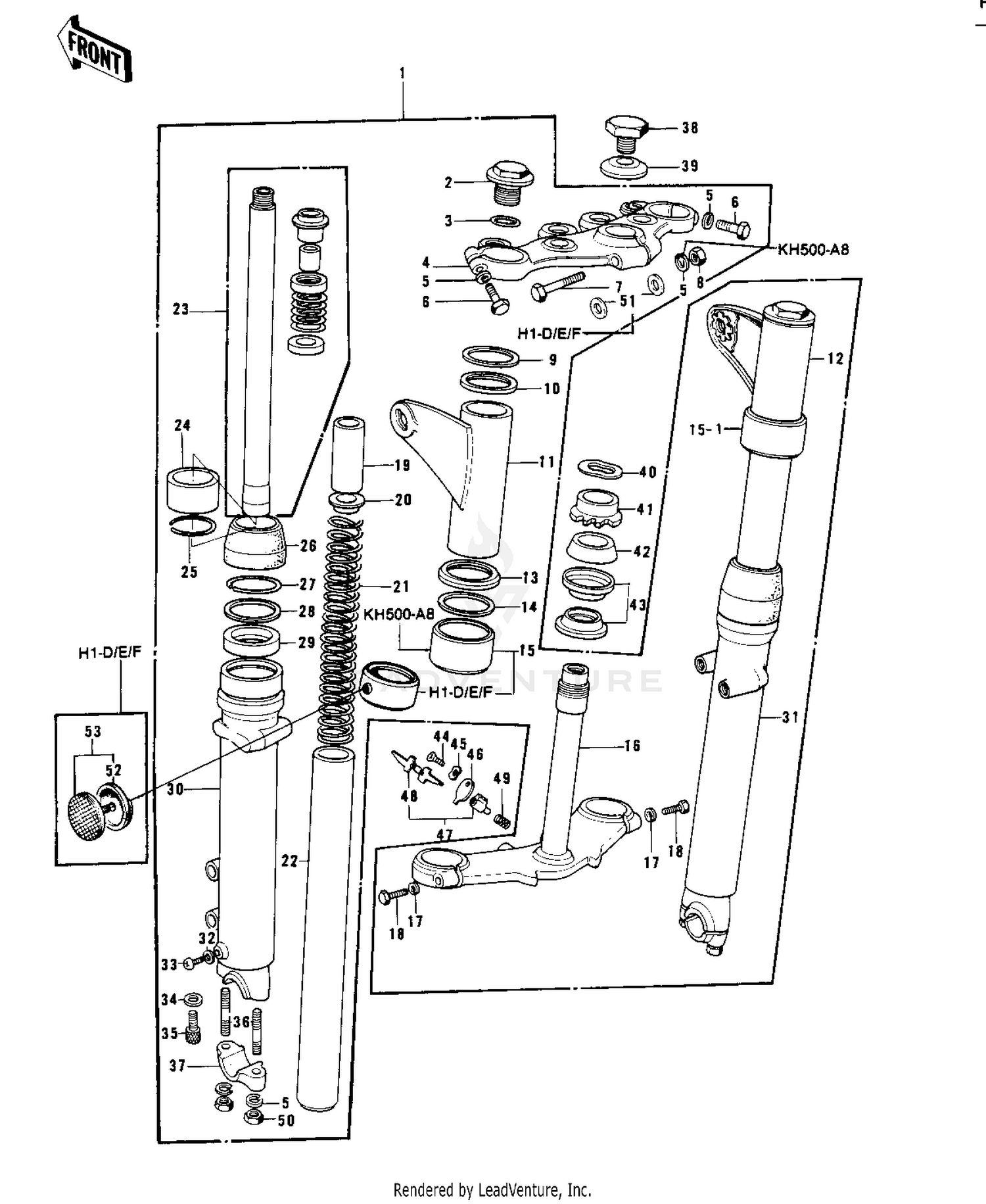

| Ref | Part Number | Description |
|---|
| 2 |
44062-003 |
BOLT-FORK TOP Price: $49.14 |
| 4 |
44039-048 |
HEAD,STEERING STEM Price: $169.39 |
| 6 |
44041-049 |
BOLT,HEX HEAD,6MM Price: $6.11 |
| 7 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 9 |
44045-041 |
GASKET,FORK COVER Price: $5.94 |
| 10 |
44043-048 |
WASHER,FORK COVER Price: $5.43 |
| 13 |
44032-008 |
WASHER-FORK COVER Price: $14.66 |
| 17 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 18 |
92003-064 |
BOLT-HEX HEAD,12X36 Price: $25.59 |
| 19 |
44028-023 |
SPACER-FORK SPRING Price: $3.79 |
| 20 |
44029-019 |
GUIDE-FORK SPRING Price: $8.55 |
| 21 |
44026-031 |
SPRING-FORK Price: $25.49 |
| 22 |
44013-032 |
TUBE-FORK INNER Price: $209.87 |
| 27 |
44044-012 |
CIRCLIP-OIL SEAL FIT Price: $29.65 |
| 32 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 33 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 34 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 35 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 36 |
92004-1009 |
STUD,8X35 Price: $6.38 |
| 38 |
92007-031 |
BOLT,STEERG STEM HEAD Price: $29.84 |
| 39 |
92200-1273 |
WASHER,16X41X4.5 This part replaces 92022-230. Price: $11.93 |
| 40 |
46100-003 |
WASHER,WAVE Price: $11.39 |
| 41 |
92090-007 |
NUT,30MM Price: $11.71 |
| 42 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 43 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 44 |
92008-007 |
SCREW,3.51MM Price: $4.11 |
| 45 |
92097-003 |
WASHER,WAVE Price: $4.50 |
| 49 |
27032-001 |
SPRING-STEERING LOCK Price: $5.25 |
