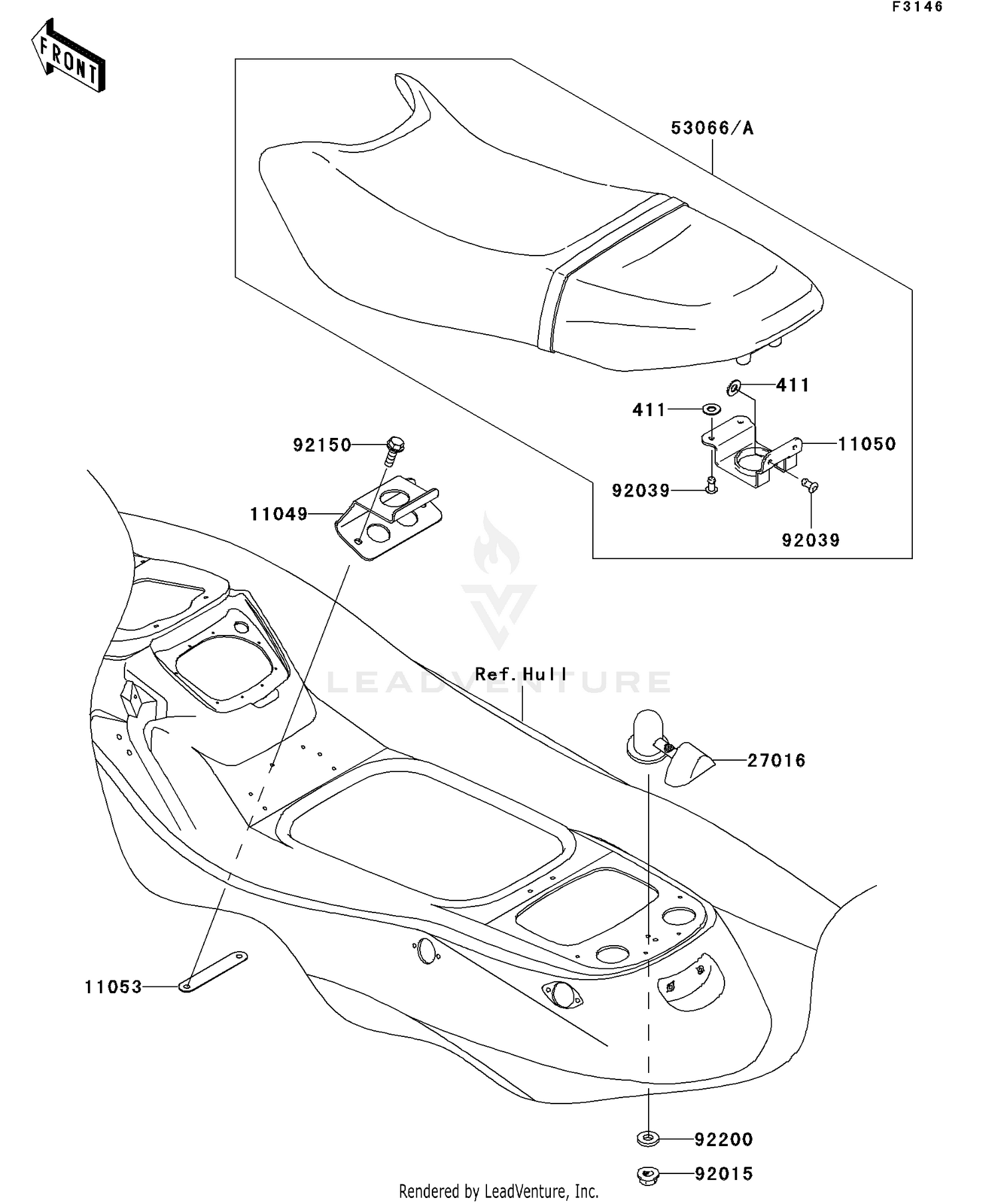

Seat
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 411 | 411S0500 | WASHER-PLAIN,5MM Price: $0.94 |
| 11049 | 11049-3735 | BRACKET,SEAT Price: $50.89 |
| 11050 | 11050-3741 | BRACKET,SEAT LOCK Price: $26.71 |
| 11053 | 11053-3785 | BRACKET Price: $13.40 |
| 27016 | 27016-3744-6Z | LOCK-ASSY,SEAT,F.BLAC Price: $122.80 |
| 53066A | 53066-3706-347 | SEAT-ASSY,BLUE/WHITE Price: $540.30 |
| 92015 | 92015-3709 | NUT,8MM Price: $5.05 |
| 92039 | 92039-3714 | RIVET Price: $0.95 |
| 92150 | 92150-3729 | BOLT,6X18 Price: $4.69 |
