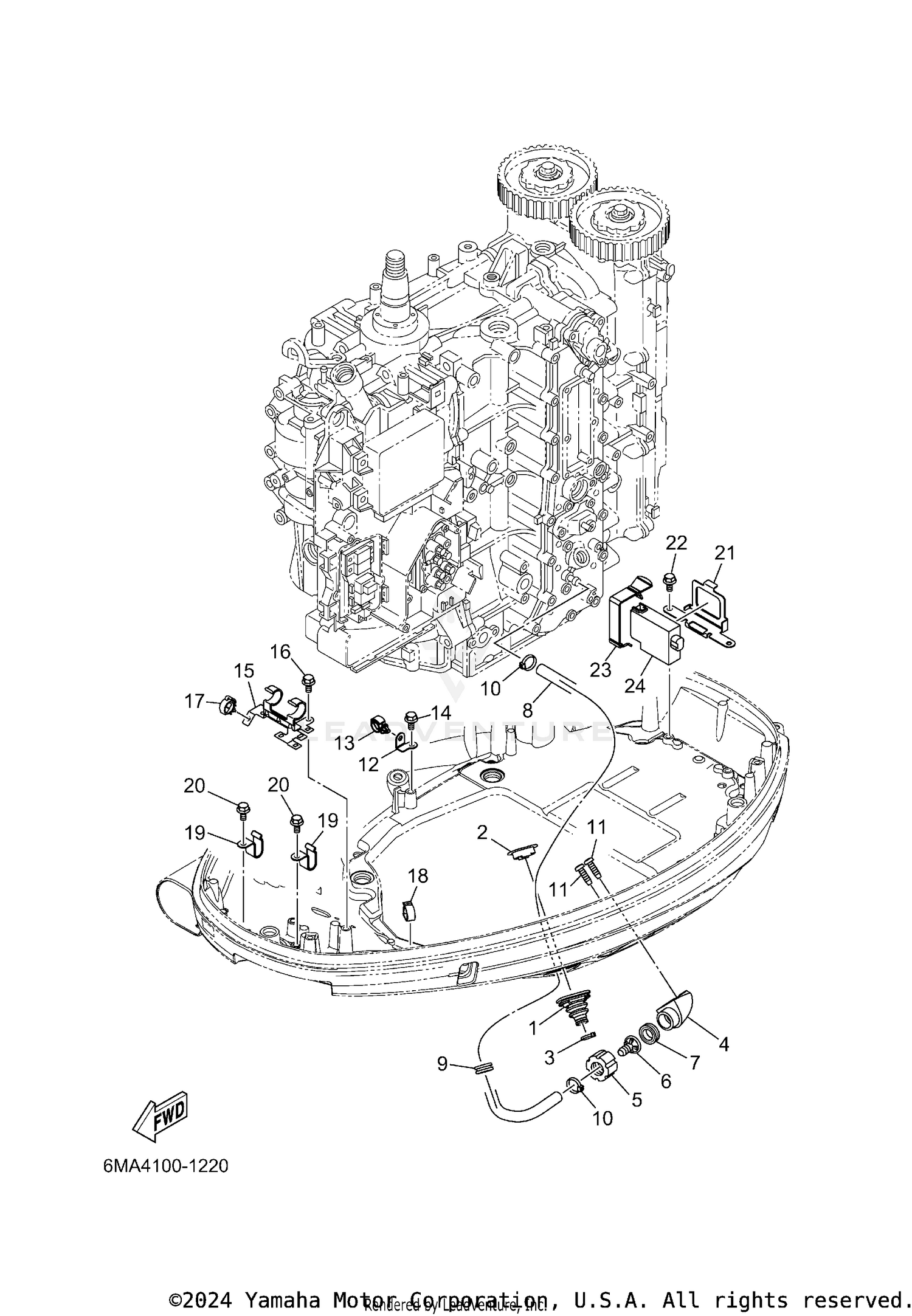

BOTTOM COWLING 3
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-42724-01-00 | GROMMET Price: $10.10 |
| 2 | 6BG-42384-00-00 | SEAL, CAP Price: $6.60 |
| 3 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 4 | 6AW-12572-00-00 | ADAPTER Price: $15.55 |
| 5 | 6R3-12581-10-00 | JOINT, HOSE 1 Price: Call Us |
| 6 | 6R3-12582-00-00 | JOINT, HOSE 2 Price: $6.40 |
| 7 | 6R3-12583-10-00 | GASKET, HOSE JOINT Price: $3.55 |
| 8 | 6MA-42541-00-00 | PIPE 1 Price: $12.45 |
| 9 | 90480-16009-00 | GROMMET Price: $6.75 |
| 10 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 11 | 97780-60520-00 | SCREW, TAPPING Price: $4.49 |
| 12 | 6BG-42743-00-00 | BRACKET Price: $7.60 |
| 13 | 90464-13249-00 | CLAMP Price: $3.55 |
| 14 | 90109-06316-00 | BOLT Price: $1.90 |
| 15 | 63P-8366G-00-00 | BRACKET 3 Price: $26.60 |
| 16 | 90109-06316-00 | BOLT Price: $1.90 |
| 17 | 90464-18246-00 | CLAMP Price: $2.44 |
| 18 | 90464-18004-00 | CLAMP Price: $4.40 |
| 19 | 90462-12013-00 | CLAMP Price: $5.05 |
| 20 | 90109-06316-00 | BOLT Price: $1.90 |
| 21 | 6LW-42766-00-00 | BRACKET 2 Price: $13.75 |
| 22 | 90109-06316-00 | BOLT Price: $1.90 |
| 23 | 6GR-82131-01-00 | BAND, BATTERY Price: $8.70 |
