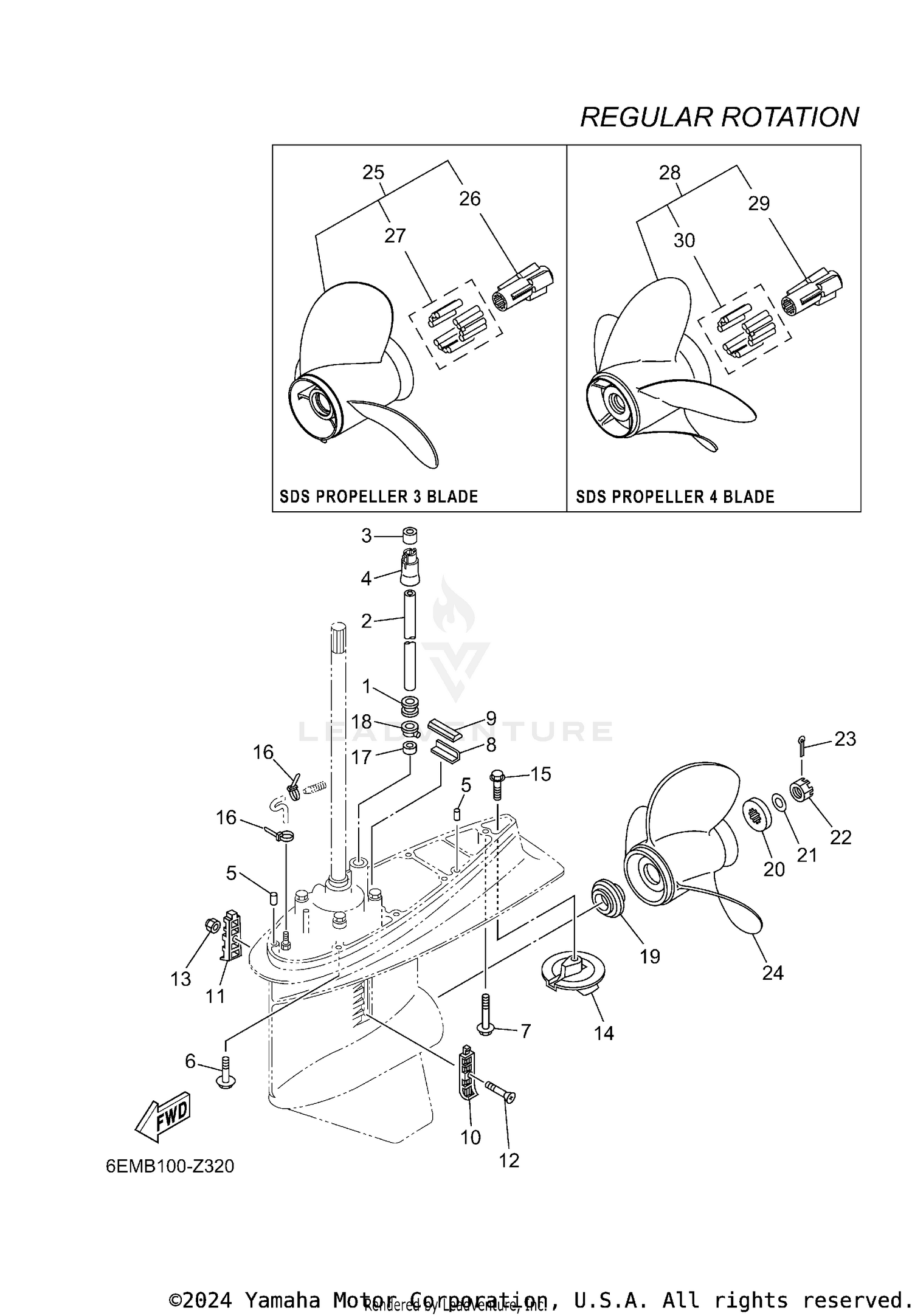

| Ref | Part Number | Description |
|---|
| 3 |
6EK-44365-01-00 |
DAMPER, WATER SEAL 1 Price: $3.55 |
| 4 |
6EK-44379-00-00 |
GUIDE, WATER TUBE Price: $5.35 |
| 5 |
93608-12M05-00 |
PIN, DOWEL Price: $10.40 |
| 6 |
97E95-10545-00 |
BOLT, HEXAGON W/W DE Price: $2.05 |
| 7 |
90119-10071-00 |
BOLT, WITH WASHER Price: $5.35 |
| 8 |
663-45376-00-00 |
GUIDE, SEAL DAMPER Price: $14.90 |
| 9 |
688-45375-00-00 |
DAMPER, SEAL Price: $13.75 |
| 10 |
688-45214-02-00 |
COVER, WATER INLET 1 Price: $14.75 |
| 11 |
688-45215-02-00 |
COVER, WATER INLET 2 Price: $14.75 |
| 12 |
90152-05M07-00 |
SCREW, COUNTERSUNK Price: $4.75 |
| 13 |
90185-05904-00 |
NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 14 |
6E5-45371-01-00 |
TAB, TRIM Price: $23.25 |
| 15 |
90105-10M00-00 |
BOLT, WASHER BASED Price: $5.20 |
| 16 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 18 |
6E5-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $3.50 |
| 19 |
63P-45987-00-00 |
SPACER 1 This part replaces 6E5-45987-01-00. Price: $56.35 |
| 20 |
688-45997-01-00 |
SPACER 2 Price: $47.75 |
| 21 |
92990-18200-00 |
WASHER 1 Price: $2.55 |
| 22 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 23 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
| 26 |
6EK-45982-00-00 |
DAMPER PROPELLER Price: $57.00 |
| 27 |
6EK-45C82-09-00 |
DAMPER,RUBBER 3PACK Price: $5.25 |
| 29 |
6EK-45982-00-00 |
DAMPER PROPELLER Price: $57.00 |
