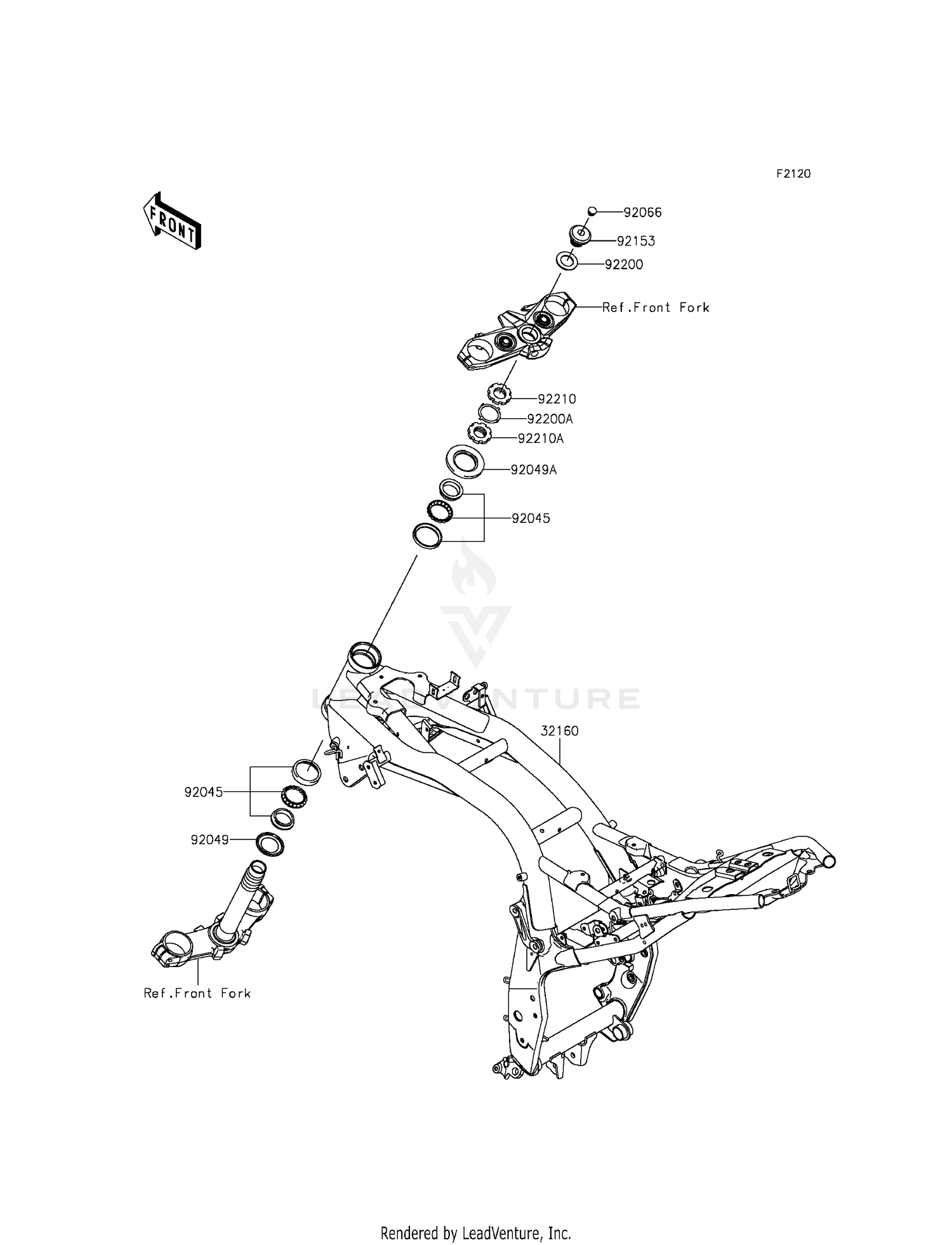

FRAME
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 32160 | 32160-0678-18R | FRAME-COMP,F.S.BLACK Price: $2,076.43 |
| 92045 | 92045-1384 | BEARING-BALL,SF07A17PX1V1 Price: $45.69 |
| 92049 | 92049-0022 | SEAL-OIL,DS35X55X4 Price: $17.39 |
| 92049A | 92049-1483 | SEAL-OIL,MX043N2 Price: $20.39 |
| 92066 | 92066-0071 | PLUG Price: $3.35 |
| 92153 | 92154-3818 | BOLT,26MM This part replaces 92153-0474. Price: $28.76 |
| 92200 | 92200-0753 | WASHER,27X42X2.3 Price: $5.33 |
| 92200A | 92200-0781 | WASHER Price: $2.32 |
| 92210 | 92210-0534 | NUT,STEERING STEM,35MM Price: $13.18 |
