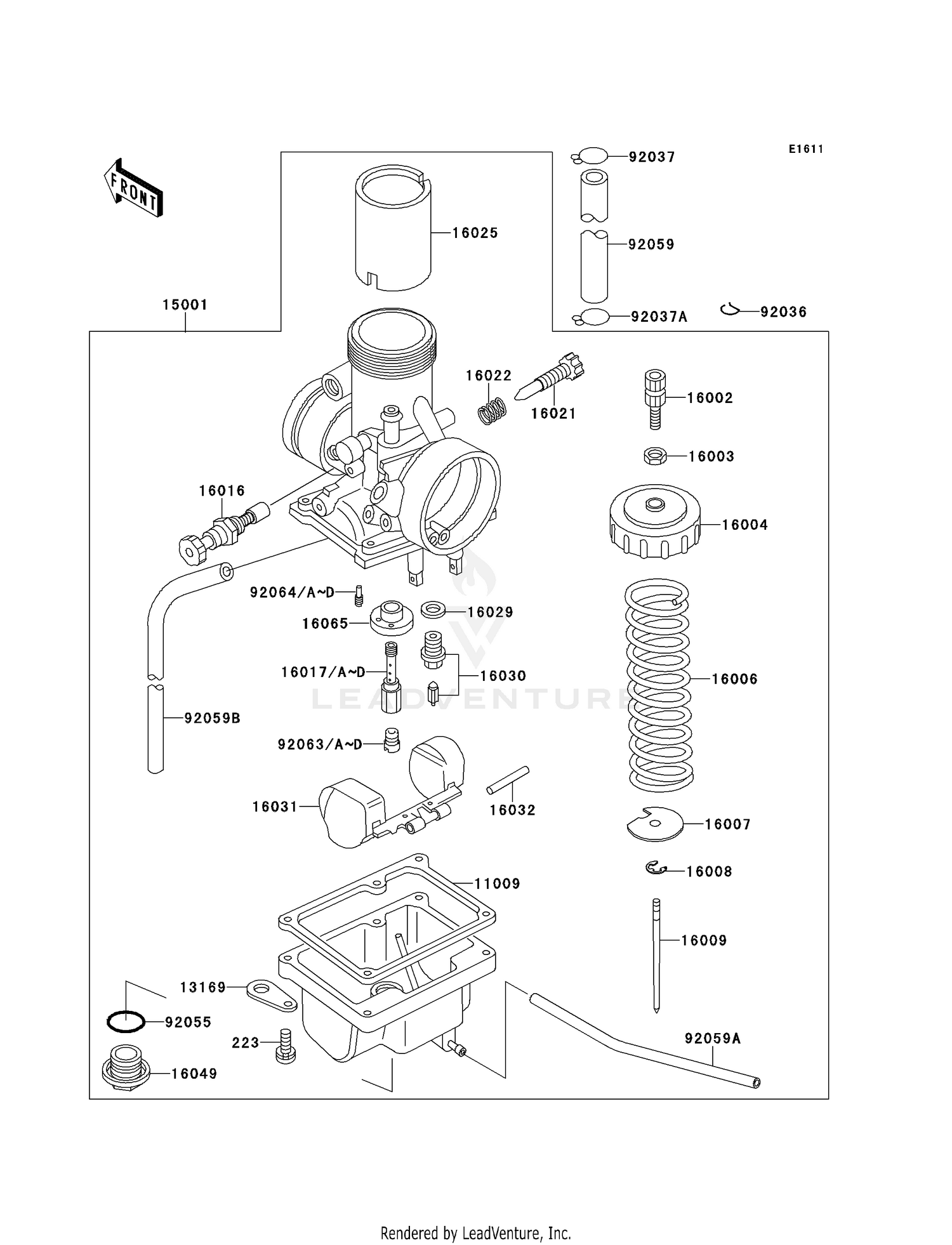

| Ref | Part Number | Description |
|---|
| 223 |
223AA0416 |
SCREW-PAN-WS-CROS,4X16 This part replaces 223B0416. Price: $0.68 |
| 11009 |
11009-1147 |
GASKET,FLOAT CHAMBER Price: $10.19 |
| 13169 |
13169-1951 |
PLATE,TUBE This part replaces 13169-1226. Price: $7.65 |
| 15001 |
15001-1384 |
CARBURETOR-ASSY Price: $279.55 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16003 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 16004 |
16004-025 |
CAP-CHAMBER Price: $33.28 |
| 16006 |
16006-023 |
SPRING,THROTTLE VALVE Price: $15.02 |
| 16007 |
16007-023 |
SEAT-SPRING,THROTTLE VALVE Price: $10.19 |
| 16008 |
16008-010 |
CIRCLIP Price: $9.21 |
| 16009 |
16009-1220 |
NEEDLE-JET,5I14-3 Price: $39.28 |
| 16016 |
16016-0008 |
PLUNGER,STARTER This part replaces 16016-1052. Price: $43.32 |
| 16017 |
16017-1215 |
JET-NEEDLE,N-8 Price: $51.49 |
| 16021 |
16021-1108 |
SCREW-THROTTLE STOP This part replaces 16021-1104. Price: $18.83 |
| 16022 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 16025 |
16025-1107 |
VALVE-THROTTLE,C.A 2. Price: $108.45 |
| 16029 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 16030 |
16030-005 |
FLOAT VALVE ASSY Price: $58.86 |
| 16031 |
16031-1005 |
FLOAT Price: $53.59 |
| 16032 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 16049 |
16049-1001 |
COVER-MAIN JET Price: $26.99 |
| 16065 |
16065-1020 |
HOLDER,JET NEEDLE Price: $18.54 |
| 92036 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037A |
92037-1712 |
CLAMP Price: $5.00 |
| 92055 |
92055-1061 |
RING-O,MAIN JET COVER Price: $8.58 |
| 92059 |
92059-1596 |
TUBE This part replaces 92059-1393. Price: $32.68 |
| 92059A |
92059-1755 |
TUBE,3X5X300 This part replaces 92059-1395. Price: $9.24 |
| 92059B |
92059-1755 |
TUBE,3X5X300 This part replaces 92059-1396. Price: $9.24 |
| 92063B |
92063-022 |
JET-MAIN,#200 Price: $14.10 |
| 92064A |
92064-1030 |
PILOT JET,#30 Price: $19.96 |
