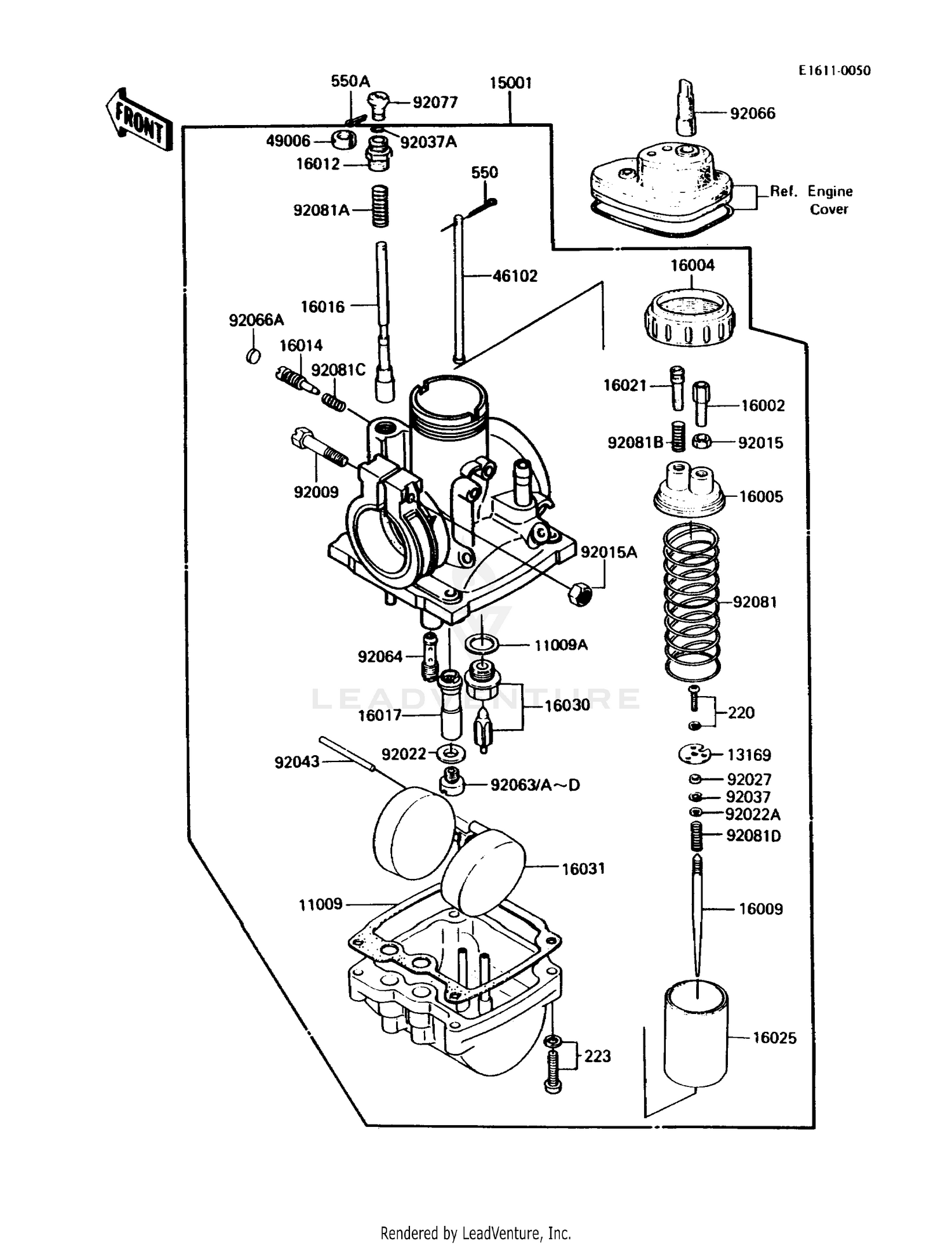

| Ref | Part Number | Description |
|---|
| 220 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
| 223 |
223AA0418 |
SCREW-PAN-WS-CROS This part replaces 223B0418. Price: $1.88 |
| 550 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 11009 |
16019-021 |
GASKET,FLOAT CHAMBER Price: $20.79 |
| 11009A |
16029-002 |
WASHER VALVE SEAT Price: $4.46 |
| 13169 |
13169-1676 |
PLATE Price: $8.98 |
| 15001 |
15001-1220 |
CARBURETOR-ASSY Price: $325.27 |
| 16002 |
16002-017 |
ADJUSTER,CABLE Price: $13.38 |
| 16004 |
16004-010 |
CAP MIXING CHAMBER Price: $20.59 |
| 16005 |
16005-005 |
TOP MIXING CHAMBER Price: $20.79 |
| 16009 |
16009-1289 |
NEEDLE-JET,4EJ39 Price: $36.44 |
| 16012 |
16012-021 |
CAP,STARTER PLUNGER Price: $15.94 |
| 16014 |
16014-002 |
SCREW PILOT AIR ADJST Price: $18.22 |
| 16016 |
16016-012 |
PLUNGER,STARTER Price: $40.35 |
| 16017 |
16017-1299 |
JET-NEEDLE,O-1 Price: $40.50 |
| 16021 |
16021-002 |
SCREW,THROTTLE STOP Price: $18.22 |
| 16025 |
16025-1013 |
VALV,THROTTLE,CA2.0 Price: $120.79 |
| 16030 |
16030-001 |
FLOAT VALVE ASSY Price: $56.16 |
| 16031 |
16031-015 |
FLOAT Price: $56.16 |
| 46102 |
16024-012 |
ROD,THROTTLE VLV STP This part replaces 16024-006. Price: $10.79 |
| 49006 |
16036-012 |
CAP,STARTER PLUNGER Price: $11.46 |
| 92009 |
16010-004 |
SCREW CLAMP Price: $5.57 |
| 92015 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 92015A |
92015-1026 |
NUT,6M/M Price: $6.63 |
| 92022 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 92022A |
92022-1024 |
WASHER,THROTTLE VALVE This part replaces 92022-1068. Price: $6.61 |
| 92027 |
92027-1103 |
RING,JET NEEDLE Price: $7.34 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
92037-1077 |
CIRCLIP Price: $5.73 |
| 92043 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 92063 |
92063-1030 |
MAIN JET, #A80 Price: $16.92 |
| 92064 |
92064-1018 |
PILOT JET,#A15 Price: $20.51 |
| 92066 |
16147-001 |
PLUG,CARBURETOR CAP Price: $5.17 |
| 92066A |
92066-1051 |
PLUG,PILOT AIR SCREW,6.9X2 Price: $5.05 |
| 92077 |
92077-022 |
KNOB,CARBURETOR Price: $10.64 |
| 92081 |
16006-013 |
SPRING THROTTLE VALVE Price: $15.02 |
| 92081A |
16013-010 |
SPRING,STARTER PLUNGR Price: $5.68 |
| 92081B |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 92081C |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 92081D |
92081-1072 |
SPRING,JET NEEDLE Price: $5.54 |
