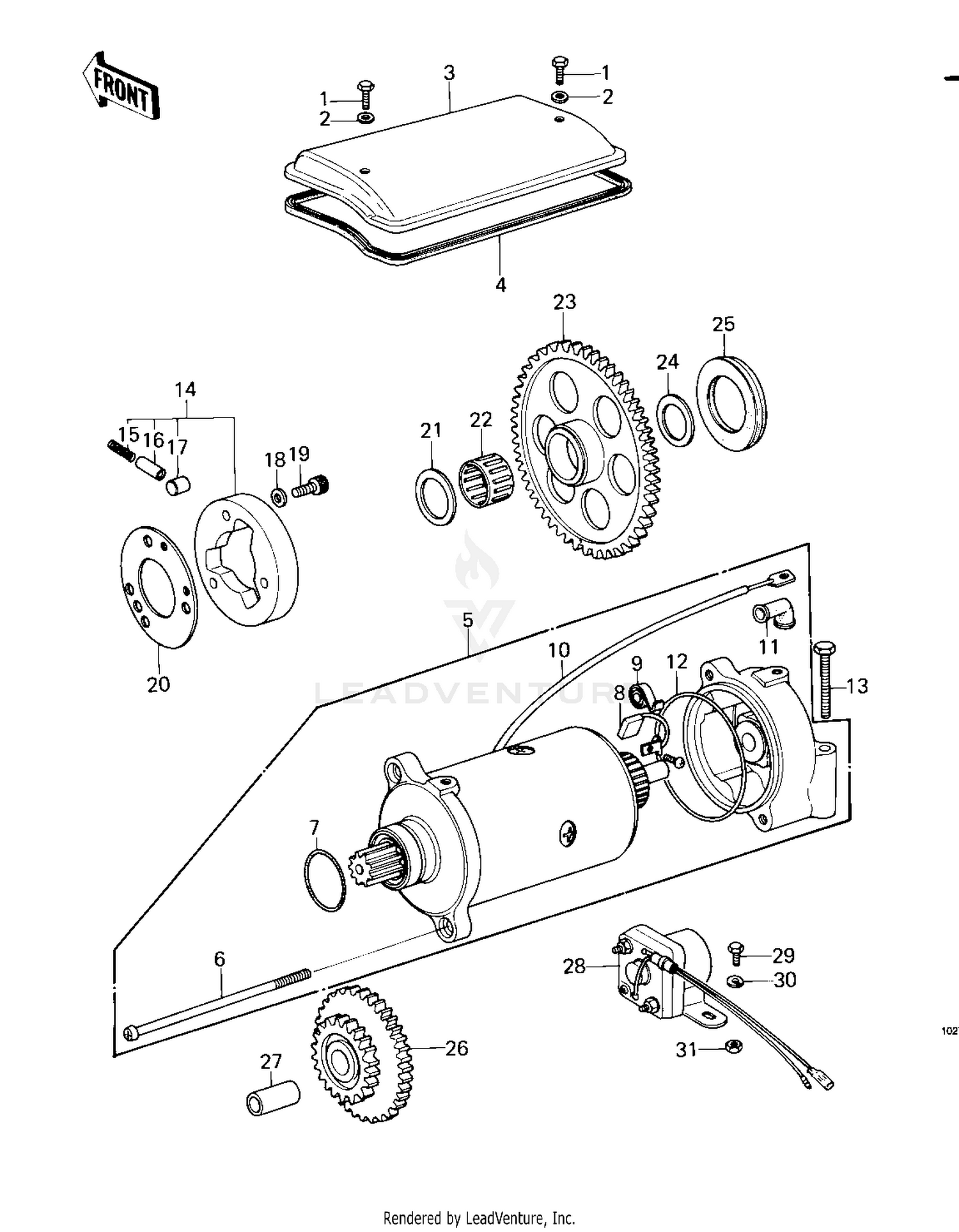

| Ref | Part Number | Description |
|---|
| 1 |
110R0610 |
BOLT (6X10) Price: $3.44 |
| 2 |
410S0600 |
WASHER-PLAIN-SMALL,6MM This part replaces 410D0600. Price: $0.78 |
| 3 |
21165-001 |
COVER,STARTING MOTOR Price: $54.52 |
| 4 |
21166-001 |
GASKET,START MOTOR CV Price: $36.70 |
| 5 |
21163-1006 |
MOTOR ASSY,STARTING Price: $495.44 |
| 5 |
21163-1143 |
STARTER-ELECTRIC This part replaces 21163-1019. Price: $625.66 |
| 6 |
21015-005 |
SCREW,PAN HEAD,6X110 Price: $9.81 |
| 7 |
92055-1276 |
RING-O This part replaces 21027-004. Price: $9.91 |
| 8 |
21039-003 |
CARBON BRUSH Price: $40.76 |
| 9 |
21040-003 |
SPRING,CARBON BRUSH Price: $8.56 |
| 10 |
26010-055 |
WIRE,STARTER MOTOR Price: $29.04 |
| 10 |
26011-1036 |
WIRE,STARTING MOT LED Price: $44.60 |
| 11 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 13 |
92001-1456 |
BOLT,EXCLUSIVE Price: $4.90 |
| 14 |
13193-1006 |
CLUTCH ASSY,STARTING Price: $178.91 |
| 15 |
92081-110 |
SPRING Price: $4.76 |
| 16 |
92043-087 |
PIN Price: $12.76 |
| 17 |
92122-001 |
PIN Price: $11.60 |
| 18 |
92022-1108 |
WASHER,8.5X13.5X2 Price: $4.31 |
| 19 |
120CA0816 |
BOLT-SOCKET,8X16 This part replaces 120P0816. Price: $4.45 |
| 20 |
92026-112 |
PLATE,CLUTCH STARTER Price: $10.00 |
| 21 |
92026-1031 |
SPACER Price: $10.35 |
| 22 |
92046-1022 |
BEARING-NEEDLE,K253020S Price: $22.97 |
| 23 |
16085-1012 |
GEAR,STARTING CLUTCH Price: $231.82 |
| 24 |
92026-1033 |
SPACER Price: $7.58 |
| 25 |
92075-1129 |
DAMPER RUBBER,6.3T Price: $27.35 |
| 25 |
92075-1130 |
DAMPER RUBBER,7.3T Price: $24.84 |
| 25 |
92075-1131 |
DAMPER RUBBER,8.3T Price: $25.83 |
| 26 |
21167-002 |
GEAR,STARTING MOTOR Price: $117.48 |
| 27 |
13002-007 |
PIN-PISTON Price: $18.23 |
| 28 |
27010-1023 |
SWITCH ASSY,MAGNETIC Price: $226.09 |
| 29 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 29 |
112BA0616 |
BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 30 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
