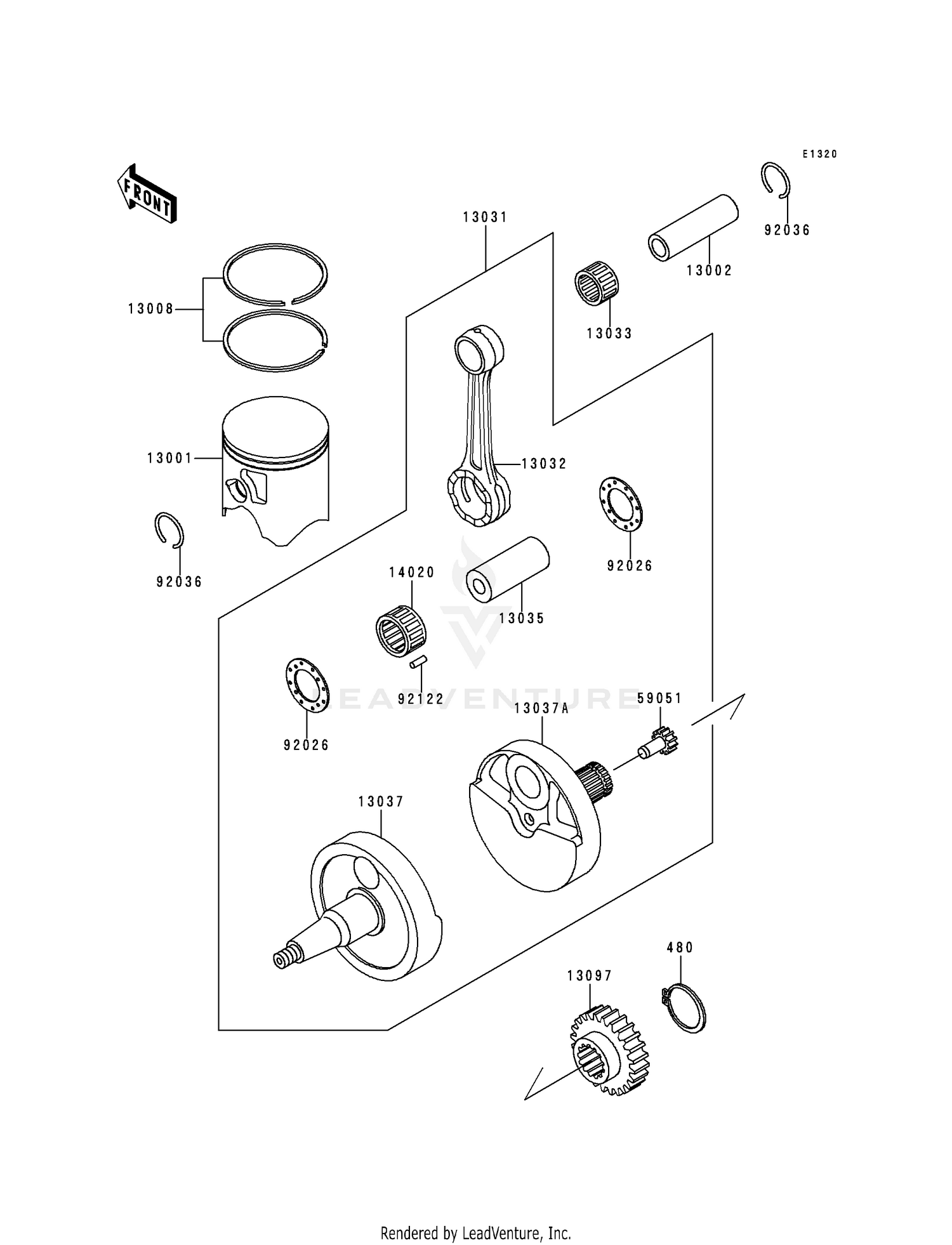

CRANKSHAFT/PISTON(S)
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 480 | 480J2400 | CIRCLIP-TYPE-C,24MM Price: $6.32 |
| 13001 | 13001-1327 | PISTON-ENGINE,B Price: $208.74 |
| 13002 | 13002-1067 | PIN-PISTON Price: $29.88 |
| 13008 | 13008-1103 | RING-SET-PISTON Price: $81.39 |
| 13031 | 13031-1340 | CRANKSHAFT-COMP Price: $883.34 |
| 13032 | 13032-1184 | ROD-CONNECTING Price: $118.80 |
| 13033 | 13033-1055 | BEARING-SMALL END,KTV Price: $30.91 |
| 13035 | 13035-1008 | PIN-CRANK Price: $71.23 |
| 13037 | 13037-1358 | CRANKSHAFT,LH Price: $483.21 |
| 13037A | 13037-1359 | CRANKSHAFT,RH Price: $456.79 |
| 13097 | 13097-1205 | GEAR-PRIMARY SPUR,26T Price: $109.46 |
| 14020 | 14020-1071 | RETAINER Price: $73.96 |
| 59051 | 59051-1128 | GEAR-SPUR,WATER PUMP, Price: $38.77 |
| 92026 | 92026-1346 | SPACER Price: $26.41 |
| 92036 | 92036-008 | RING-SNAP,PISTON PIN Price: $0.49 |
