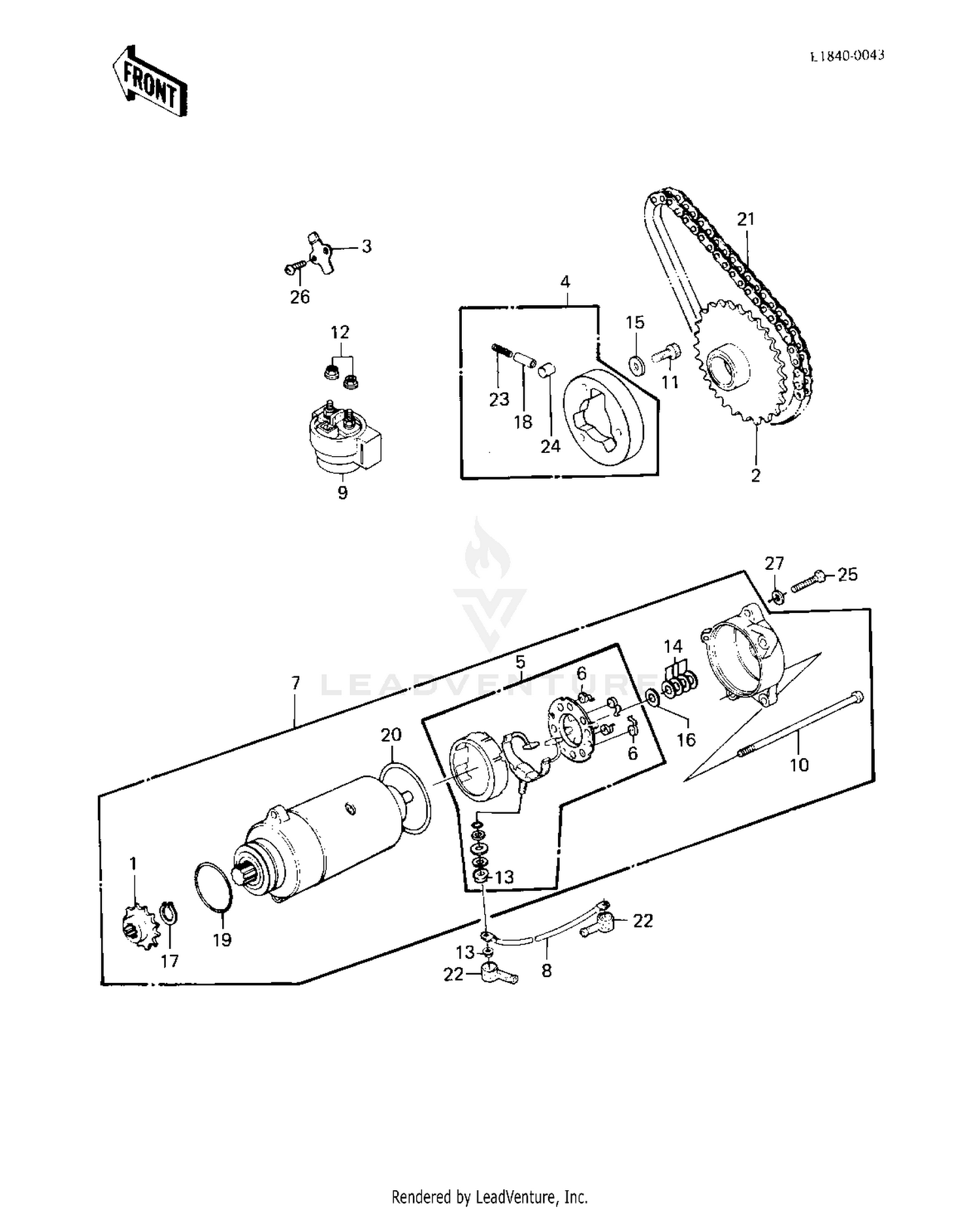

| Ref | Part Number | Description |
|---|
| 1 |
12046-1004 |
SPROCKET,STARTER MOTO Price: $59.43 |
| 2 |
12046-1023 |
SPROCKET,STARTER Price: $67.69 |
| 3 |
13169-1010 |
PLATE Price: $7.29 |
| 4 |
13193-1006 |
CLUTCH ASSY,STARTING Price: $178.91 |
| 5 |
21039-1053 |
BRUSH,CARBON Price: $94.23 |
| 6 |
21040-1003 |
SPRING-BRUSH Price: $9.41 |
| 7 |
21163-1238 |
STARTER, ELECTRIC This part replaces 21163-1036. Price: $502.58 |
| 8 |
26011-1201 |
WIRE-LEAD,STARTER MOT Price: $48.53 |
| 9 |
27010-1314 |
SWITCH,STARTER Price: $45.86 |
| 10 |
92001-1046 |
SCREW,PAN HEAD,6X130 Price: $8.55 |
| 11 |
120CA0816 |
BOLT-SOCKET,8X16 This part replaces 120P0816. Price: $4.45 |
| 12 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 13 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 14 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 15 |
92022-1108 |
WASHER,8.5X13.5X2 Price: $4.31 |
| 16 |
92022-1132 |
WASHER,9.1X18X0.8 Price: $6.22 |
| 17 |
92033-037 |
CIRCLIP,13M/M Price: $9.80 |
| 18 |
92043-087 |
PIN Price: $12.76 |
| 19 |
92055-1313 |
RING-O This part replaces 21027-005. Price: $8.66 |
| 21 |
92057-1009 |
CHAIN,DYNAMO Price: $49.50 |
| 22 |
21017-020 |
CAP,STARTING MOTOR Price: $8.42 |
| 23 |
92081-110 |
SPRING Price: $4.76 |
| 24 |
92122-001 |
PIN Price: $11.60 |
| 25 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 26 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
