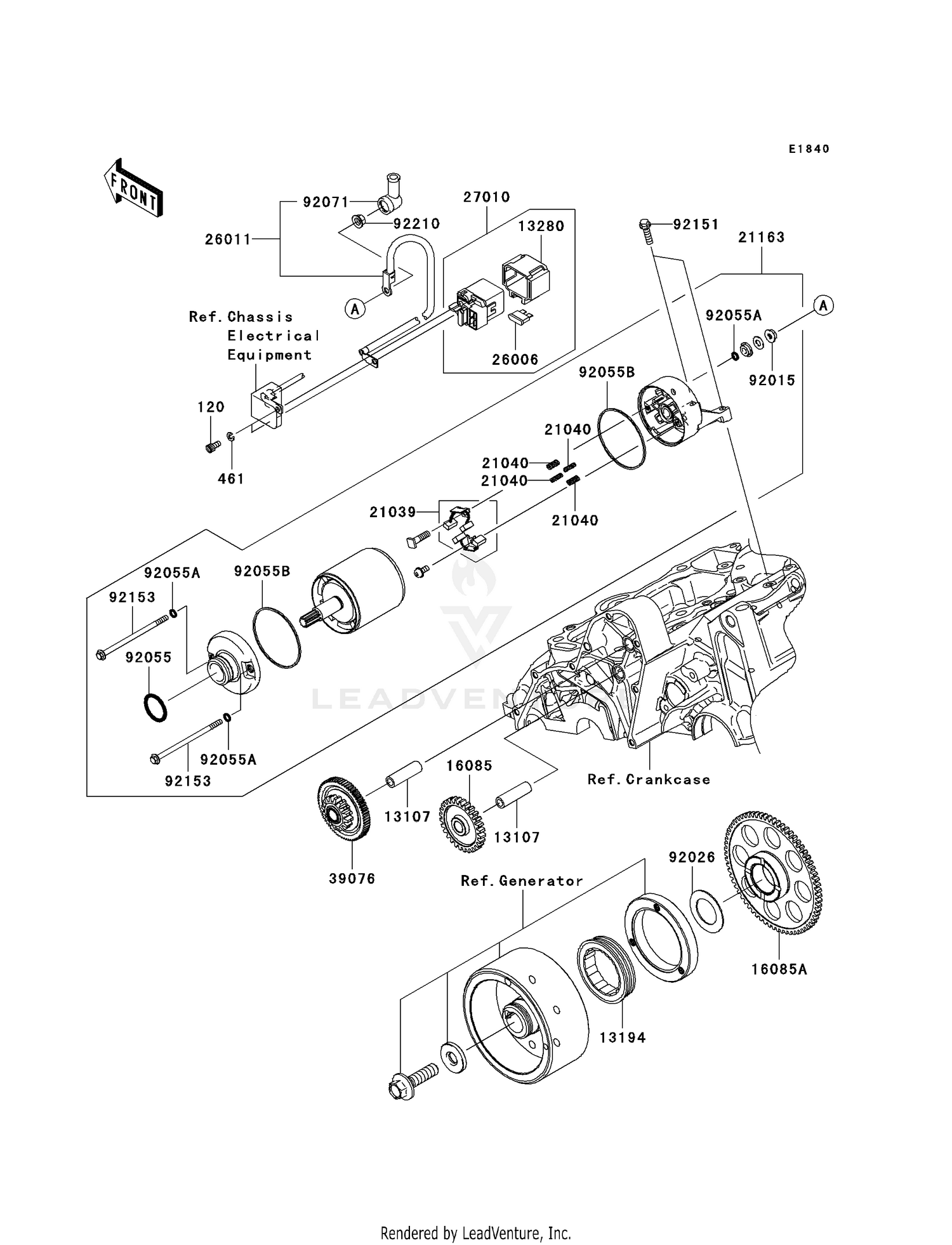

| Ref | Part Number | Description |
|---|
| 120 |
120CB0510 |
BOLT-SOCKET,5X10 Price: $1.64 |
| 461 |
461DB0500 |
WASHER-SPRING,5MM Price: $1.50 |
| 13107 |
13107-1106 |
SHAFT,IDLE GEAR Price: $16.69 |
| 13194 |
13193-0006 |
CLUTCH-ASSY-ONEWAY This part replaces 13194-1083. Price: $125.52 |
| 13280 |
13280-1263 |
HOLDER Price: $13.72 |
| 16085 |
16085-0148 |
GEAR,IDLE,28T This part replaces 16085-0074. Price: $104.12 |
| 16085A |
16085-0076 |
GEAR,67T Price: $117.38 |
| 21039 |
21039-0004 |
BRUSH,CARBON Price: $117.72 |
| 21040 |
21040-0003 |
SPRING-BRUSH Price: $9.79 |
| 21163 |
21163-0040 |
STARTER-ELECTRIC Price: $500.40 |
| 26006 |
26006-1006 |
FUSE,BLADE,30A,GREEN Price: $4.96 |
| 26011 |
26011-0083 |
WIRE-LEAD Price: $36.81 |
| 27010 |
27010-0793 |
SWITCH,MAGNETIC This part replaces 27010-1446. Price: $136.50 |
| 39076 |
39076-0023 |
LIMITER,16T&66T This part replaces 39076-0006. Price: $118.19 |
| 92015 |
92015-1476 |
NUT,STARTER MOTOR Price: $4.31 |
| 92026 |
92026-087 |
SPACER,29.1X47.5X1.2 Price: $9.91 |
| 92055 |
92055-1276 |
RING-O Price: $9.91 |
| 92055A |
92055-1370 |
RING-O,4.5X2.0 Price: $4.69 |
| 92055B |
92055-1381 |
RING-O,STARTER MOTOR Price: $9.91 |
| 92071 |
92071-0024 |
GROMMET Price: $10.21 |
| 92151 |
92154-0504 |
BOLT,FLANGED,6X22 This part replaces 92151-1937. Price: $1.94 |
| 92153 |
92153-1783 |
BOLT Price: $11.93 |
