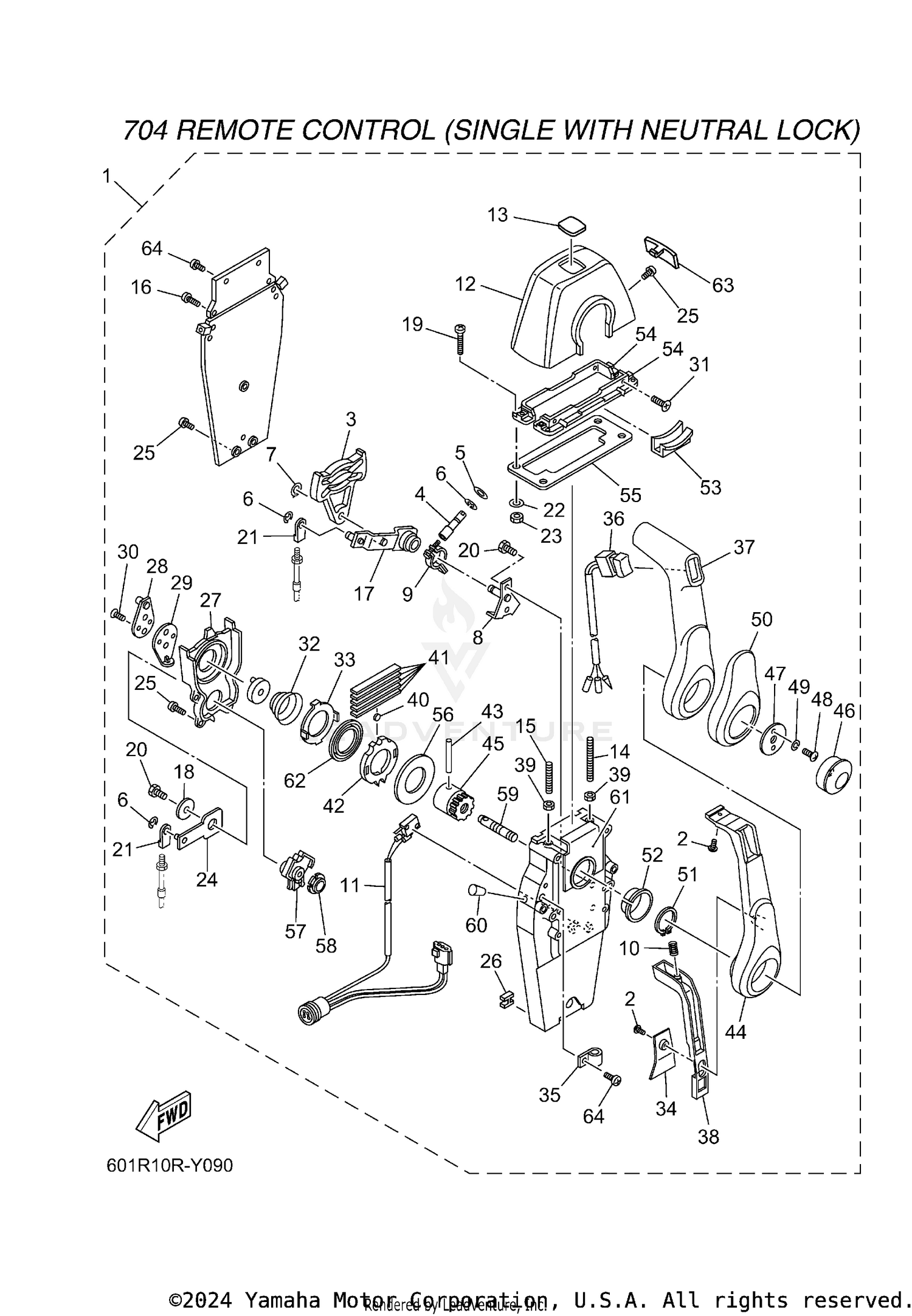

| Ref | Part Number | Description |
|---|
| 2 |
704-48127-T0-00 |
SCREW 1 Price: $6.60 |
| 3 |
EL8-48251-00-00 |
PLATE, CAM Price: $37.75 |
| 4 |
704-48265-00-00 |
SHAFT, FRICTION Price: $14.15 |
| 5 |
701-48246-00-00 |
SPACER Price: $3.55 |
| 6 |
93430-06024-00 |
CIRCLIP Price: $3.95 |
| 7 |
EL8-48259-00-00 |
CIRCLIP 1 Price: $7.15 |
| 8 |
704-48262-00-00 |
SHAFT, THROTTLE Price: Call Us |
| 9 |
704-48264-00-00 |
THROTTLE, FRICTION Price: $25.50 |
| 10 |
703-48227-00-00 |
SPRING, NEUTRAL LOCK Price: $7.15 |
| 11 |
704-82540-40-00 |
NEUTRAL SWITCH ASSY Price: $69.65 |
| 12 |
704-48119-T0-00 |
COVER Price: $39.75 |
| 13 |
704-48215-61-00 |
GRAPHIC Price: $32.10 |
| 14 |
EL8-48281-00-00 |
SCREW 1 Price: $7.70 |
| 15 |
704-48281-00-00 |
SCREW 1 Price: $12.55 |
| 16 |
98580-05525-00 |
SCREW, PAN HEAD This part replaces 97890-05025-00. Price: $2.00 |
| 17 |
704-48261-00-00 |
ARM, THROTTLE Price: $76.35 |
| 18 |
EL8-48191-00-00 |
WASHER 1 Price: $3.35 |
| 19 |
98580-05540-00 |
SCREW, PAN HEAD This part replaces 704-48283-00-00. Price: $9.49 |
| 20 |
97080-06018-00 |
BOLT This part replaces 97380-06018-00. Price: $8.99 |
| 21 |
703-48345-01-00 |
CABLE END, REMOTE CONTROL 2 Price: $16.25 |
| 22 |
704-48287-00-00 |
WASHER Price: $7.70 |
| 23 |
95380-05600-00 |
NUT Price: $9.49 |
| 24 |
704-48271-00-00 |
ARM, SHIFT Price: $11.80 |
| 25 |
EL8-48127-00-00 |
SCREW 1 Price: $6.25 |
| 26 |
703-48358-01-00 |
ANCHOR, CABLE Price: $10.70 |
| 27 |
704-48231-00-00 |
HOUSING, GEAR Price: $31.65 |
| 28 |
EL8-48241-00-00 |
ARM, DRIVE Price: $36.40 |
| 29 |
EL8-48254-00-00 |
STOPPER, THROTTLE ADJUSTING Price: $17.75 |
| 30 |
98780-06020-00 |
SCREW, FLAT HEAD This part replaces 92780-06020-00. Price: $9.49 |
| 31 |
98780-05018-00 |
SCREW, FLAT HEAD Price: $4.40 |
| 32 |
EL8-48244-00-00 |
SPRING, FREE ACCEL. Price: $20.20 |
| 33 |
EL8-48245-00-00 |
PLATE, LOCK Price: $13.75 |
| 34 |
704-48229-T0-00 |
GRIP, CONTROL LEVER Price: $12.70 |
| 35 |
704-82594-00-00 |
CLAMP Price: $14.90 |
| 36 |
704-82563-60-00 |
TRIM & TILT SWITCH ASSY Price: $71.25 |
| 37 |
704-48222-T0-00 |
GRIP, CONTROL LEVER Price: $26.40 |
| 39 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 40 |
701-48248-00-00 |
ROLLER, FREE ACCEL. Price: $6.70 |
| 41 |
704-48238-00-00 |
SPRING, DETENT Price: $2.91 |
| 42 |
704-48232-P1-00 |
GEAR Price: $31.50 |
| 43 |
EL8-48164-00-00 |
PIN 2 Price: $11.82 |
| 44 |
704-48221-T0-00 |
LEVER, CONTROL Price: $104.55 |
| 45 |
704-48242-10-00 |
SHAFT, DRIVE Price: $53.70 |
| 46 |
704-48225-R0-00 |
COVER Price: $7.70 |
| 47 |
704-48192-00-00 |
WASHER 2 Price: $15.20 |
| 48 |
97880-06018-00 |
SCREW, PAN HEAD This part replaces 97890-06018-00. Price: $4.60 |
| 49 |
92990-06300-00 |
WASHER, INTERNAL TOOTH Price: $2.70 |
| 50 |
704-48224-T0-00 |
COVER, CONTROL LEVER Price: $63.95 |
| 51 |
EL8-48279-00-00 |
CIRCLIP 2 Price: $17.10 |
| 52 |
704-48234-00-00 |
BUSHING 1 Price: $4.05 |
| 53 |
704-48219-T0-00 |
COVER, LEAD Price: $7.00 |
| 54 |
704-48144-T0-00 |
PLATE, STOPPER 2 Price: $23.35 |
| 55 |
704-48176-01-00 |
GROMMET Price: $22.95 |
| 56 |
704-48192-P0-00 |
WASHER 2 Price: $11.40 |
| 57 |
704-48233-00-00 |
GEAR 2 Price: $21.80 |
| 58 |
704-48235-00-00 |
BUSHING Price: $6.15 |
| 59 |
704-48153-00-00 |
SHAFT, FREE ACCEL. Price: $15.65 |
| 60 |
704-48166-00-00 |
PLUG Price: $12.55 |
| 61 |
704-48284-P0-00 |
GROMMET Price: $14.90 |
| 62 |
704-48178-10-00 |
PLATE, SHIFT Price: $9.45 |
| 63 |
704-48167-20-00 |
PLUG Price: $20.70 |
