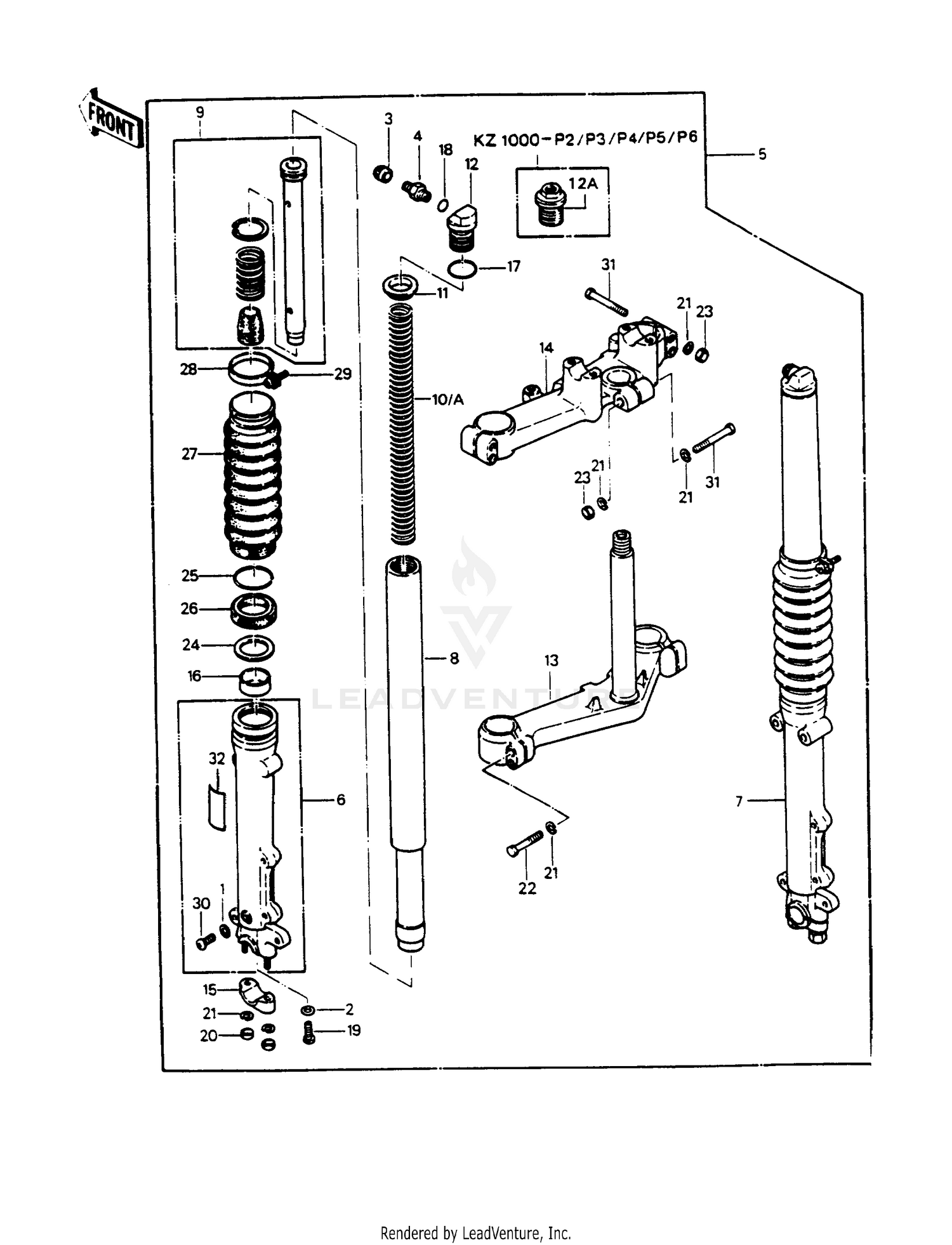

| Ref | Part Number | Description |
|---|
| 1 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 2 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 3 |
11012-1241 |
CAP,AIR VALVE Price: $18.24 |
| 4 |
16126-1052 |
VALVE AIR This part replaces 16126-1046. Price: $35.06 |
| 5 |
44001-1879 |
FORK-FRONT This part replaces 44001-1636. Price: $2,878.43 |
| 6 |
44005-1332 |
PIPE-LEFT FORK OUTER This part replaces 44005-4002. Price: $430.93 |
| 7 |
44006-1328 |
PIPE-RIGHT FORK OUTER This part replaces 44006-4002. Price: $430.93 |
| 8 |
44013-4002 |
PIPE-FORK INNER Price: $417.64 |
| 9 |
44022-1071 |
CYLINDER-FORK Price: $131.42 |
| 10 |
44026-4002 |
SPRING-FRONT FORK Price: $52.96 |
| 10A |
44026-1312 |
SPRING-FRONT FORK Price: $93.33 |
| 11 |
44028-033 |
GUIDE,FORK SPRING Price: $8.73 |
| 12 |
44029-1029 |
SEAT-FORK SPRING Price: $57.05 |
| 12A |
44029-4001 |
SEAT-FORK SPRING Price: $57.67 |
| 13 |
44037-4004 |
HOLDER-FORK UNDER Price: $613.06 |
| 14 |
44039-4007 |
HOLDER-FORK UPPER Price: $374.88 |
| 15 |
44063-011 |
HOLDER,FRONT AXLE Price: $36.54 |
| 16 |
44065-1091 |
BUSHING-FRONT FORK,OU This part replaces 44065-1012. Price: $25.96 |
| 17 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 18 |
670B1506 |
O RING,6MM This part replaces 92055-1094. Price: $1.28 |
| 19 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 20 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 21 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 22 |
92001-1700 |
BOLT,8X38 Price: $9.94 |
| 23 |
311BA0800 |
NUT,8MM This part replaces 311G0800. Price: $4.46 |
| 24 |
92022-1262 |
WASHER,FORK OUTER PIPE Price: $8.60 |
| 25 |
92033-1047 |
RING-SNAP,FORK Price: $6.46 |
| 26 |
92049-1178 |
SEAL-OIL,FORK This part replaces 92049-1102. Price: $29.51 |
| 27 |
49006-1079 |
BOOT,FORK,BLACK Price: $84.57 |
| 28 |
92037-1321 |
CLAMP, BOOT, BLACK Price: $9.52 |
| 29 |
220AA0420 |
SCREW-PAN-CROS,4X20 This part replaces 220B0420. Price: $2.67 |
| 30 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 31 |
115G0855 |
BOLT-SMALL-UPSET,8X55 This part replaces 114G0855. Price: $6.13 |
