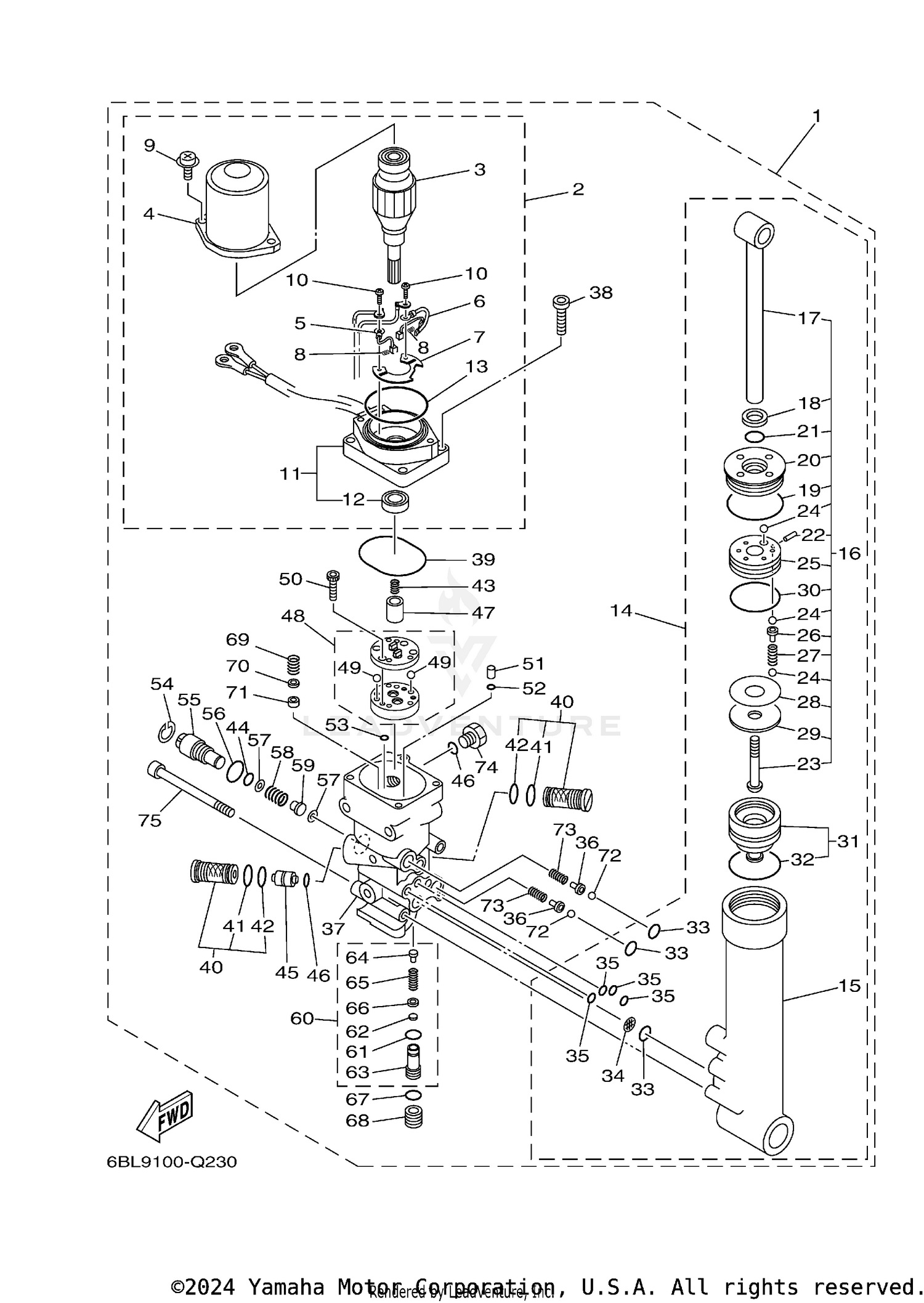

| Ref | Part Number | Description |
|---|
| 1 |
67C-43800-13-8D |
POWER TRIM & TILT ASSY Price: $1,799.00 |
| 2 |
67C-43880-10-00 |
MOTOR ASSY Price: $611.50 |
| 3 |
67C-43805-11-00 |
ARMATURE ASSY Price: $183.50 |
| 4 |
67C-43804-10-00 |
STATOR ASSY Price: $310.95 |
| 5 |
67C-43892-10-00 |
BRUSH 2 Price: $10.70 |
| 6 |
67C-82181-10-00 |
CIRCUIT BREAKER COMP. Price: $60.45 |
| 7 |
67C-4380F-10-00 |
PLATE, BRUSH HOLDER Price: $7.20 |
| 8 |
67C-4386K-10-00 |
SPRING, BRUSH Price: $4.20 |
| 9 |
67C-43879-10-00 |
SCREW, WITH WASHER Price: $4.20 |
| 10 |
97602-04316-00 |
SCREW, PAN HEAD WITH WASHER Price: $2.05 |
| 11 |
67C-43881-11-00 |
FRAME, END Price: $164.60 |
| 12 |
67C-43882-10-00 |
OIL SEAL Price: $14.15 |
| 13 |
67C-43862-10-00 |
O-RING Price: $6.60 |
| 14 |
67C-43840-01-00 |
POWER TILT ASSY Price: $671.05 |
| 15 |
65W-4380K-00-00 |
CYLINDER, TILT SUB ASSY Price: $409.20 |
| 16 |
67C-43810-01-00 |
TILT PISTON SUB ASSY Price: $420.10 |
| 17 |
65W-43801-01-00 |
ROD Price: $104.00 |
| 18 |
65W-43812-00-00 |
SEAL, DUST Price: $15.65 |
| 19 |
65W-43865-00-00 |
O-RING Price: $6.25 |
| 20 |
65W-43811-01-00 |
SCREW, CYLINDER END Price: $38.55 |
| 21 |
67C-43867-00-00 |
O-RING Price: $5.55 |
| 22 |
91609-16012-00 |
PIN, SPRING Price: $2.05 |
| 23 |
92012-10040-00 |
BOLT, BUTTON HEAD Price: $4.40 |
| 24 |
93505-32038-00 |
BALL Price: $0.50 |
| 25 |
65W-4385A-01-00 |
PISTON, TILT Price: $67.15 |
| 26 |
65W-4386A-00-00 |
PIN, ABSORBER VALVE Price: $6.40 |
| 27 |
67C-43857-00-00 |
SPRING, ABSORBER VALVE Price: $3.00 |
| 29 |
90201-10038-00 |
WASHER, PLATE Price: $6.49 |
| 30 |
6H1-43862-00-00 |
O-RING Price: $13.45 |
| 31 |
65W-4381B-00-00 |
FREE PISTON SUB ASSY Price: $170.70 |
| 32 |
6H1-43861-10-00 |
O-RING Price: $7.60 |
| 33 |
93210-11368-00 |
O-RING Price: $6.49 |
| 34 |
69J-4381C-00-00 |
FILTER 3 Price: $9.10 |
| 35 |
93210-06519-00 |
O-RING This part replaces 93210-064A5-00. Price: $4.40 |
| 36 |
65W-4386A-00-00 |
PIN, ABSORBER VALVE Price: $6.40 |
| 38 |
90110-06114-00 |
BOLT,HEX SKT HEAD This part replaces 91380-06020-00. Price: $11.49 |
| 39 |
93210-50768-00 |
O-RING Price: $8.49 |
| 41 |
6H1-43866-01-00 |
O-RING Price: $3.00 |
| 42 |
93210-12N52-00 |
O-RING Price: $4.15 |
| 43 |
6T4-43853-00-00 |
SPRING, MAIN VALVE Price: $3.55 |
| 44 |
6AW-43869-09-00 |
O-RING This part replaces 93210-10M74-00. Price: $4.95 |
| 45 |
62X-43841-00-00 |
PISTON, SHUTTLE Price: $116.25 |
| 46 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 47 |
65W-43831-00-00 |
CONNECTOR, SHAFT Price: $10.40 |
| 48 |
65W-43830-00-00 |
GEAR PUMP ASSY Price: $386.50 |
| 49 |
93505-32038-00 |
BALL Price: $0.50 |
| 50 |
91318-04025-00 |
BOLT Price: $1.90 |
| 51 |
65W-43817-00-00 |
FILTER 2 Price: $17.90 |
| 52 |
93210-04N50-00 |
O-RING Price: $4.15 |
| 53 |
93210-04N51-00 |
O-RING Price: $5.95 |
| 54 |
6H1-43875-00-00 |
RING, SNAP Price: $7.40 |
| 55 |
6H1-43845-01-00 |
SCREW, MANUAL RELEASE This part replaces 6H1-43845-00-00. Price: $52.60 |
| 56 |
6D8-43863-00-00 |
O-RING Price: $2.85 |
| 57 |
6H1-43847-00-00 |
SEAT, MANUAL VALVE Price: $8.95 |
| 58 |
65W-43854-00-00 |
SPRING, MANUAL RELEASE Price: $6.60 |
| 59 |
65W-4382A-00-00 |
ADAPTOR 1 Price: $14.75 |
| 60 |
CS2-43803-81-00 |
CASE VALVE COMP. Price: $116.25 |
| 61 |
6AW-43869-09-00 |
O-RING This part replaces 93210-10M74-00. Price: $4.95 |
| 62 |
6H1-4384G-11-00 |
SEAL, RELIEF VALVE Price: $11.40 |
| 63 |
67C-43851-00-00 |
SEAT, RELIEF VALVE Price: $45.35 |
| 64 |
67F-43843-00-00 |
SCREW, VALVE LOCK Price: $15.55 |
| 65 |
6H1-43856-10-00 |
SPRING, DOWN RELIEF Price: $6.40 |
| 66 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 67 |
93210-11073-00 |
O-RING Price: $8.49 |
| 68 |
65W-43843-00-00 |
SCREW, VALVE LOCK Price: $26.55 |
| 69 |
6H1-43856-10-00 |
SPRING, DOWN RELIEF Price: $6.40 |
| 70 |
6H1-43844-10-00 |
PIN, VALVE SUPPORT Price: $13.35 |
| 71 |
6H1-4384F-10-00 |
SEAL, MAIN VALVE Price: $6.60 |
| 72 |
93501-08001-00 |
BALL Price: $1.15 |
| 73 |
63P-43857-10-00 |
SPRING, ABSORBER VALVE Price: $11.10 |
| 74 |
6H1-43829-00-00 |
PLUG, RESERVOIR Price: $14.75 |
