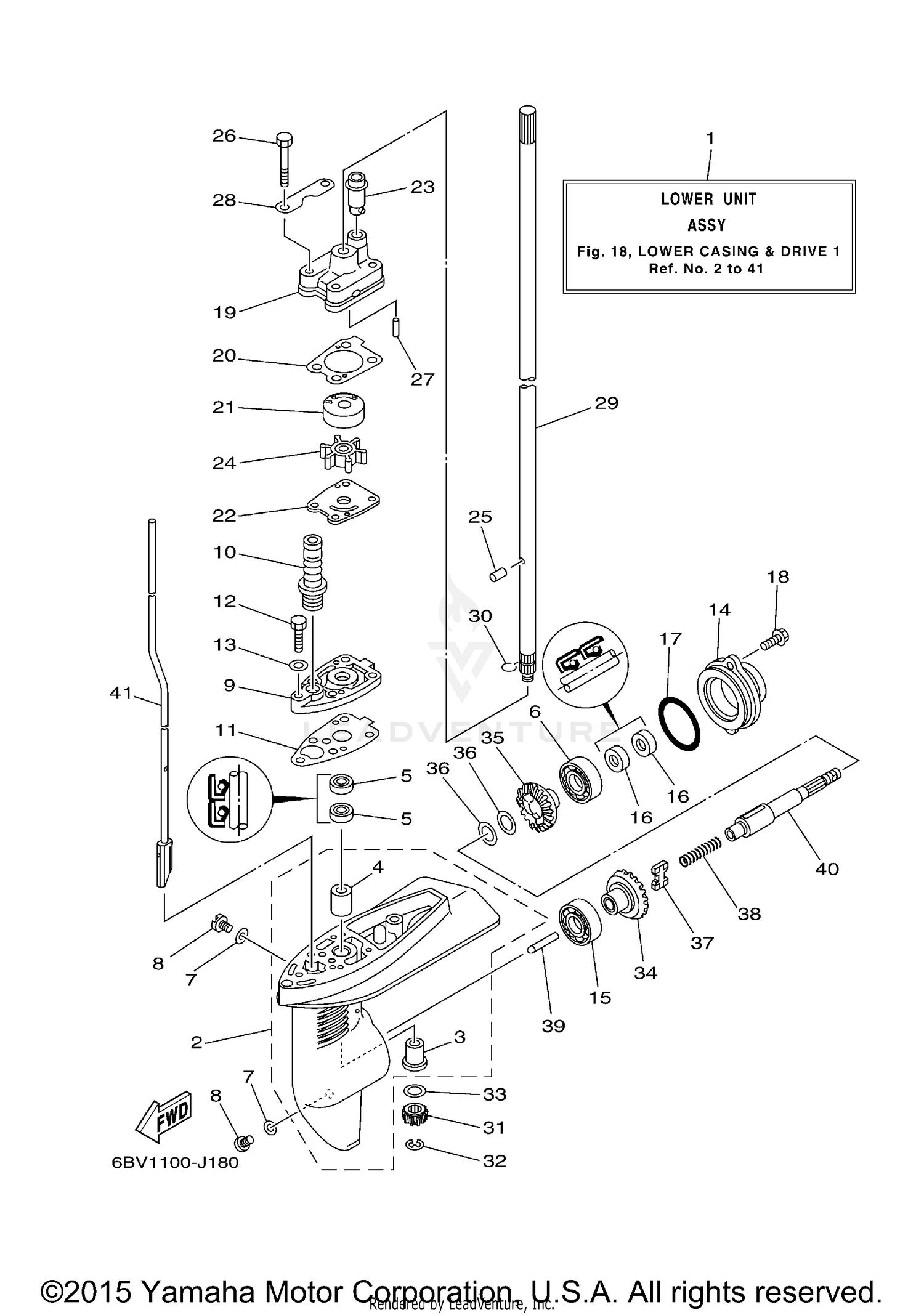

| Ref | Part Number | Description |
|---|
| 2 |
6E0-45311-02-8D |
CASING, LOWER This part replaces 68D-G5311-00-4D. Price: $224.10 |
| 3 |
6E0-45317-09-00 |
BUSHING, DRIVE SHAFT Price: $17.10 |
| 4 |
6E0-45316-09-00 |
BUSHING, DRIVE SHAFT Price: $17.10 |
| 5 |
93101-10M14-00 |
OIL SEAL Price: $6.75 |
| 6 |
93306-00423-00 |
BEARING This part replaces 93306-004YH-00. Price: $41.99 |
| 7 |
90430-08003-00 |
GASKET This part replaces 90430-08020-00. Price: $1.55 |
| 8 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 9 |
6E0-45321-01-CA |
PLATE This part replaces 68D-G5321-00-00. Price: $18.75 |
| 10 |
6L2-44147-00-00 |
BOOT, SHIFT ROD Price: $10.70 |
| 11 |
6E0-45315-A0-00 |
PACKING, LOWER CASING This part replaces 68D-G5315-A0-00. Price: $7.70 |
| 12 |
90101-06M27-00 |
BOLT This part replaces 97095-06025-00. Price: $3.35 |
| 13 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 14 |
6E0-45361-01-8D |
CAP, LOWER CASING This part replaces 68D-G5361-00-4D. Price: $33.75 |
| 15 |
93306-00423-00 |
BEARING This part replaces 93306-004YH-00. Price: $41.99 |
| 16 |
93101-13M12-00 |
OIL SEAL Price: $8.10 |
| 17 |
93210-48214-00 |
O-RING Price: $11.10 |
| 18 |
95D95-06016-00 |
BOLT, FLANGE DEEP This part replaces 95895-06016-00. Price: $0.95 |
| 19 |
6BX-44311-00-00 |
HOUSING, WATER PUMP Price: $24.50 |
| 21 |
6BX-44322-00-00 |
INSERT, CARTRIDGE Price: $24.10 |
| 22 |
6BX-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $6.15 |
| 23 |
67D-44366-00-00 |
DAMPER, WATER SEAL 2 Price: $2.70 |
| 24 |
6E0-44352-00-00 |
IMPELLER Price: $23.25 |
| 25 |
93604-09066-00 |
PIN, DOWEL Price: $6.40 |
| 26 |
97080-06045-00 |
BOLT (6G8) This part replaces 97095-06045-00. Price: $4.90 |
| 27 |
93604-18080-00 |
PIN, DOWEL Price: $7.70 |
| 28 |
6E0-44328-00-00 |
PLATE This part replaces 68D-G4328-00-00. Price: $2.25 |
| 30 |
90467-08M01-00 |
CLIP Price: $4.40 |
| 31 |
6BX-45551-00-00 |
PINION (13T) Price: $47.70 |
| 32 |
99001-06600-00 |
CIRCLIP Price: $1.10 |
| 33 |
90201-11M49-00 |
WASHER, PLATE Price: $5.65 |
| 34 |
67D-45560-00-00 |
GEAR 1 (27T) Price: $165.40 |
| 35 |
67D-45570-00-00 |
GEAR 2 (27T) Price: $165.40 |
| 36 |
67D-45576-00-00 |
WASHER, THRUST 2 Price: $6.25 |
| 37 |
67D-45631-01-00 |
CLUTCH, DOG Price: $38.45 |
| 38 |
90501-120A9-00 |
SPRING, COMPRESSION Price: $4.15 |
| 39 |
67D-45635-00-00 |
PLUNGER, SHIFT Price: $9.10 |
| 40 |
6EE-G5611-00-00 |
SHAFT, PROPELLER This part replaces 68D-G5611-10-00. Price: $156.20 |
