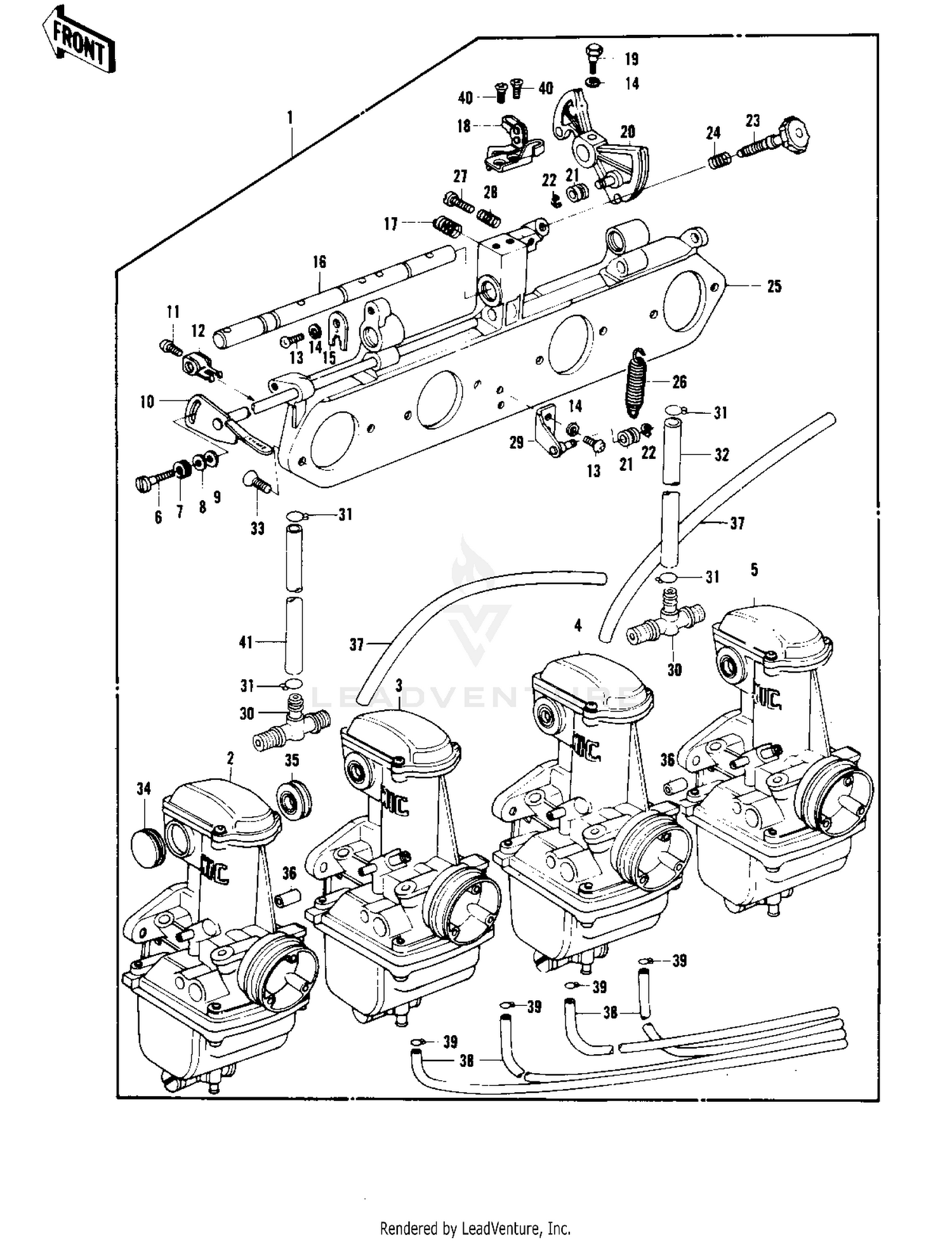

CARBURETOR ASSY (KZ1000-B1)

CARBURETOR ASSY (KZ1000-B1)

Parts (37)

RefPart NumberDescription
1 16001-1055 CARBURETOR ASSY Price: $1,146.15
2 16001-1075 CARBURETOR,L.H,OUTSID Price: $434.13
3 16001-1076 CARBURETOR,L.H INSIDE Price: $433.32
4 16001-1095 CARBURETOR,R.H INN Price: $488.37
5 16001-1078 CARBURETOR,R.H OUTSID Price: $433.32
6 16046-005 SCREW Price: $6.83
7 16040-009 SPRING,F Price: $11.55
10 16041-021 SHAFT,STARTER PLUNGER Price: $54.54
11 16046-007 SCREW,PAN HEAD,5X7 Price: $11.39
12 13168-1026 LEVER,STARTER PLUNGER Price: $25.35
13 220AA0514 SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43
14 461DA0500 WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71
15 16055-012 PLATE,SHAFT STOPPER Price: $10.89
16 16041-017 SHAFT,CARB CONNECTION Price: $68.79
17 16040-022 SPRING,CABLE PULLY Price: $9.72
18 16077-017 BRACKET,THROTTLE CABL Price: $59.26
19 16067-006 BOLT,HEX HEAD,5X14 Price: $18.26
20 16068-015 PULLEY,THROTTLE CABLE Price: $66.67
21 16073-016 RING Price: $10.43
22 482K3000 CIRCLIP 3MM Price: $2.76
23 16021-1010 SCREW,THROTTLE STOP Price: $32.19
24 16022-017 SPRING,THROTTLE STOP Price: $6.47
25 16065-049 HOLDER,CARBURETOR Price: $114.50
26 92081-1028 SPRING,THROTTLE PULLY Price: $76.59
27 16021-032 SCREW Price: $6.77
28 16022-010 SPRING,THROTTLE ADJST Price: $9.44
29 16077-016 BRACKET,THROTTLE CABL Price: $15.67
30 16046-002 JOINT,FUEL PIPE Price: $49.81
31 92037-056 CLAMP,CARB CONECT HOS Price: $6.60
32 92059-144 HOSE,FUEL Price: $97.88
33 16039-042 CAP,RUBBER Price: $17.78
35 92071-104 GROMMET,CARBURETOR Price: $33.00
36 92059-141 HOSE,6X11.5X16 Price: $17.97
37 92059-1028 HOSE,AIR VENT,5X8X550 Price: $25.52
38 92059-147 HOSE,FUEL OVERFLOW Price: $36.17
39 92037-173 CLAMP,OVERFLOW HOSE Price: $7.90
40 221AA0510 SCREW-CSK-CROS,5X10 This part replaces 221B0510A. Price: $3.67
