| Ref | Part Number | Description |
|---|
| 1 |
605253573 |
RAIL_SUSPENSION MACHINED - Call your local BRP dealership Price: $319.99 |
| 2 |
605355362 |
Slide Shoe This part replaces M5347724. Price: $29.49 |
| 3 |
M40059 |
Screw M6X60 Price: $3.13 |
| 4 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 5 |
605348954 |
Runner Protector Price: $19.49 |
| 6 |
207162544 |
Hex. Screw M6 X 25 Price: $1.19 |
| 7 |
234061410 |
Flat Washer 6 mm Price: $1.39 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. Price: $1.49 |
| 9 |
M5448216 |
Rubber Stopper Price: Call Us |
| 10 |
207063044 |
Hex. Screw M6 X 30 Price: $1.29 |
| 11 |
M548470 |
Plate Price: $10.99 |
| 12 |
605450182 |
SUPPORT - Call your local BRP dealership Price: $23.49 |
| 13 |
207182544 |
Hex. Screw M8 X 25 Price: $0.92 |
| 14 |
234081410 |
Flat Washer 8 mm This part replaces M20104. Price: $0.82 |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 Price: $0.58 |
| 16 |
M40089 |
Screw Price: Call Us |
| 17 |
503183100 |
Washer Price: $3.29 |
| 18 |
5347950 |
Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950. Price: $54.99 |
| 19 |
5447951 |
Sleeve - Call your local BRP dealership This part replaces M5447951. Price: $41.99 |
| 20 |
503189534 |
Cushion Price: $4.76 |
| 21 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces M31007. Price: $4.49 |
| 22 |
M31091 |
SHIM - Call your local BRP dealership Price: $1.17 |
| 23 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40134. Price: $3.29 |
| 24 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. Price: $1.29 |
| 25 |
M5343284 |
SHAFT - Call your local BRP dealership Price: $51.99 |
| 26 |
503189478 |
Thin Wheel 165 Price: $51.99 |
| 27 |
5444096 |
Sleeve This part replaces M5444096. Price: $29.99 |
| 28 |
M5444098 |
Sleeve L=29 Price: Call Us |
| 29 |
M40050 |
Hex. Screw With Nylon Patch Price: $3.13 |
| 30 |
503183300 |
Washer Price: $5.99 |
| 31 |
605633002 |
Spacer Price: $1.49 |
| 32 |
M40239 |
SCREW - Call your local BRP dealership Price: $5.73 |
| 33 |
232006414 |
Hex. Nut M10 X 1.5 Price: $1.39 |
| 34 |
5147672 |
Front arm - Call your local BRP dealership This part replaces M5147672. Price: $249.99 |
| 35 |
31024 |
Cushion This part replaces M31024. Price: $13.75 |
| 36 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. Price: $11.99 |
| 37 |
5347718 |
Limiter - Call your local BRP dealership This part replaces M5347718. Price: $25.99 |
| 38 |
5347726 |
Shaft This part replaces M5347726. Price: $85.99 |
| 39 |
40134 |
Screw Socket HD.DIN 912 This part replaces M40536. Price: $3.29 |
| 40 |
5447940 |
Support plate This part replaces M5447940. Price: $12.99 |
| 41 |
20068 |
Lock Washer D10 This part replaces M20068. Price: $2.09 |
| 42 |
M5346649 |
SLEEVE - Call your local BRP dealership Price: $12.49 |
| 43 |
31013 |
Shim Ring This part replaces M31013. Price: $7.69 |
| 44 |
20116 |
Shim This part replaces M20116. Price: $2.19 |
| 45 |
5347713 |
Lower Shaft, Front Arm This part replaces M5347713. Price: $68.99 |
| 46 |
207004544 |
Hex. Screw M10 X 45 Price: $1.69 |
| 47 |
512056700 |
Lock Washer Price: $3.29 |
| 48 |
5347719 |
Upper Shaft This part replaces 605348606. Price: $80.49 |
| 49 |
M20090 |
Conical Spring Washer Price: $3.13 |
| 50 |
M40243 |
Screw M12 X 60 Price: Call Us |
| 51 |
M5448025 |
Cap Price: $5.99 |
| 52 |
5347717 |
Shaft This part replaces M5347717. Price: $46.99 |
| 53 |
M4181158 |
Washer Price: Call Us |
| 54 |
207084544 |
Hex. Screw M8 X 45 Price: $1.49 |
| 55 |
232581414 |
Hex. Elastic Stop Nut M8 Price: $0.58 |
| 56 |
5447919 |
STOPPER STRAP - Call your local BRP dealership This part replaces M5447919. Price: $41.99 |
| 57 |
605349313 |
Rear Arm Weld Light Price: Call Us |
| 58 |
31027 |
Flange Bearing (Cushion) This part replaces M31027. Price: $24.99 |
| 59 |
605451897 |
REARSHOCK SHAFT - Call your local BRP dealership Price: $75.99 |
| 60 |
207004044 |
Hex. Screw M10 X 40 Price: $4.89 |
| 61 |
5346865 |
SHAFT - Call your local BRP dealership This part replaces M5346865. Price: $54.99 |
| 62 |
M5347668 |
Welded Rear Arm Price: Call Us |
| 63 |
605249988 |
UPPER ARM - Call your local BRP dealership Price: $334.99 |
| 64 |
207782044 |
Carriage Bolt, M8 X 20 This part replaces M40058. Price: $1.99 |
| 65 |
M40056 |
Screw Price: Call Us |
| 66 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 67 |
M33044 |
Nut Price: Call Us |
| 68 |
605450372 |
FLANGED SLEEVE - Call your local BRP dealership Price: $24.49 |
| 69 |
605450373 |
SLEEVE - Call your local BRP dealership Price: $23.49 |
| 70 |
5347851 |
Poker tube This part replaces M5347851. Price: $54.99 |
| 71 |
M5347852 |
Axe *Shaft Price: Call Us |
| 72 |
M5447853 |
Insert Price: Call Us |
| 73 |
5447848 |
Bearing sleeve - Call your local BRP dealership This part replaces M5447848. Price: $22.49 |
| 74 |
207086044 |
HEX. SCREW M8 X 60 - Call your local BRP dealership Price: $1.99 |
| 75 |
207103544 |
Hex. Screw M10 X 35 Price: $1.59 |
| 76 |
233601416 |
Elastic Locking Nut M10 X 1.5 Price: $1.69 |
| 77 |
M46027 |
Idler Wheel Price: Call Us |
| 78 |
M40088 |
Hex. Screw M8 X 70 Price: $1.47 |
| 79 |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 80 |
605251781 |
LH Extension Price: $129.99 |
| 80 |
605251782 |
RH Extension Price: $129.99 |
| 81 |
25004 |
Cup Spring This part replaces M25004. Price: $3.79 |
| 82 |
5447373 |
Eye bolt adjuster This part replaces M5447373. Price: $39.99 |
| 83 |
234002410 |
Flat Washer 10 mm This part replaces M20011. Price: $1.49 |
| 84 |
503192731 |
SLIDING PAD - Call your local BRP dealership This part replaces M5343191. Price: $39.99 |
| 85 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064. Price: $1.99 |
| 86 |
570063600 |
Wheel Cap Price: $3.59 |
| 87 |
572089000 |
LABYRINTH SEAL - Call your local BRP dealership Price: $11.49 |
| 88 |
M5346754 |
Shock Protector Price: $21.99 |
| 89 |
605448429 |
Sleeve Price: $72.99 |
| 90 |
503190856 |
Wheel 165 mm Price: $51.99 |
| 91 |
503190796 |
WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership Price: $31.99 |
| 95 |
31094 |
Cushion This part replaces M31094. Price: $14.22 |
| 96 |
Not |
Available As Spare Part - Loctite 641, 50 ml |
| 97 |
230076 |
Spring Seat This part replaces M230076. Price: $9.89 |
| 98 |
M230078 |
CAM - Call your local BRP dealership Price: $16.99 |
| 100 |
5446652 |
Bushing This part replaces M5446652. Price: $10.13 |
| 101 |
503190798 |
Wheel 139 mm Ass'y Price: $33.99 |
| 102 |
293800060 |
Loctite 243, 10 ml Price: $21.49 |
| 103 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership Price: $11.99 |
| 104 |
293350115 |
Ball Bearing This part replaces 503190795. Price: $12.11 |

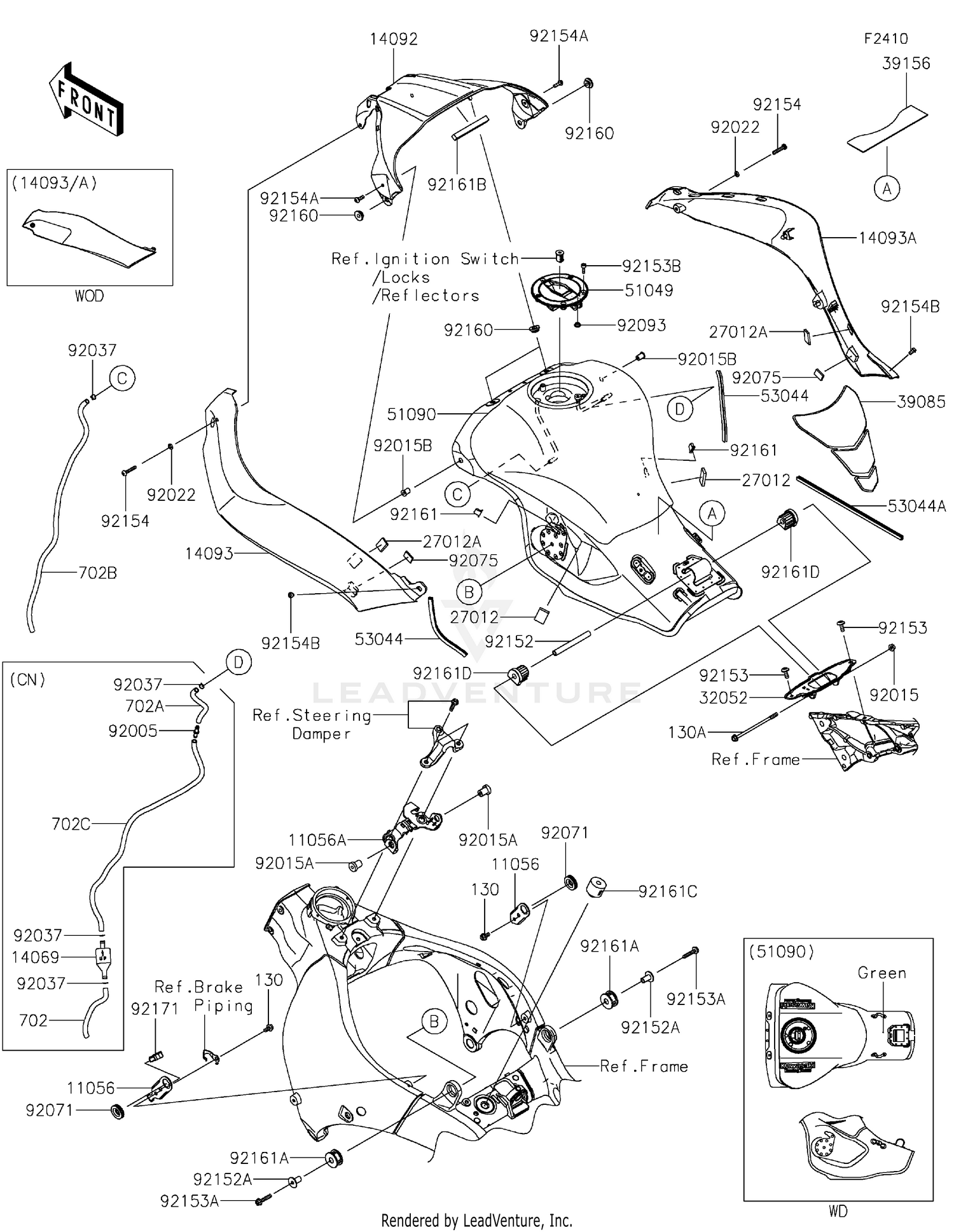

| 11056 |
11056-0242 |
BRACKET,TANK COVER,SIDE Price: $7.98 |
| 11056A |
11056-7782 |
BRACKET,TANK COVER,FR Price: $10.46 |
| 14092 |
14092-0786-777 |
COVER,TANK,CNT,L.GREEN Price: $166.35 |
| 14093 |
14093-0680-777 |
COVER,TANK,LH,L.GREEN Price: $205.31 |
| 14093A |
14093-0681-777 |
COVER,TANK,RH,L.GREEN Price: $205.31 |
| 27012 |
27012-0170 |
HOOK Price: $5.54 |
| 27012A |
27012-0171 |
HOOK Price: $5.91 |
| 32052 |
32052-0154 |
BRACKET-TANK Price: $36.45 |
| 39085 |
39085-0011 |
PAD-TANK Price: $120.02 |
| 39156 |
39156-0745 |
PAD,40X180X1.0 Price: $19.13 |
| 51049 |
51049-0758 |
CAP-TANK,FUEL This part replaces 51049-0721. Price: $140.61 |
| 51090 |
51090-5392-777 |
TANK-COMP-FUEL,L.GREE Price: $1,590.10 |
| 53044 |
53044-1276 |
TRIM,L=157 Price: $8.86 |
| 53044A |
53044-1296 |
TRIM Price: $11.99 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1692 |
NUT,RUBBER,6MM Price: $7.34 |
| 92015B |
92015-1757 |
NUT,WELL,5MM Price: $7.29 |
| 92022 |
92022-183 |
WASHER,6.2X11X1.5 Price: $3.92 |
| 92071 |
92071-1043 |
GROMMET Price: $5.46 |
| 92075 |
92075-1982 |
DAMPER Price: $4.39 |
| 92093 |
92093-1030 |
SEAL,FUEL TANK CAP Price: $7.77 |
| 92152 |
92152-1182 |
COLLAR,6.8X10X60 Price: $4.83 |
| 92152A |
92152-2200 |
COLLAR,6.8X10X20.1 Price: $6.24 |
| 92153 |
92153-1526 |
BOLT,SOCKET,6X16 Price: $1.78 |
| 92153A |
92153-1580 |
BOLT,FLANGED,6X28 Price: $2.15 |
| 92153B |
92153-1616 |
BOLT,SOCKET,5X16 Price: $1.34 |
| 92154 |
92154-0206 |
BOLT,SOCKET,6X30 Price: $2.75 |
| 92154A |
92154-0209 |
BOLT,SOCKET,5X16 Price: $2.75 |
| 92154B |
92154-0211 |
BOLT,SOCKET,5X10 Price: $2.12 |
| 92160 |
92160-1613 |
DAMPER Price: $3.74 |
| 92161 |
92161-0365 |
DAMPER Price: $5.33 |
| 92161A |
92161-0869 |
DAMPER,10X30X16 Price: $4.41 |
