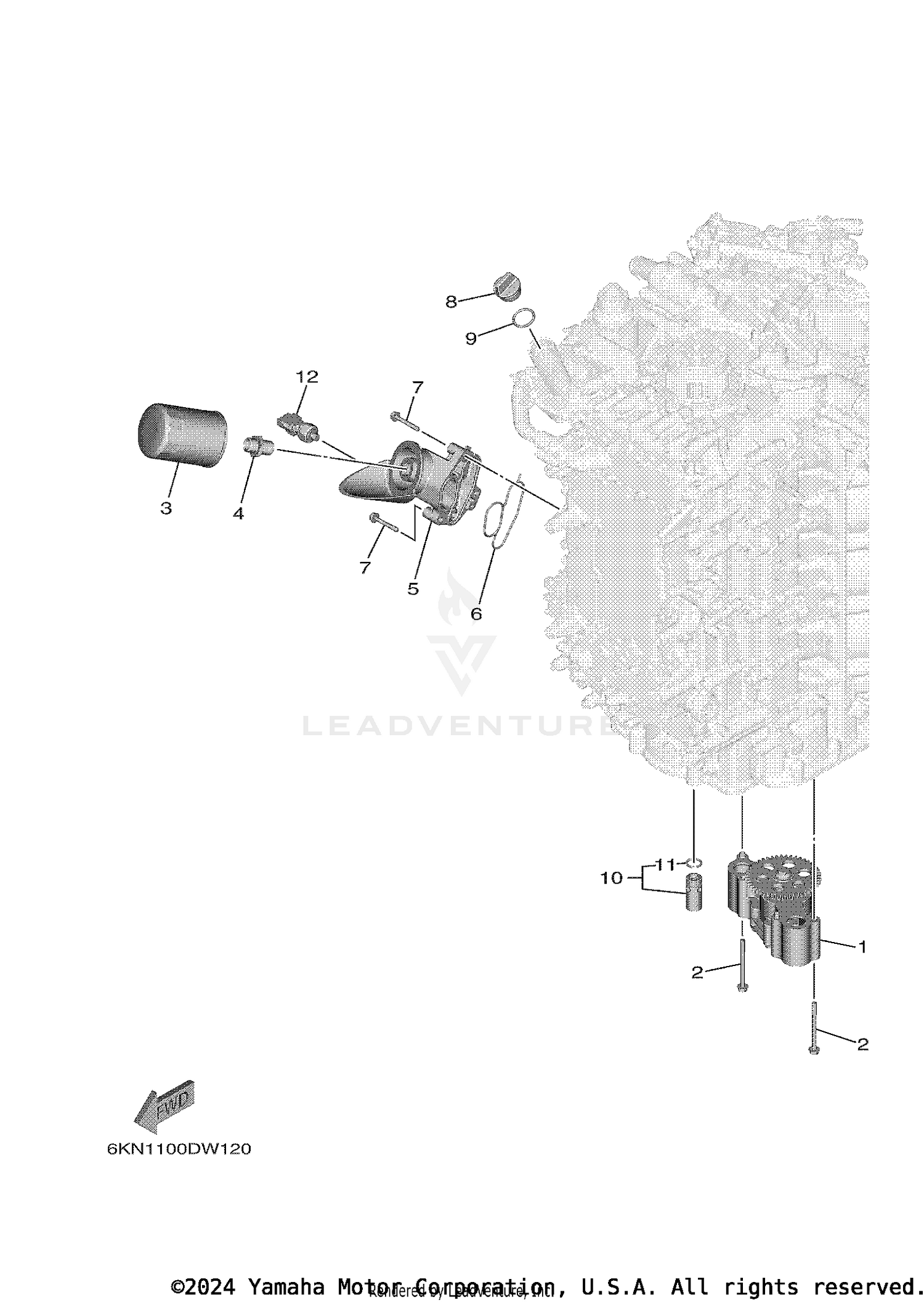

OIL PUMP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6GR-13300-01-00 | OIL PUMP ASSY Price: $534.35 |
| 2 | 95817-06075-00 | BOLT,FLANGE Price: $9.49 |
| 3 | N26-13440-04-00 | ELEMENT ASSY, OIL Price: $26.90 |
| 4 | 90401-19001-00 | BOLT, UNION Price: $21.85 |
| 5 | 6GR-13446-00-00 | CONNECTOR Price: $149.40 |
| 6 | 6GR-13477-00-00 | GASKET Price: $6.95 |
| 7 | 90105-06151-00 | BOLT, FLANGE Price: $4.60 |
| 8 | 6G8-15363-00-00 | PLUG, OIL Price: $13.50 |
| 9 | 93210-24235-00 | O-RING This part replaces 93210-24M79-00. Price: $8.49 |
| 10 | 6GR-13490-00-00 | RELIEF VALVE ASSY Price: $158.30 |
| 11 | 6GR-13473-00-00 | O-RING Price: $2.15 |
