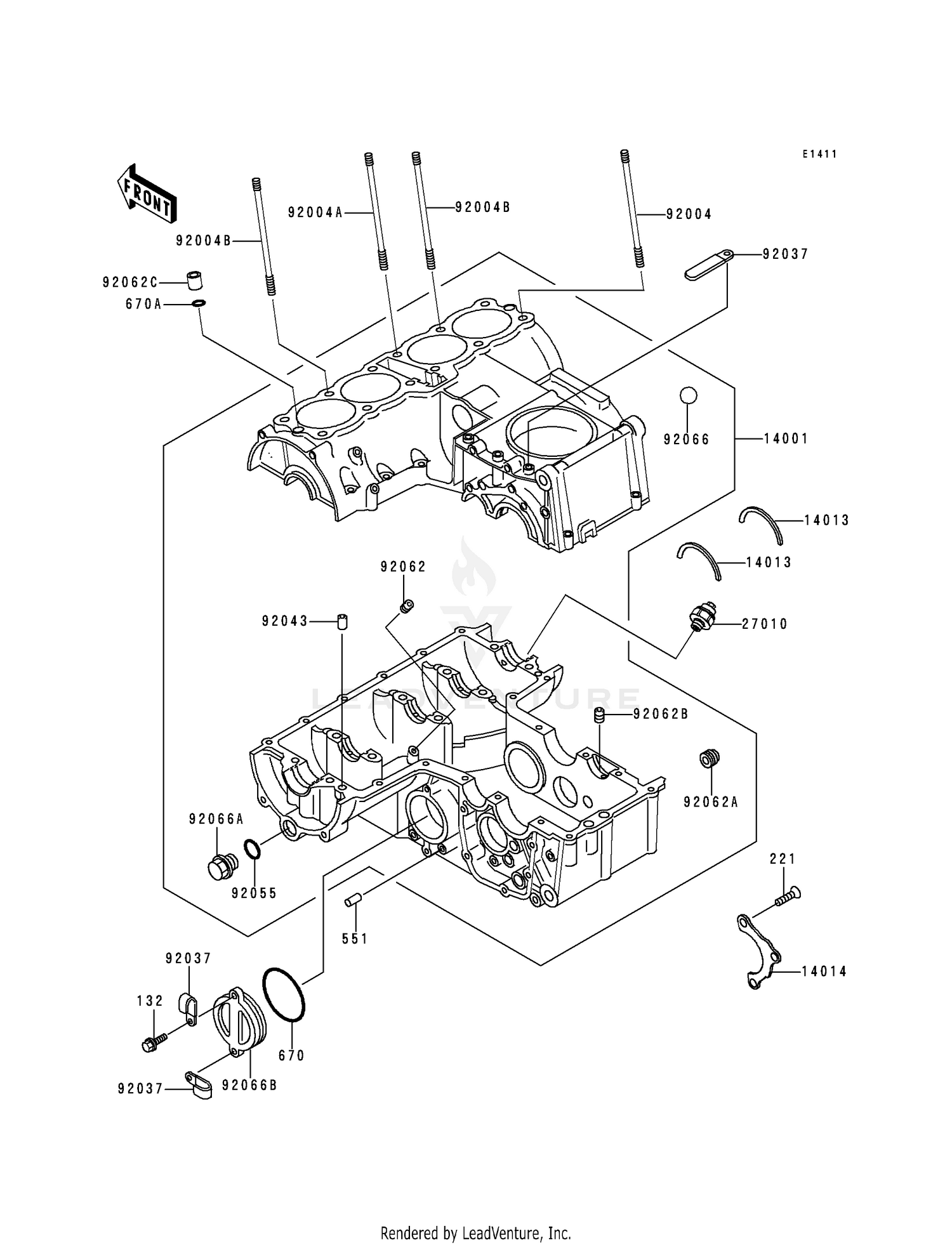

CRANKCASE

CRANKCASE

Parts (20)

RefPart NumberDescription
132 132BD0620 BOLT-FLANGED-SMALL,6X20 This part replaces 132Y0620. Price: $4.12
221 221AA0620 SCREW-CNTSNK HD,6X20 This part replaces 221B0620. Price: $2.40
551 551A0614 PIN-DOWEL,6X14 Price: $3.92
670A 670D2010 O RING,10MM Price: $1.94
14001 14001-5288 SET-CRANKCASE Price: $1,697.51
14013 14013-004 RING-POSITION Price: $10.19
14014 14014-1007 PLATE,POSITIONING Price: $12.05
27010 27010-1313 SWITCH,OIL PRESSURE This part replaces 27010-1155. Price: $40.13
92004 92004-1231 STUD This part replaces 92004-1114. Price: $15.96
92004A 92004-1232 STUD,10X153 This part replaces 92004-1205. Price: $18.74
92004B 92004-1206 STUD,10X93 Price: $14.31
92037 92171-0652 CLAMP,L=60 This part replaces 92037-1069. Price: $2.61
92043 92043-1037 PIN,DOWEL,10X14 Price: $0.74
92055 92055-1146 RING-O,20X2 Price: $8.58
92062 92062-1079 NOZZLE,6X8,BLACK This part replaces 92062-011. Price: $8.58
92062A 92062-014 NOZZLE Price: $9.89
92062B 92062-1081 NOZZLE,6X8,SILVER This part replaces 92062-015. Price: $6.47
92062C 92062-016 NOZZLE Price: $6.16
92066 92066-057 PLUG,RUBBER BALL,6.7 Price: $5.18
92066A 92066-1394 PLUG This part replaces 92066-066. Price: $10.97
