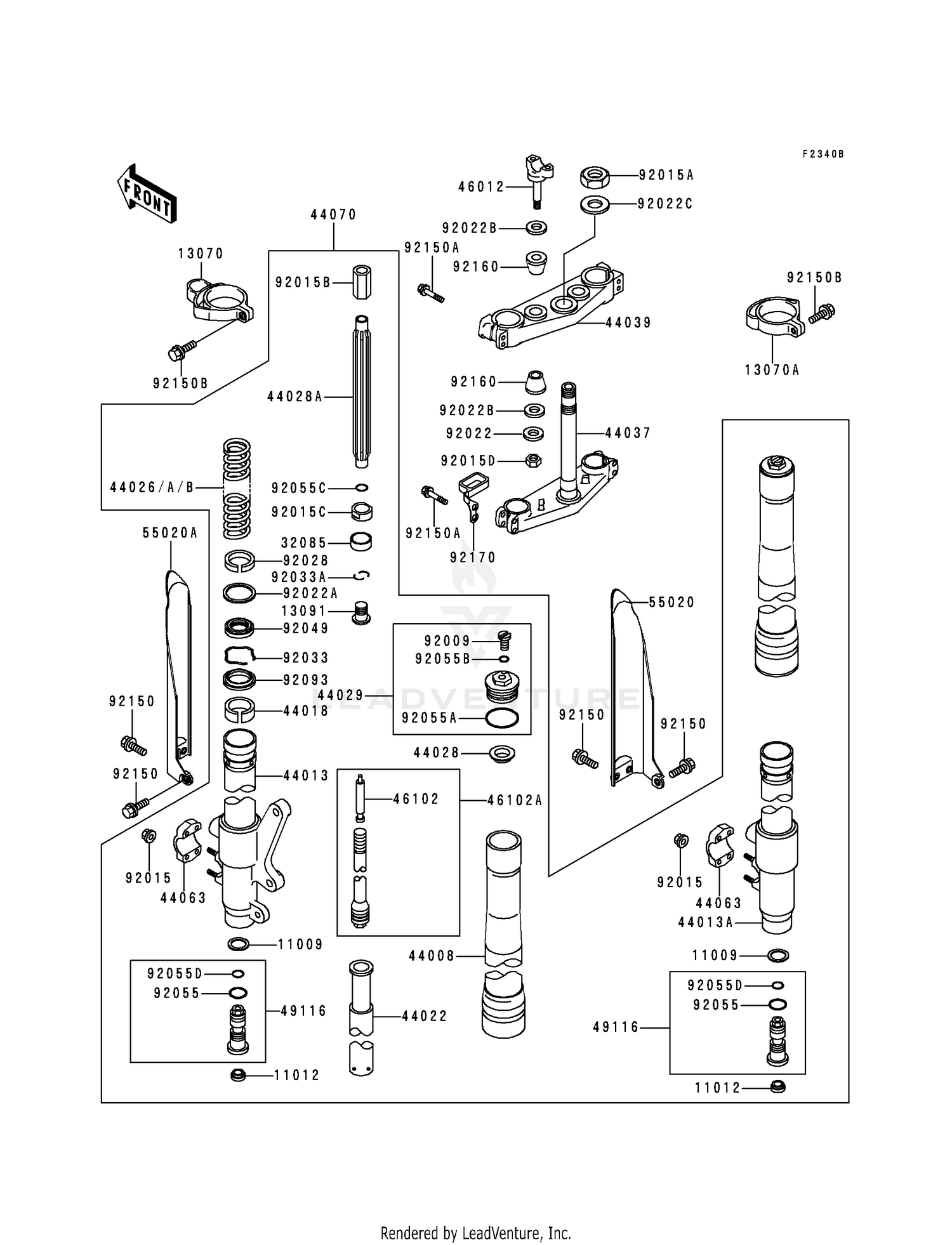

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1791 |
GASKET Price: $5.05 |
| 11012 |
11012-1692 |
CAP Price: $6.16 |
| 13070 |
13070-1277-RE |
GUIDE,PROTECTOR,LH,J. Price: $31.74 |
| 13070A |
13070-1278-RE |
GUIDE,PROTECTOR,RH,J. Price: $25.37 |
| 13091 |
13091-1651 |
HOLDER Price: $28.70 |
| 32085 |
32085-1323 |
STOPPER Price: $20.04 |
| 44008 |
44008-1033-14 |
PIPE-FORK OUTER,GOLD Price: $584.64 |
| 44013 |
44013-1401 |
PIPE-FORK INNER,LH Price: $442.61 |
| 44013A |
44013-1402 |
PIPE-FORK INNER,RH Price: $422.31 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44022 |
44022-1304 |
CYLINDER-FORK Price: $266.31 |
| 44026A |
44026-1592 |
SPRING-FRONT FORK Price: $83.59 |
| 44028 |
44028-1081 |
GUIDE-FORK SPRING Price: $12.12 |
| 44028A |
44028-1099 |
GUIDE-FORK SPRING Price: $45.54 |
| 44029 |
44029-1156 |
SEAT-FORK SPRING Price: $121.38 |
| 44037 |
44037-1342 |
HOLDER-FORK UNDER Price: $639.74 |
| 44039 |
44039-1266 |
HOLDER-FORK UPPER Price: $181.93 |
| 44063 |
44063-1060 |
HOLDER-FRONT AXLE Price: $54.38 |
| 44070 |
44070-1444-RE |
DAMPER-ASSY,FORK,J.S. Price: $2,946.25 |
| 46012 |
46012-1264 |
HOLDER-HANDLE,LWR Price: $44.98 |
| 46102 |
46102-1340 |
ROD,FORK Price: $27.34 |
| 46102A |
46102-1380 |
ROD,FORK Price: $543.44 |
| 49116 |
49116-1142 |
VALVE-ASSY,FORK Price: $156.85 |
| 55020 |
55020-1493-RE |
GUARD,FORK,RH,J.S.VIO Price: $50.77 |
| 55020A |
55020-1554-RE |
GUARD,FORK,LH,J.S.VIO Price: $50.77 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015B |
92015-1872 |
NUT Price: $28.97 |
| 92015C |
92015-1945 |
NUT Price: $10.24 |
| 92015D |
92210-1184 |
NUT,LOCK,10MM This part replaces 92015-1962. Price: $6.11 |
| 92022 |
92022-1088 |
WASHER,10.2X28X2 Price: $4.69 |
| 92022A |
92022-1299 |
WASHER Price: $8.58 |
| 92022B |
92022-1737 |
WASHER Price: $5.52 |
| 92022C |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1670 |
BUSHING Price: $28.64 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92033A |
92033-1271 |
RING-SNAP Price: $6.87 |
| 92049 |
92049-1373 |
SEAL-OIL Price: $28.98 |
| 92055 |
670B2022 |
O RING,22MM This part replaces 92055-1062. Price: $4.69 |
| 92055A |
92055-1333 |
RING-O,FORK,AIR TUBE Price: $6.00 |
| 92055B |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055C |
92055-1442 |
RING-O Price: $9.21 |
| 92055D |
92055-1462 |
RING-O This part replaces 92055-1513. Price: $3.95 |
| 92093 |
92093-1342 |
SEAL,FORK OUTER TUBE Price: $18.72 |
| 92150 |
92150-1435 |
BOLT,6X12 Price: $4.31 |
| 92150A |
92150-1516 |
BOLT,FLANGED,8X40 Price: $14.15 |
| 92150B |
92150-1802 |
BOLT,5X16 Price: $5.00 |
| 92160 |
92160-1544 |
DAMPER,HANDLE HOLDER Price: $5.11 |
