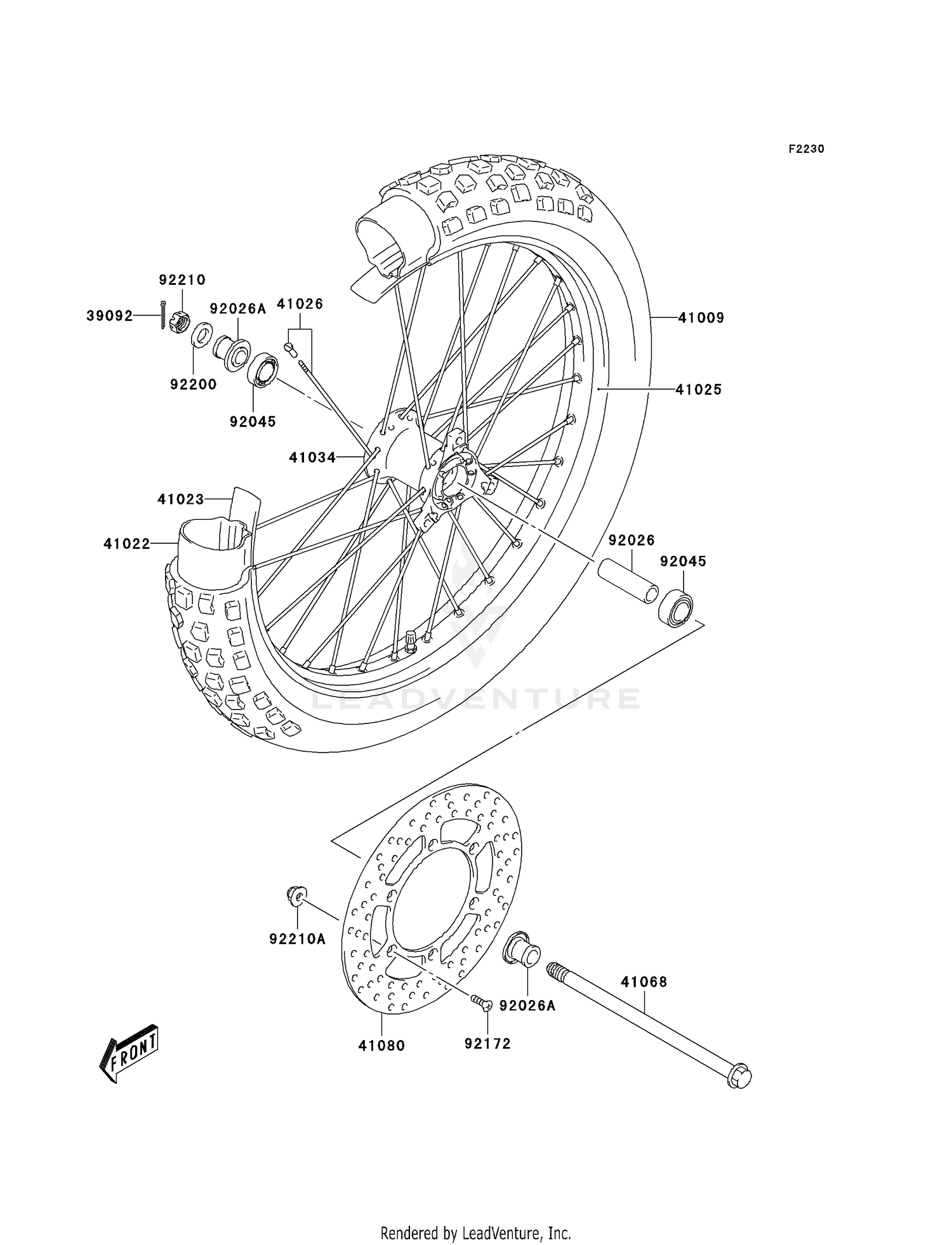

FRONT HUB
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 39092 | 39092-S014 | PIN-HAIR,COTTER This part replaces 39092-S005. Price: $1.92 |
| 41009 | 41009-S007 | TIRE,FRONT Price: $94.42 |
| 41022 | 41022-S003 | TUBE-TIRE Price: $35.12 |
| 41023 | 41023-S003 | BAND-RIM Price: $6.02 |
| 41025 | 41025-S018 | RIM Price: $263.84 |
| 41026 | 41026-S012 | SPOKE-ASSY Price: $44.55 |
| 41034 | 41034-S002 | DRUM-ASSY,FRONT WHEEL Price: $224.97 |
| 41068 | 41068-S005 | AXLE,FRONT Price: $38.70 |
| 41080 | 41080-S004 | DISC Price: $190.45 |
| 92026 | 92026-S050 | SPACER,FR HUB BEARING Price: $13.09 |
| 92026A | 92026-S051 | SPACER,FRONT AXLE,RH Price: $17.61 |
| 92045 | 92045-S002 | BEARING-BALL Price: $21.15 |
| 92172 | 92172-S109 | SCREW Price: $3.01 |
| 92200 | 92200-S079 | WASHER Price: $4.29 |
| 92210 | 92210-S185 | NUT This part replaces 92210-S064. Price: $2.70 |
