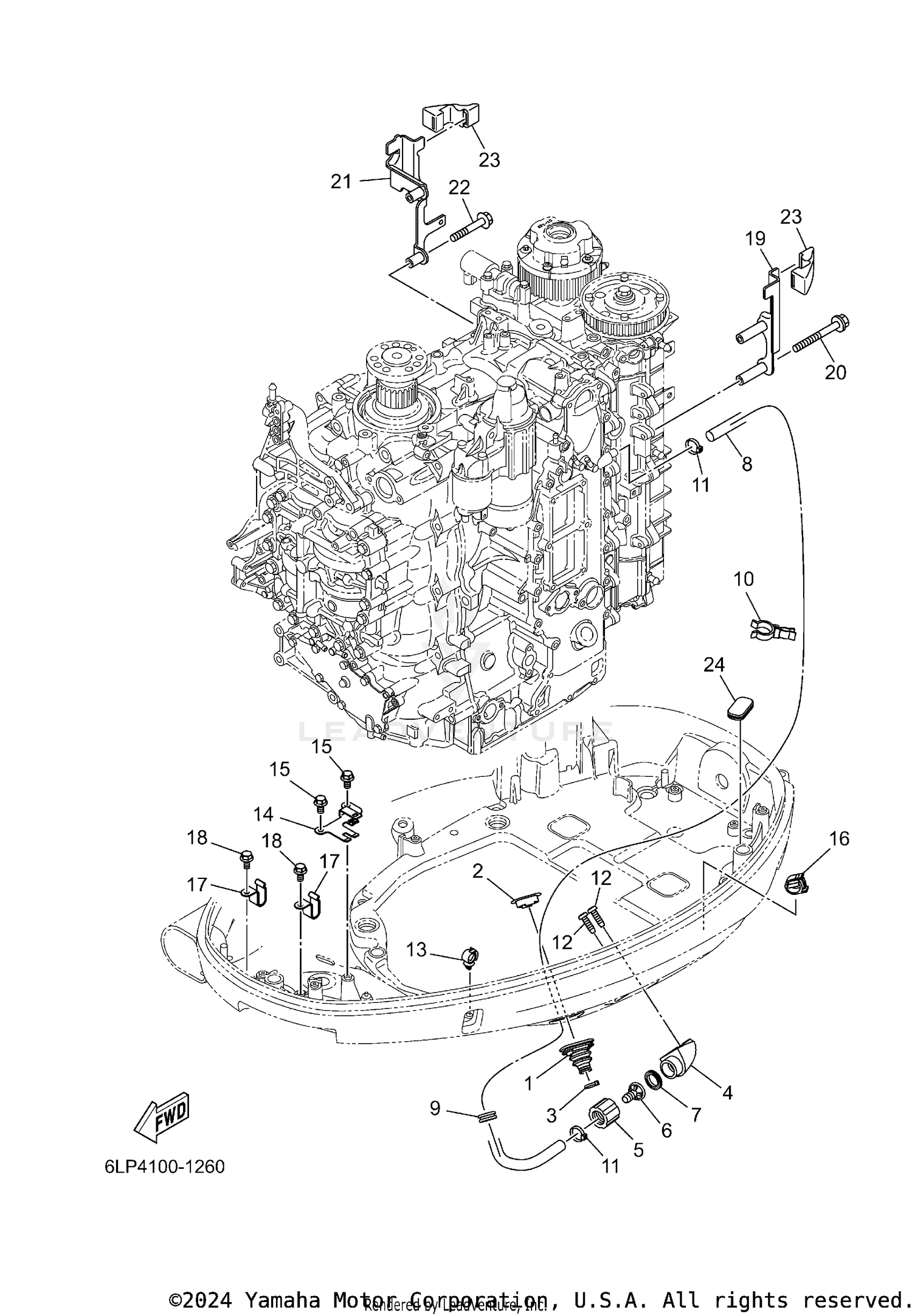

BOTTOM COWLING 3
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-42724-01-00 | GROMMET Price: $10.10 |
| 2 | 6BG-42384-00-00 | SEAL, CAP Price: $6.60 |
| 3 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 4 | 6AW-12572-00-00 | ADAPTER Price: $15.55 |
| 5 | 6R3-12581-10-00 | JOINT, HOSE 1 Price: Call Us |
| 6 | 6AW-12582-00-00 | JOINT, HOSE 2 Price: $5.95 |
| 7 | 6R3-12583-10-00 | GASKET, HOSE JOINT Price: $3.55 |
| 8 | 6LH-42541-00-00 | PIPE 1 Price: $27.10 |
| 9 | 90480-19368-00 | GROMMET This part replaces 90480-19031-00. Price: $4.75 |
| 10 | 90464-21256-00 | CLAMP Price: $4.08 |
| 11 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 12 | 97780-60520-00 | SCREW, TAPPING Price: $4.49 |
| 13 | 90464-13249-00 | CLAMP Price: $3.55 |
| 14 | 6LH-8366G-00-00 | BRACKET 3 Price: $10.40 |
| 15 | 95D95-06012-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 16 | 90464-18004-00 | CLAMP Price: $4.40 |
| 17 | 90462-12013-00 | CLAMP Price: $5.05 |
| 18 | 95D95-06012-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 19 | 6DA-11998-00-00 | BRACKET 1 Price: $55.35 |
| 20 | 95D95-06065-00 | BOLT, FLANGE DEEP Price: $1.40 |
| 21 | 6DA-11999-00-00 | BRACKET 2 Price: $77.70 |
| 22 | 95D95-06040-00 | BOLT, FLANGE DEEP Price: $1.10 |
| 23 | 6CB-42662-02-00 | DAMPER Price: $6.40 |
