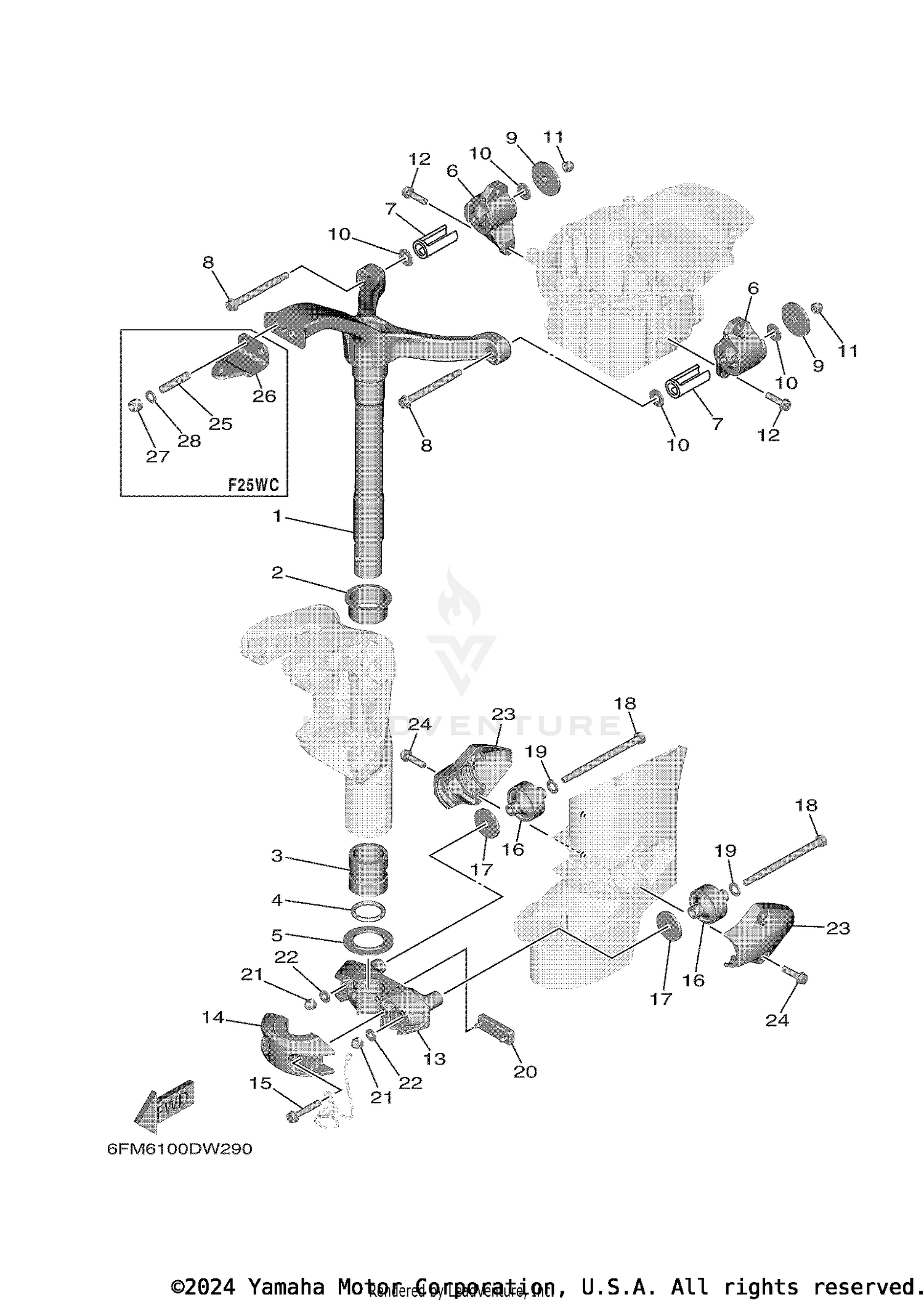

| Ref | Part Number | Description |
|---|
| 2 |
90381-45001-00 |
BUSH, SOLID Price: $7.70 |
| 3 |
90386-38M89-00 |
BUSH This part replaces 90386-38M32-00. Price: $46.25 |
| 4 |
93210-37MH7-00 |
O-RING Price: $6.40 |
| 5 |
90386-38002-00 |
BUSH Price: $4.60 |
| 6 |
6FM-44514-10-CA |
MOUNT DAMPER, UPPER SIDE This part replaces 6FM-44514-10-8D. Price: $202.65 |
| 7 |
6FM-44532-00-00 |
STOPPER, UPPER MOUNT Price: $9.35 |
| 8 |
90109-08241-00 |
BOLT Price: $11.10 |
| 9 |
90201-08120-00 |
WASHER, PLATE Price: $6.40 |
| 10 |
90201-09014-00 |
WASHER, PLATE Price: $1.55 |
| 11 |
95380-08800-00 |
NUT, CROWN Price: $12.49 |
| 12 |
97E75-08530-00 |
BOLT, HEXAGON W/W Price: $1.90 |
| 13 |
6FM-44551-00-8D |
HOUSING, LOWER MOUNT RUBBER 1 Price: $110.35 |
| 14 |
6FM-44552-00-8D |
HOUSING, LOWER MOUNT RUBBER 2 Price: $72.05 |
| 15 |
97E75-08545-00 |
BOLT, HEXAGON W/W Price: $2.25 |
| 16 |
6FM-44555-11-00 |
MOUNT DAMPER, LOWER Price: $41.65 |
| 17 |
90201-10077-00 |
WASHER, PLATE Price: $5.65 |
| 18 |
90101-08M02-00 |
BOLT Price: $9.49 |
| 19 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
| 21 |
95380-08800-00 |
NUT, CROWN Price: $12.49 |
| 22 |
90201-08M08-00 |
WASHER, PLATE Price: $6.85 |
| 23 |
6FM-44553-00-8D |
COVER, LOWER MOUNT Price: $52.40 |
| 24 |
97E75-08530-00 |
BOLT, HEXAGON W/W Price: $1.90 |
| 25 |
90116-10064-00 |
BOLT, STUD Price: $4.15 |
| 26 |
65W-48511-01-00 |
HOOK, STEERING Price: $49.20 |
| 27 |
90185-10027-00 |
NUT, SELF-LOCKING Price: $2.40 |
