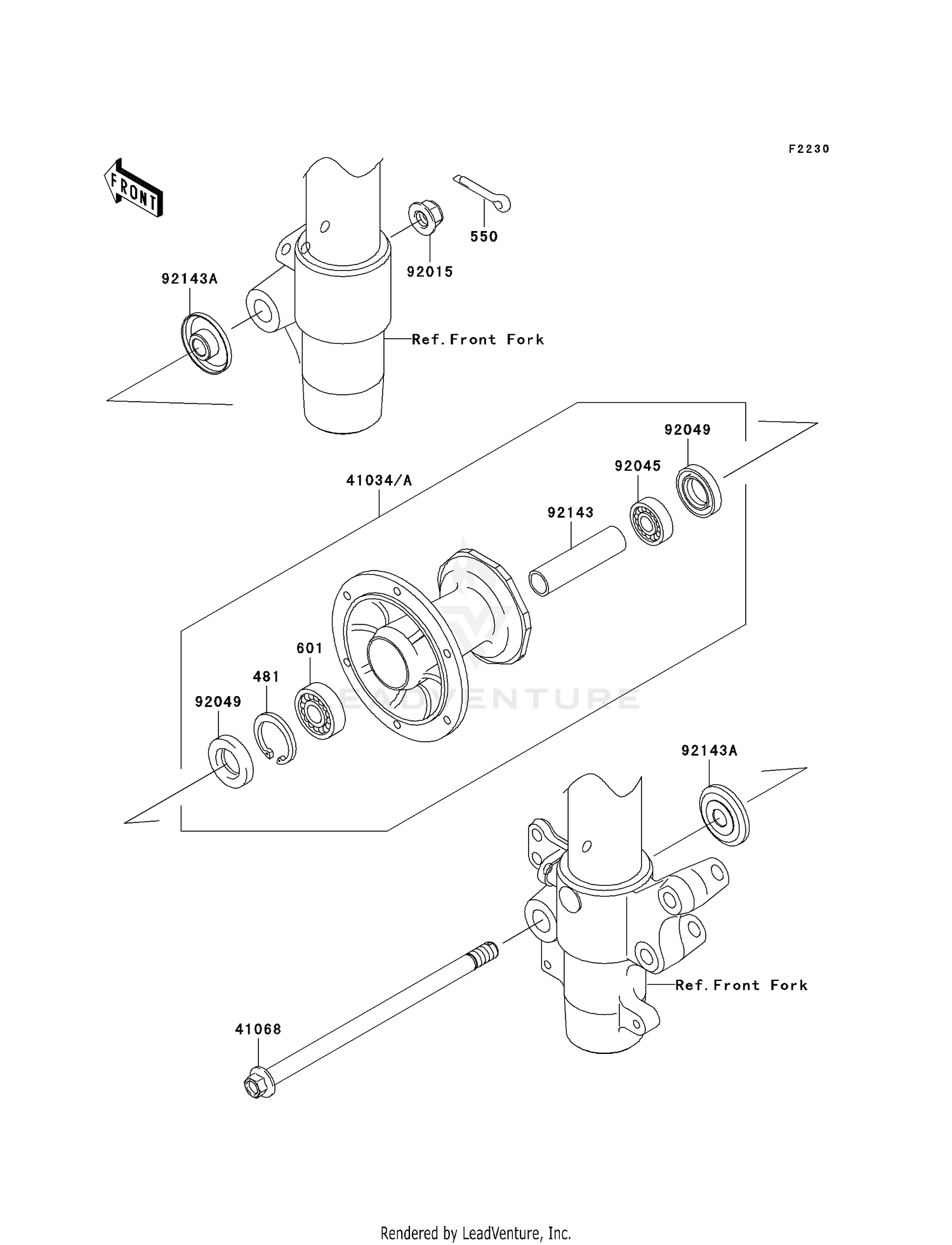

FRONT HUB
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 481 | 481J3700 | CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 550 | 550AA2520 | PIN-COTTER,2.5X20 Price: $1.36 |
| 601 | 601B6301UU | BEARING-BALL,#6301UUC3 Price: $25.54 |
| 41034A | 41034-1310 | DRUM-ASSY,FRONT BRAKE Price: $218.95 |
| 41068 | 41068-1333 | AXLE,FR Price: $29.72 |
| 92015 | 92015-1433 | NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92045 | 92045-1062 | BEARING-BALL,TMB201LLUC3/2A Price: $26.08 |
| 92049 | 92049-1257 | SEAL-OIL,TC20376.5 Price: $9.28 |
| 92143 | 92143-1935 | COLLAR,FR BRAKE DRUM,L=76 Price: $7.83 |
