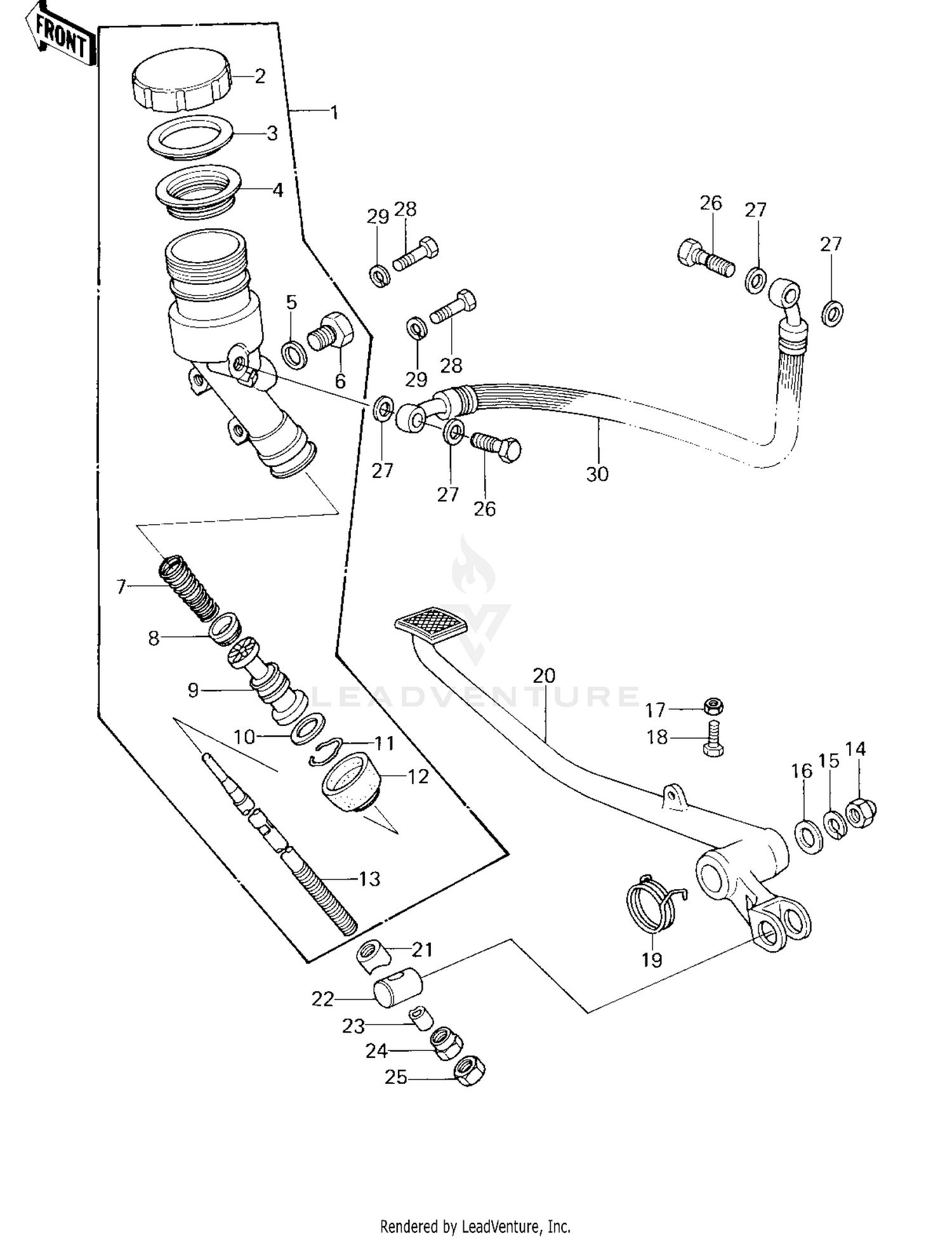

| Ref | Part Number | Description |
|---|
| 1 |
43015-1013 |
CYLINDER ASY,MAST,RR Price: $321.59 |
| 2 |
43026-1054 |
CAP-BRAKE This part replaces 43026-004. Price: $34.87 |
| 3 |
43027-001 |
PLATE-MASTER CYLINDER Price: $10.39 |
| 4 |
43028-003 |
DIAPHRAGM Price: $27.56 |
| 6 |
92001-1073 |
BOLT Price: $12.02 |
| 7 |
43018-002 |
SPRING ASSY, RETURN Price: $39.46 |
| 8 |
43019-002 |
CUP, PRIMARY Price: $25.99 |
| 9 |
43072-004 |
PISTON ASSY Price: $96.81 |
| 10 |
43022-002 |
STOPPER,PISTON Price: $10.26 |
| 11 |
43058-004 |
RING,DUST SEAL Price: $7.64 |
| 12 |
43024-003 |
DUST COVER Price: $25.46 |
| 13 |
43011-1006 |
ROD,BRAKE Price: $59.63 |
| 14 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 15 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 16 |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 17 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 18 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 19 |
92081-1046 |
SPRING,BRAKE PEDAL Price: $9.92 |
| 20 |
43001-1014 |
PEDAL,BRAKE Price: $111.13 |
| 21 |
92027-1065 |
COLLAR,BRAKE ROD Price: $10.41 |
| 22 |
92043-1016 |
PIN,BRAKE ROD Price: $10.41 |
| 23 |
92027-1065 |
COLLAR,BRAKE ROD Price: $10.41 |
| 24 |
92015-1027 |
NUT,LOCK,10M/M Price: $14.04 |
| 25 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 26 |
92153-0627 |
BOLT,OIL,L=23 This part replaces 92002-1888. Price: $5.48 |
| 27 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
| 28 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 29 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
