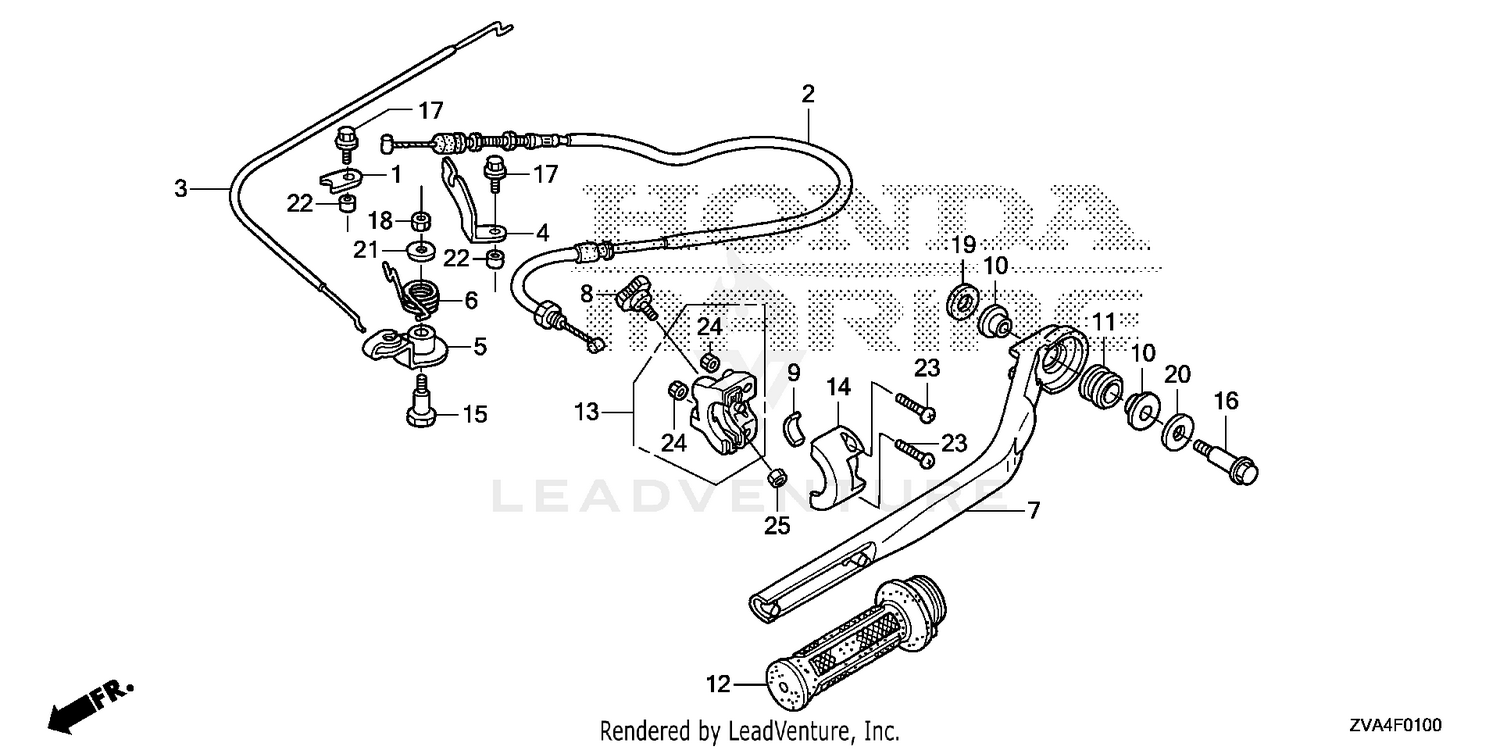

| Ref | Part Number | Description |
|---|
| 1 |
16576-ZVA-000 |
HOLDER, CABLE Price: $3.72 |
| 2 |
17910-ZVA-003 |
SEE PART DETAILS - PRI; CABLE A, THROTTLE Price: $44.92 |
| 3 |
17920-ZVA-000 |
SEE PART DETAILS - PRI; CABLE B, THROTTLE Price: $7.98 |
| 4 |
17921-ZVA-000 |
HOLDER, CABLE Price: $7.00 |
| 5 |
17930-ZVA-000 |
ARM, THROTTLE Price: $22.70 |
| 6 |
17932-ZVA-000 |
SPRING, THROTTLE ARM Price: $3.12 |
| 7 |
53101-ZW6-C00ZA |
SEE PART DETAILS - PRI; HANDLEBAR *NH246* (LOOSY GRAY) Price: $128.62 |
| 8 |
53104-ZVA-000 |
BOLT, FRICTION Price: $9.50 |
| 9 |
53106-ZVA-000 |
BLOCK, THROTTLE FRICTION Price: $9.80 |
| 10 |
53107-ZVA-000 |
COLLAR, HANDLE MOUNTING Price: $3.96 |
| 10a |
508000576 |
Spring Price: $7.99 |
| 10b |
224060201 |
Flat Washer Price: $1.29 |
| 10c |
205444056 |
Socket Head Screw M4 X 40 Price: $2.19 |
| 10d |
232541414 |
Elastic Stop Nut M4 Price: $0.60 |
| 10e |
508000574 |
Grommet Price: $8.79 |
| 11 |
53108-ZVA-010 |
RUBBER, HANDLE MOUNTING Price: $3.02 |
| 12 |
53140-ZVA-000 |
GRIP, THROTTLE Price: $25.26 |
| 13 |
53167-ZVA-000 |
HOUSING, THROTTLE (LOWER) Price: $17.50 |
| 14 |
53168-ZVA-000 |
HOUSING, THROTTLE (UPPER) Price: $14.84 |
| 15 |
90101-ZVA-000 |
BOLT, HEX. (6X24) Price: $5.98 |
| 16 |
90102-ZVA-000 |
BOLT, SPECIAL (8X42) Price: $10.46 |
| 17 |
90117-ZVA-000 |
BOLT, FLANGE (6X12) Price: $2.48 |
| 18 |
90302-ZVA-000 |
NUT, HEX. (6MM) Price: $2.50 |
| 19 |
90501-ZVA-000 |
WASHER, PLAIN (8MM) Price: $4.54 |
| 20 |
508000537 |
Stopper Price: $7.99 |
| 20 |
90509-ZVA-000 |
WASHER (32MM) Price: $4.98 |
| 21 |
90511-ZVA-000 |
WASHER, PLAIN (6MM) Price: $2.28 |
| 24 |
94001-05490-0S |
NUT, HEX. (5MM) Price: $1.26 |
| 30 |
508000820 |
Velcro Strip Price: $8.79 |
| 40 |
508000572 |
Bumper Price: $7.69 |
| 50 |
516005280 |
Caution Decal Hot Parts Price: $0.01 |
| 70 |
508000567 |
Boot Price: $18.49 |
| 80 |
508000661 |
Flute Price: $14.99 |
| 90 |
514052924 |
Norma Clamp Price: $14.49 |
| 100a |
516005876 |
Notice Decal, Air Intake Silencer Price: $4.49 |
| 110 |
293300115 |
O-Ring Price: $3.89 |
| 200 |
508000500 |
Plate Adapter Price: $19.99 |
| 210 |
508000501 |
Air Intake Adapter Price: $21.99 |
| 220 |
508000346 |
Gemi Clamp Price: $10.99 |
