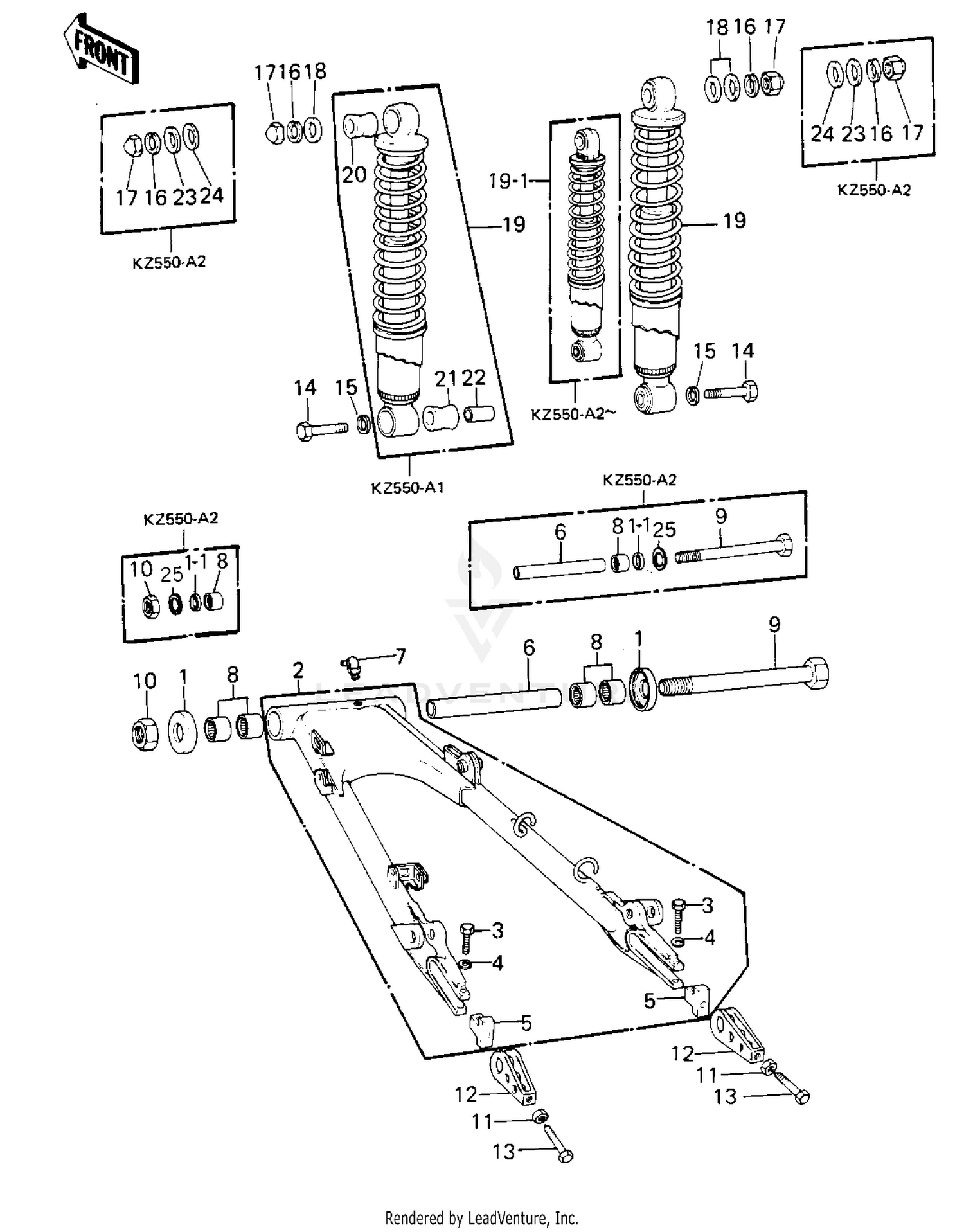

| Ref | Part Number | Description |
|---|
| 3 |
115BA0835 |
BOLT,SMALL UPSET This part replaces 115G0835. Price: $4.87 |
| 4 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 5 |
33044-002 |
STOPPER,CHAIN ADJUST Price: $25.59 |
| 6 |
42036-1018 |
SLEEVE,SWING ARM Price: $52.33 |
| 9 |
33032-1004 |
SHAFT,SWING ARM Price: $101.21 |
| 10 |
92019-011 |
NUT-LOCK,14MM Price: $10.86 |
| 11 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 12 |
33040-056 |
ADJUSTER,CHAIN Price: $29.47 |
| 14 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 15 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 16 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 17 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 20 |
45017-015 |
BUSHING,SHCK ABS RUB Price: $10.00 |
| 21 |
45017-012 |
DAMPER,SHOCKABSORBER Price: $14.90 |
| 22 |
45016-008 |
COLLAR,SHOCKABSORBER Price: $9.91 |
