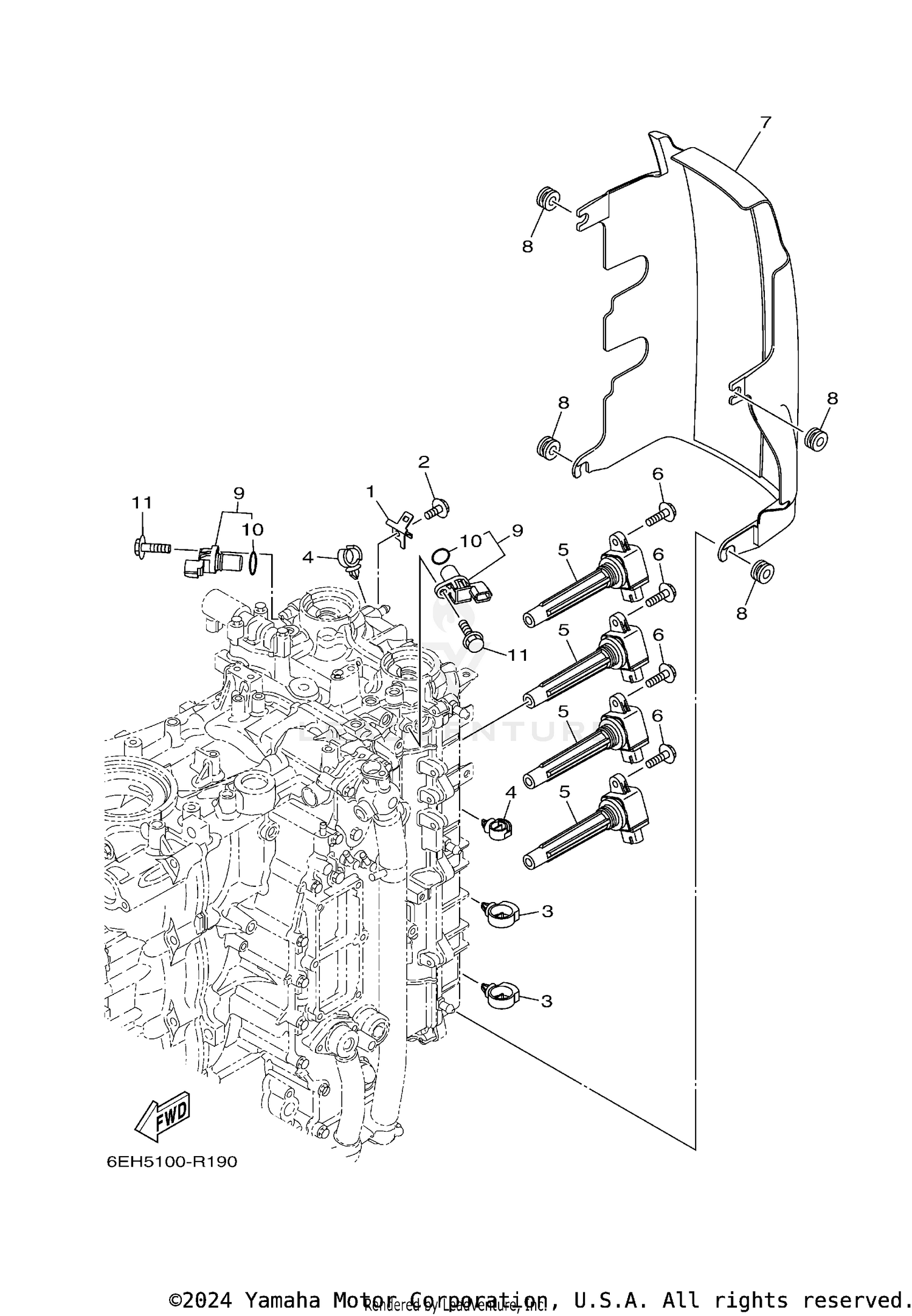

ELECTRICAL 3
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6D8-82389-01-00 | PLATE 2 Price: $4.20 |
| 2 | 95D95-06012-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 3 | 90464-20181-00 | CLAMP Price: $4.72 |
| 4 | 90464-13249-00 | CLAMP Price: $3.55 |
| 5 | 6CB-82310-02-00 | IGNITION COIL ASSY Price: $174.50 |
| 6 | 95D95-06025-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 7 | 6DA-82314-01-00 | COVER, IGNITION CO Price: $32.75 |
| 8 | 90480-12X00-00 | GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 9 | 6P2-85896-00-00 | SENSOR, CAM POSITION Price: $204.10 |
| 10 | 6P2-85075-00-00 | O-RING Price: $10.10 |
