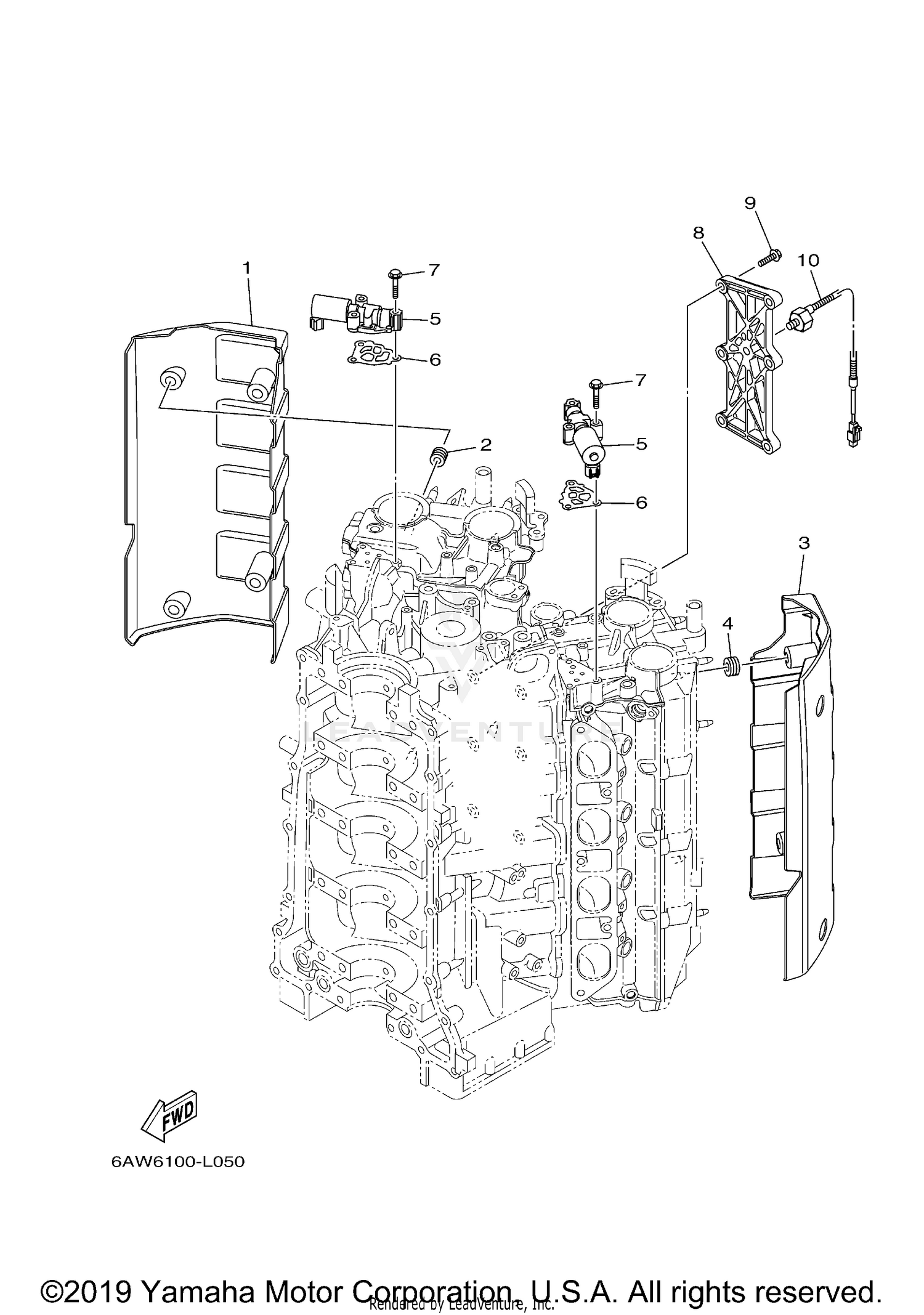

CYLINDER CRANKCASE 3
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6AW-11186-10-00 | COVER, CYLINDER HEAD SIDE 2 Price: $80.95 |
| 2 | 90480-12X00-00 | GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 3 | 6AW-11187-10-00 | COVER, CYLINDER HEAD SIDE 3 Price: $80.95 |
| 4 | 90480-12X00-00 | GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 5 | 6CB-86120-00-00 | SOLENOID VALVE ASSY Price: $272.95 |
| 6 | 6CB-1242F-00-00 | GASKET, FILTER Price: $11.40 |
| 7 | 90105-06035-00 | BOLT, FLANGE Price: $2.49 |
| 8 | 6AW-1135A-00-00 | BRACKET Price: $212.90 |
| 9 | 90105-08240-00 | BOLT, FLANGE Price: $6.25 |
