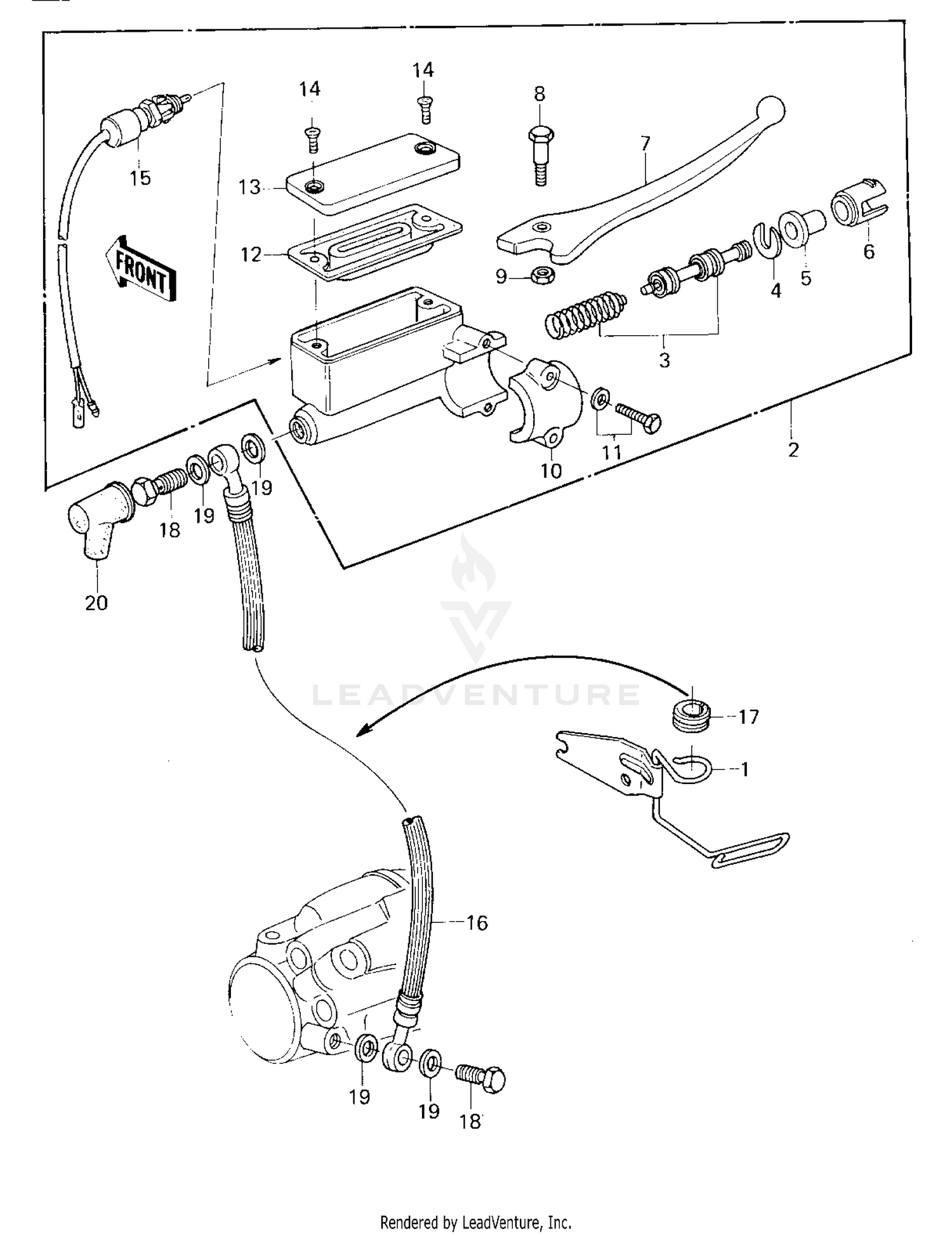

| Ref | Part Number | Description |
|---|
| 1 |
11034-1468 |
BRACKET,FRONT BRAKE Price: $22.72 |
| 2 |
43015-1043 |
CYLINDER ASSY,MASTER Price: $512.91 |
| 3 |
43020-1027 |
PISTON-COMP-BRAKE Price: $92.46 |
| 4 |
43022-1001 |
STOPER,PISTON Price: $4.71 |
| 5 |
49016-1010 |
DUST COVER Price: $13.20 |
| 6 |
14008-1007 |
LINER,PISTON Price: $9.81 |
| 7 |
46092-1011 |
LEVER,FRONT BRAKE Price: $52.98 |
| 8 |
92001-1056 |
BOLT,CLUTCH LEV FITT Price: $14.96 |
| 9 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 10 |
43034-1001 |
HOLDER,MASTER CYLINDR Price: $35.11 |
| 11 |
43033-003 |
BOLT,HEX HEAD,6X25 Price: $4.75 |
| 12 |
43028-1008 |
DIAPHRAGM Price: $36.57 |
| 13 |
43026-1006 |
CAP,OIL CUP Price: $78.23 |
| 14 |
92001-1055 |
SCREW,COUNTERSUNK HED Price: $5.84 |
| 15 |
27010-1028 |
SWITCH,BRAKE Price: $33.48 |
| 16 |
43059-1040 |
HOSE,FR BRAKE L=980MM Price: $81.61 |
| 17 |
43064-006 |
GROMMET,HOSE CLAMP Price: $4.31 |
| 18 |
92153-0627 |
BOLT,OIL,L=23 This part replaces 92002-1888. Price: $5.48 |
| 19 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
