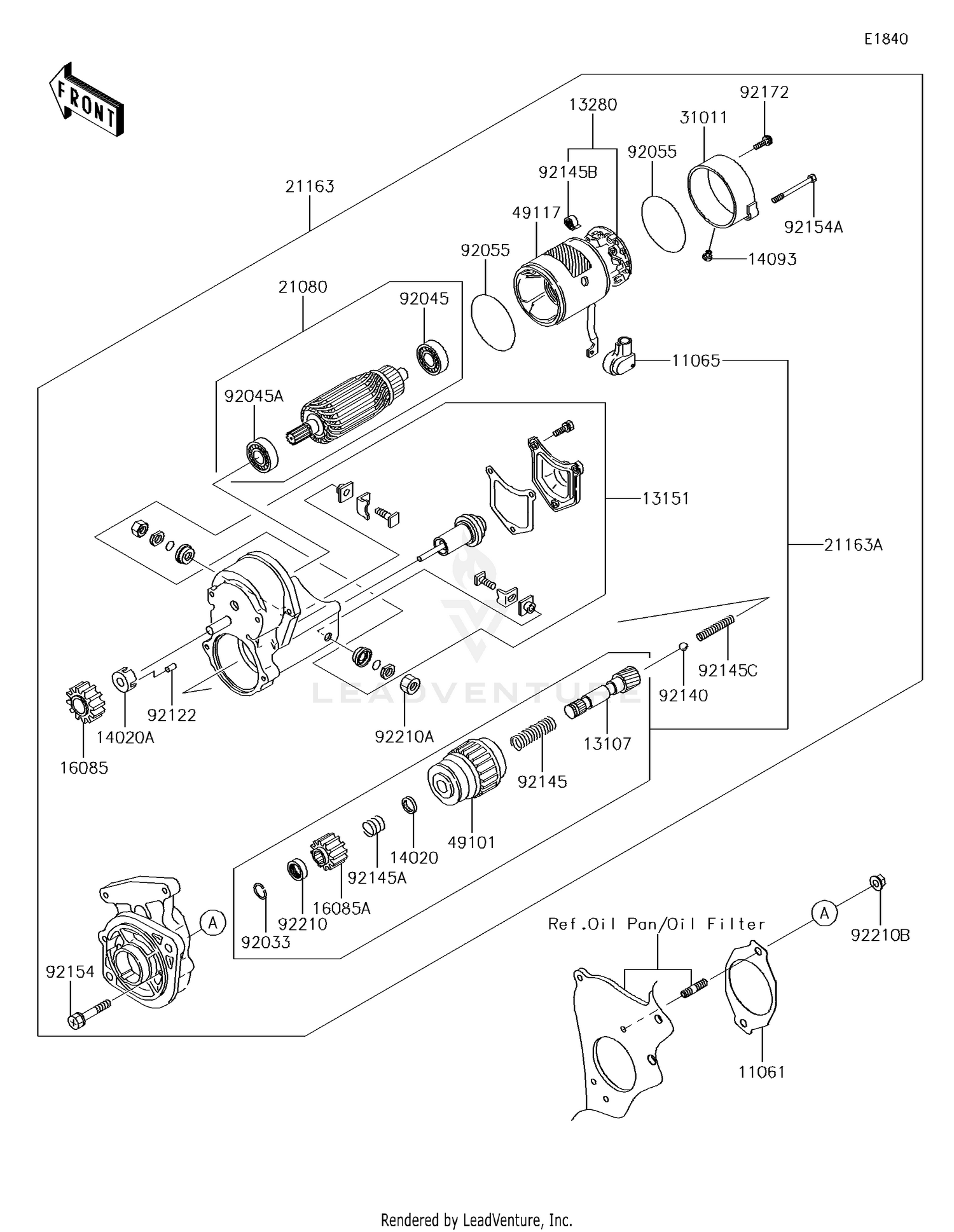

Starter Motor
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 11061 | 11061-1195 | GASKET,STARTER Price: $22.99 |
| 11065 | 11065-0939 | CAP Price: $9.40 |
| 13107 | 13107-0841 | SHAFT Price: $129.22 |
| 13151 | 13151-0573 | SWITCH-COMP,MAGNET Price: $813.14 |
| 13280 | 13280-0863 | HOLDER Price: $64.70 |
| 14020 | 14020-0020 | RETAINER Price: $5.61 |
| 14020A | 14020-0021 | RETAINER Price: $14.34 |
| 14093 | 14093-0449 | COVER Price: $15.26 |
| 16085 | 16085-0649 | GEAR,PINION Price: $201.60 |
| 16085A | 16085-0652 | GEAR,PINION Price: $36.05 |
| 21080 | 21080-0010 | ARMATURE Price: $500.36 |
| 21163 | 21163-0752 | STARTER-ELECTRIC Price: $1,215.94 |
| 21163A | 21163-0753 | STARTER-ELECTRIC Price: $452.11 |
| 31011 | 31011-0029 | FRAME Price: $39.46 |
| 49101 | 49101-0002 | CLUTCH,STARTER Price: $261.84 |
| 49117 | 49117-0593 | YOKE Price: $132.17 |
| 92033 | 92033-0775 | RING-SNAP Price: $10.15 |
| 92045 | 92045-0808 | BEARING-BALL Price: $27.52 |
| 92045A | 92045-0809 | BEARING-BALL Price: $31.82 |
| 92055 | 92055-0863 | RING-O Price: $6.83 |
| 92122 | 92122-0048 | ROLLER Price: $2.92 |
| 92140 | 92140-0017 | BALL Price: $2.47 |
| 92145 | 92145-1713 | SPRING Price: $15.26 |
| 92145A | 92145-1714 | SPRING Price: $2.89 |
| 92145B | 92145-1715 | SPRING Price: $3.91 |
| 92145C | 92145-1716 | SPRING Price: $7.54 |
| 92154 | 92154-2072 | BOLT Price: $7.61 |
| 92154A | 92154-2073 | BOLT Price: $8.36 |
| 92172 | 92172-0988 | SCREW Price: $6.47 |
| 92210 | 92210-1470 | NUT Price: $4.78 |
| 92210A | 92210-1472 | NUT Price: $4.41 |
