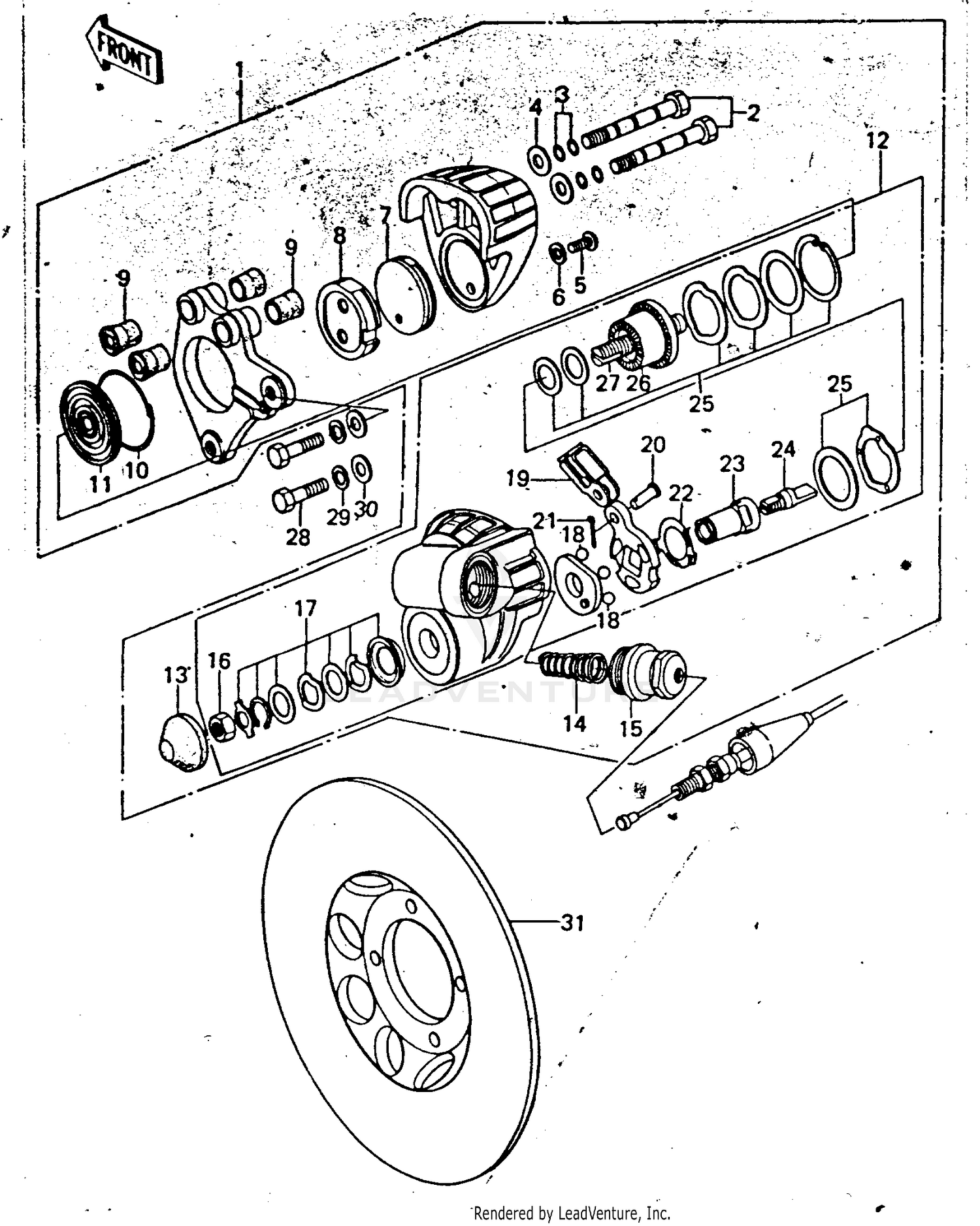

| Ref | Part Number | Description |
|---|
| 2 |
43045-1001 |
BOLT Price: $21.59 |
| 3 |
43063-001 |
BRACKET-BRAKE HOSE Price: $67.11 |
| 4 |
92022-1001 |
WASHER,PLAIN Price: $8.30 |
| 5 |
220AA0610 |
SCREW-PAN-CROS,6X10 This part replaces 220B0610. Price: $3.23 |
| 6 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 7 |
43050-1010 |
PAD B Price: $86.14 |
| 8 |
43050-1009 |
PAD A Price: $86.14 |
| 9 |
43052-002 |
DUST SEAL-SHAFT Price: $11.40 |
| 10 |
92033-1001 |
CIRCLIP Price: $8.22 |
| 11 |
49006-1030 |
BOOT Price: $15.42 |
| 13 |
49006-1029 |
BOOT,OUTER Price: $16.61 |
| 14 |
43018-1001 |
SPRING,RETURN Price: $15.50 |
| 15 |
92066-1001 |
PLUG Price: $40.33 |
| 16 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 17 |
99996-5001 |
REPAIR SET,CALIPER Price: $23.57 |
| 18 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 19 |
11034-1439 |
LEVER Price: $11.25 |
| 20 |
92043-1058 |
PIN Price: $4.06 |
| 21 |
550D1610 |
PIN COTTER 1.6X10 Price: $2.93 |
| 22 |
43022-1004 |
STOPPER Price: $10.65 |
| 23 |
43045-1003 |
SHAFT Price: $43.19 |
| 24 |
43022-1005 |
STOPPER Price: $41.41 |
| 25 |
99996-5002 |
REPAIR SET,CALIPER Price: $33.38 |
| 26 |
13078-1002 |
RATCHET Price: $50.53 |
| 27 |
46102-1003 |
ROD Price: $7.35 |
| 28 |
92007-032 |
BOLT Price: $13.82 |
| 29 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 30 |
410AA1000 |
WASHER-PLAIN-SMALL,10MM This part replaces 410B1000. Price: $0.59 |
