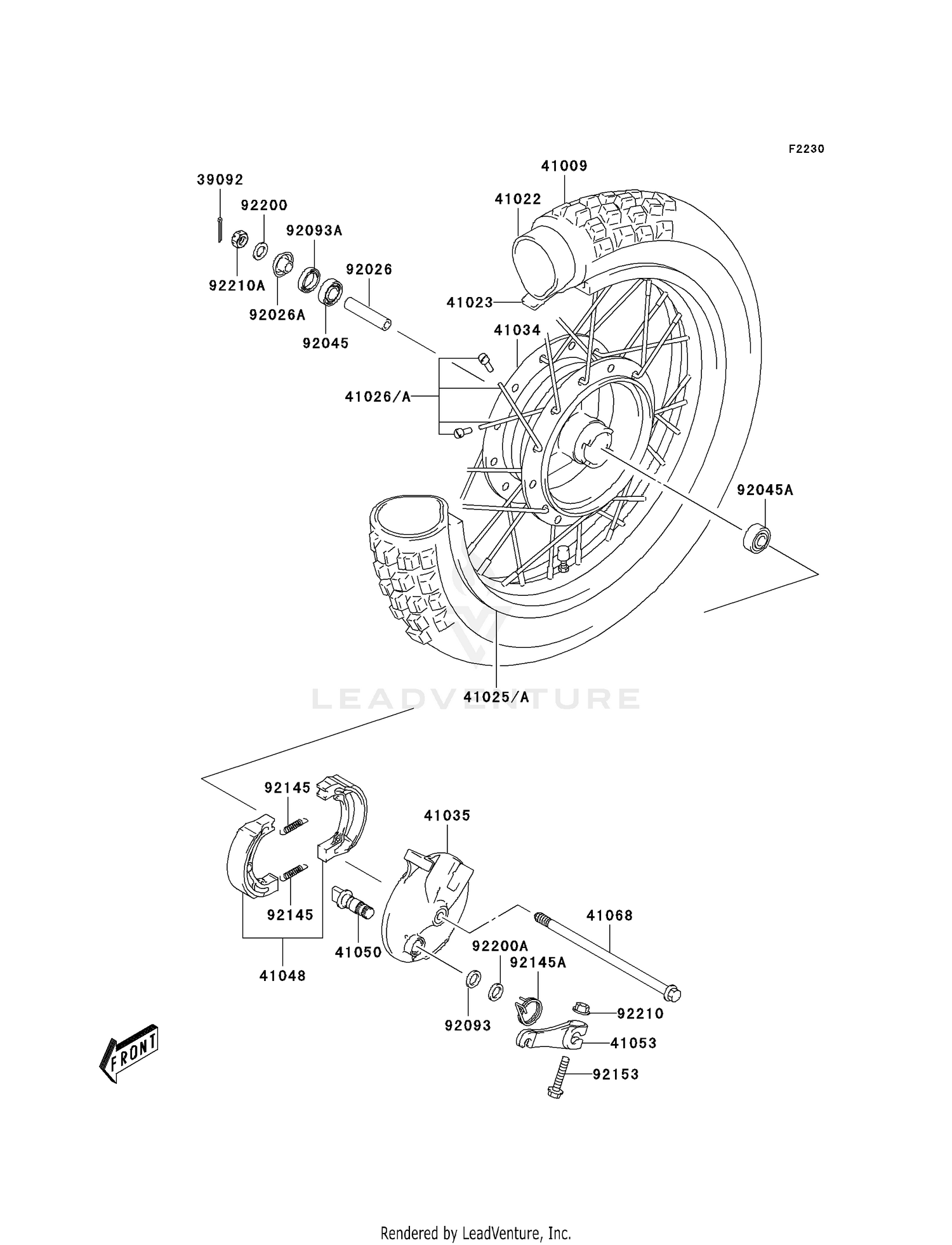

| Ref | Part Number | Description |
|---|
| 39092 |
39092-S014 |
PIN-HAIR,COTTER This part replaces 39092-S005. Price: $1.92 |
| 41009 |
41009-S005 |
TIRE,FRONT Price: $77.70 |
| 41022 |
41022-S001 |
TUBE-TIRE Price: $34.92 |
| 41023 |
41023-S012 |
BAND-RIM This part replaces 41023-S001. Price: $8.44 |
| 41025 |
41025-S001 |
RIM,FR WHEEL,17X1.40 Price: $100.50 |
| 41026 |
41026-S001 |
SPOKE-ASSY,FRONT WHEE Price: $55.94 |
| 41034 |
41034-S001 |
DRUM-ASSY,FRONT WHEEL Price: $128.42 |
| 41035 |
41035-S001 |
PANEL-ASSY-BRAKE Price: $132.13 |
| 41048 |
41048-S002 |
SHOE-BRAKE Price: $44.02 |
| 41050 |
41050-S002 |
CAM-BRAKE Price: $17.41 |
| 41053 |
41053-S002 |
LEVER-BRAKE CAM Price: $14.28 |
| 41068 |
41068-S006 |
AXLE Price: $36.00 |
| 92026 |
92026-S039 |
SPACER,FR HUB BEARING Price: $8.47 |
| 92026A |
92026-S041 |
SPACER,FRONT AXLE,RH Price: $17.97 |
| 92045 |
92045-S028 |
BEARING-BALL,FRONT HU Price: $13.43 |
| 92045A |
92045-S031 |
BEARING-BALL,FRONT HU Price: $17.43 |
| 92093 |
92093-S008 |
SEAL,REAR BRAKE CAM Price: $5.83 |
| 92093A |
92093-S009 |
SEAL,FRONT HUB DUST Price: $4.81 |
| 92145 |
92145-S047 |
SPRING,REAR BRAKE SHO Price: $4.10 |
| 92145A |
92145-S051 |
SPRING,FR BK CAM LEVE Price: $8.47 |
| 92153 |
92153-S520 |
BOLT This part replaces 92153-S130. Price: $2.40 |
| 92200 |
92200-S069 |
WASHER Price: $2.20 |
| 92200A |
92200-S071 |
WASHER Price: $3.25 |
| 92210 |
92210-S188 |
NUT This part replaces 92210-S001. Price: $1.92 |
