| Ref | Part Number | Description |
|---|
| 1 |
205082554 |
Socket Screw M8 X 25 Price: $2.19 |
| 3 |
206260844 |
Socket Set Screw M6 X 8 Price: $1.49 |
| 4 |
207005044 |
Hex. Screw M10 X 1.5 X 50 Price: $3.89 |
| 6 |
207652544 |
Hex. Flange Screw M5 X 25 Price: $0.52 |
| 7 |
207662556 |
Hex. Flange Screw M6 X 25 Price: $4.49 |
| 8 |
207667056 |
Hex. Flange Screw M6 X 70 Price: $4.49 |
| 10 |
207683044 |
Hex. Flange Screw M8 X 30 Price: $1.69 |
| 11 |
207684044 |
Hex. Flange Screw M8 X 40 Price: $1.49 |
| 12 |
208562531 |
Phillips Screw M6 X 25 Price: $2.19 |
| 13 |
230100054 |
Hex Screw M10 x 100 Price: $6.59 |
| 14 |
232061404 |
Hexagonal Nut M6 Price: $0.34 |
| 15 |
232561434 |
Elastic Stop Nut M6 Price: $1.99 |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 Price: $0.58 |
| 17 |
503191910 |
Washer Price: $2.39 |
| 18 |
233201466 |
Flange Elastic Nut M10 Price: $3.29 |
| 19 |
233251434 |
Flange Elastic Nut M5 Price: $2.09 |
| 20 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 21 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 22 |
233601416 |
Elastic Locking Nut M10 X 1.5 Price: $1.69 |
| 23 |
233601466 |
Elastic Locking Nut M10 Price: $2.19 |
| 25 |
234201474 |
Conical Spring Washer 10 mm Price: $1.69 |
| 26 |
250000605 |
Hex. Screw S.Grip M10 X 55 Price: $8.29 |
| 27 |
250000619 |
Hex Screw M6 X 25 Price: $1.09 |
| 29 |
250200128 |
Flat Washer 8 mm Price: $4.49 |
| 30 |
250200140 |
Washer Price: $1.09 |
| 31 |
250200143 |
Flat Washer Price: $3.29 |
| 33 |
293150013 |
Pop Rivet 3/16" Price: $1.39 |
| 34 |
293370013 |
E-Circlip Price: $0.67 |
| 36 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership Price: $104.99 |
| 37 |
293800060 |
Loctite 243, 10 ml Price: $21.49 |
| 38 |
408200700 |
Grease Fitting Price: $3.59 |
| 39 |
414936000 |
Bushing Price: $13.99 |
| 40 |
415129371 |
Retaining Ring Price: $12.49 |
| 41 |
415129780 |
Retaining Ring Price: $16.49 |
| 42 |
503144300 |
Upper Axle, Pivot Arm Price: $11.65 |
| 43 |
503168800 |
Retaining Ring Price: $15.49 |
| 44 |
503189117 |
Urethane Bushing Price: $8.19 |
| 46 |
503189156 |
Pivot Arm Axle Price: $21.99 |
| 47 |
503189157 |
Washer Price: $3.39 |
| 48 |
503189271 |
Bushing Price: $13.99 |
| 49 |
503189282 |
Bushing Price: $4.34 |
| 50 |
503189324 |
Bushing Price: $14.15 |
| 52 |
503190396 |
Ball Bearing Price: $9.49 |
| 54 |
503190428 |
Rear Wheel Spacer Price: $8.29 |
| 55 |
503190429 |
Rear Axle Price: $61.99 |
| 56 |
503190432 |
Washer Price: $14.49 |
| 57 |
503190434 |
Labyrinth Seal Price: $6.19 |
| 58 |
503190576 |
Rubber Stopper Price: $13.49 |
| 59 |
503190643 |
Axle Bar (Long) Price: $17.49 |
| 61 |
861805547 |
Spring Support Kit This part replaces 503190754. Price: $10.99 |
| 62 |
503191108 |
Spacer Price: $19.99 |
| 63 |
503191152 |
Black, Wheel Ass'y 147 mm Price: $48.49 |
| 64 |
861805547 |
Spring Support Kit This part replaces 503191183. Price: $10.99 |
| 66 |
503191209 |
Pivot Arm Price: $129.99 |
| 67 |
503191215 |
Upper Shaft Price: $39.99 |
| 68 |
503191259 |
Center Bushing Price: $11.99 |
| 69 |
503191260 |
Axle Strap Price: $31.99 |
| 70 |
503191262 |
Bushing Price: $15.79 |
| 71 |
503191273 |
Washer Price: $1.39 |
| 72 |
503191279 |
Lower Shaft Price: $29.99 |
| 75 |
503191311 |
Black, Wheel Ass'y 147 mm Price: $48.49 |
| 77 |
503191555 |
Swivel Bushing Price: $7.83 |
| 78 |
503191556 |
Extended Bushing Price: $7.83 |
| 79 |
503191565 |
LH Cam Adjuster Price: $16.99 |
| 80 |
503191566 |
RH Cam Adjuster Price: $16.99 |
| 82 |
503191619 |
Slider 137 Price: $34.99 |
| 84 |
503191624 |
Full Moon Wheel Ass'y, 147 mm Price: $48.49 |
| 86 |
503191651 |
Washer Price: $8.49 |
| 89 |
503191738 |
Black, Wheel Ass'y 155 mm Price: $48.49 |
| 91 |
503191752 |
Front Arm Price: $370.99 |
| 94 |
503191820 |
Wheel Cup M6 Price: $5.09 |
| 95 |
503193548 |
Ball Bearing This part replaces 503191982. Price: $17.99 |
| 98 |
503191742 |
Black, Wheel Ass'y, 180 mm Price: $51.99 |
| 102 |
503192211 |
Rocker Price: $85.99 |
| 103 |
503192252 |
Rear Arm Ass'y This part replaces 503192253. Price: $98.49 |
| 104 |
503196617 |
Link Rod This part replaces 503192255. Price: $44.49 |
| 105 |
503192080 |
RH Spring Price: $69.99 |
| 107 |
503192081 |
LH Spring Price: $69.99 |
| 110 |
503192299 |
Runner Protector Price: $25.99 |
| 111 |
503192360 |
Stopper Strap Price: $21.99 |
| 117 |
503192440 |
Bolt M8 X 248mm Price: $31.99 |
| 118 |
503192494 |
Washer Price: $3.29 |
| 119 |
503192496 |
Washer Price: $0.79 |
| 120 |
120CB0616 |
BOLT-SOCKET,6X16 Price: $1.27 |
| 120 |
503192583 |
Tensioner Price: $8.49 |
| 128 |
503196943 |
Spacer This part replaces 503192678. Price: $11.49 |
| 129 |
503192771 |
Black, Wheel Cap Price: $2.49 |
| 130 |
130BB1030 |
BOLT-FLANGED,10X30 Price: $6.55 |
| 130 |
503193037 |
Bushing Price: $16.18 |
| 132 |
132BB0816 |
BOLT-FLANGED-SMALL,8X16 Price: $4.12 |
| 132 |
503193187 |
Rear Shock Seal HPG Price: $248.99 |
| 134 |
503193227 |
Bolt M10 X 251MM Price: $17.49 |
| 136 |
503193372 |
Screw M8 X 90 Price: $4.49 |
| 138 |
503193435 |
Pivot Axle Price: $41.99 |
| 140 |
503193894 |
Casted Support Price: $16.99 |
| 141 |
503195714 |
Rail Suspension 137 This part replaces 503193899. Price: $244.99 |
| 142 |
572080700 |
Bushing Price: $17.39 |
| 143 |
732601197 |
Bolt M8, Short Price: $15.99 |
| 144 |
250000817 |
Hex Screw With Nilon Patch, M10 X 35 Price: $4.49 |
| 146 |
205503554 |
Socket Head Screw M10 X 35 Price: $7.69 |
| 148 |
503191552 |
Bushing Price: $5.93 |
| 160 |
503192266 |
Center Shock Price: $164.49 |
| 161 |
505073625 |
Adjustment Cam Price: $13.49 |
| 162 |
503191882 |
Black, Spring Price: $63.99 |
| 163 |
503193663 |
Protector Price: $38.99 |
| 164 |
503191872 |
Spring Guide Price: $2.39 |

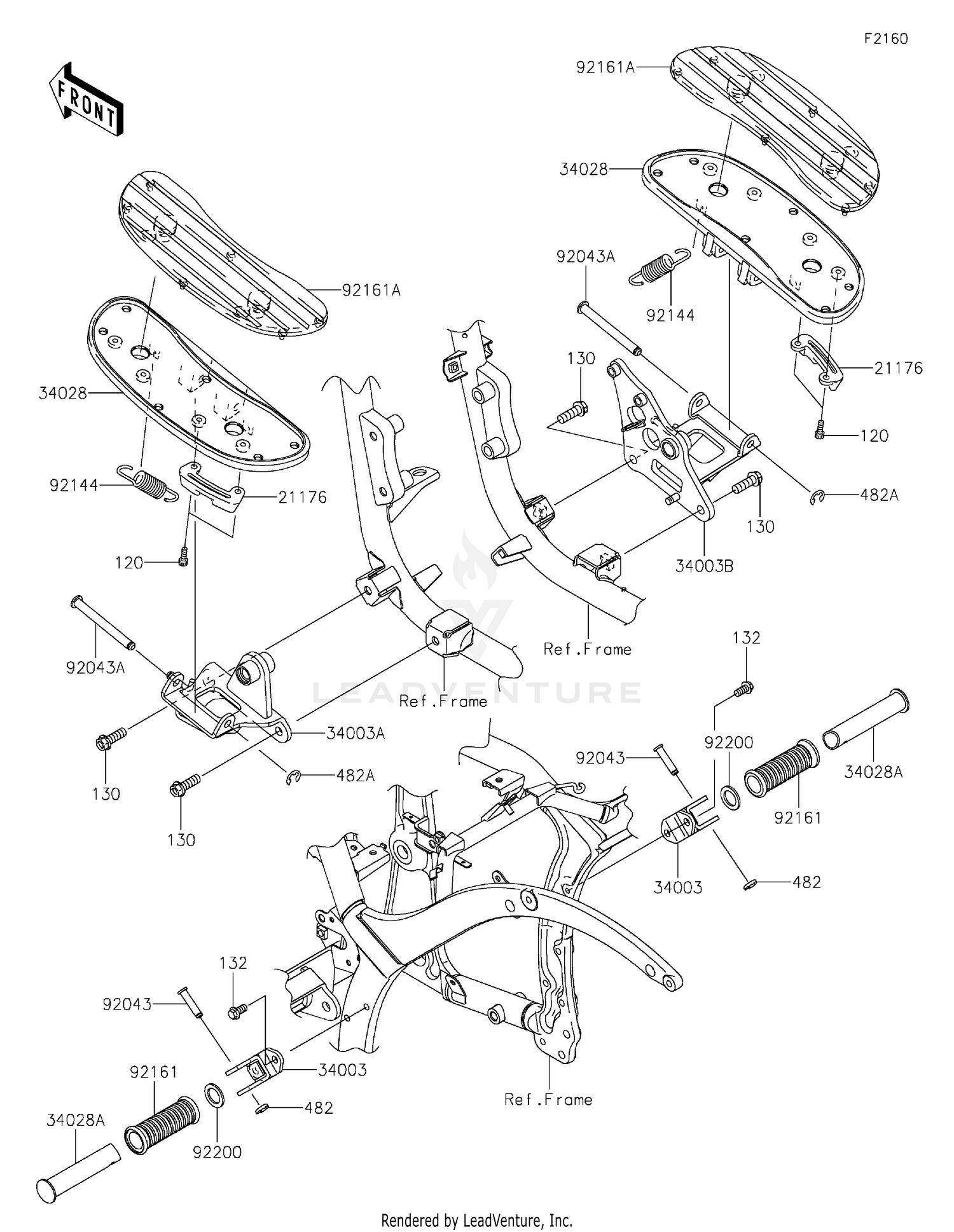

| 482 |
482EA7000 |
CIRCLIP-TYPE-E Price: $3.92 |
| 482A |
482EA8000 |
CIRCLIP-TYPE-E,8MM Price: $0.68 |
| 21176 |
21176-0021 |
SENSOR,BANK Price: $19.88 |
| 34003 |
34003-0030-18R |
HOLDER-STEP,RR,F.S.BLACK Price: $39.64 |
| 34003A |
34003-0039 |
HOLDER-STEP,FR,LH Price: $162.09 |
| 34003B |
34003-0050 |
HOLDER-STEP,FR,RH Price: $205.95 |
| 34028 |
34028-0011 |
STEP,FR Price: $107.21 |
| 34028A |
34028-0017 |
STEP,RR Price: $23.45 |
| 92043 |
92043-1339 |
PIN,8X36.5 Price: $7.84 |
| 92043A |
92043-1707 |
PIN,10X98.5 Price: $10.49 |
| 92144 |
92144-1266 |
SPRING Price: $8.79 |
| 92161 |
92161-0232 |
DAMPER,STEP Price: $16.53 |
| 92161A |
92161-1325 |
DAMPER,FRONT STEP Price: $70.24 |
