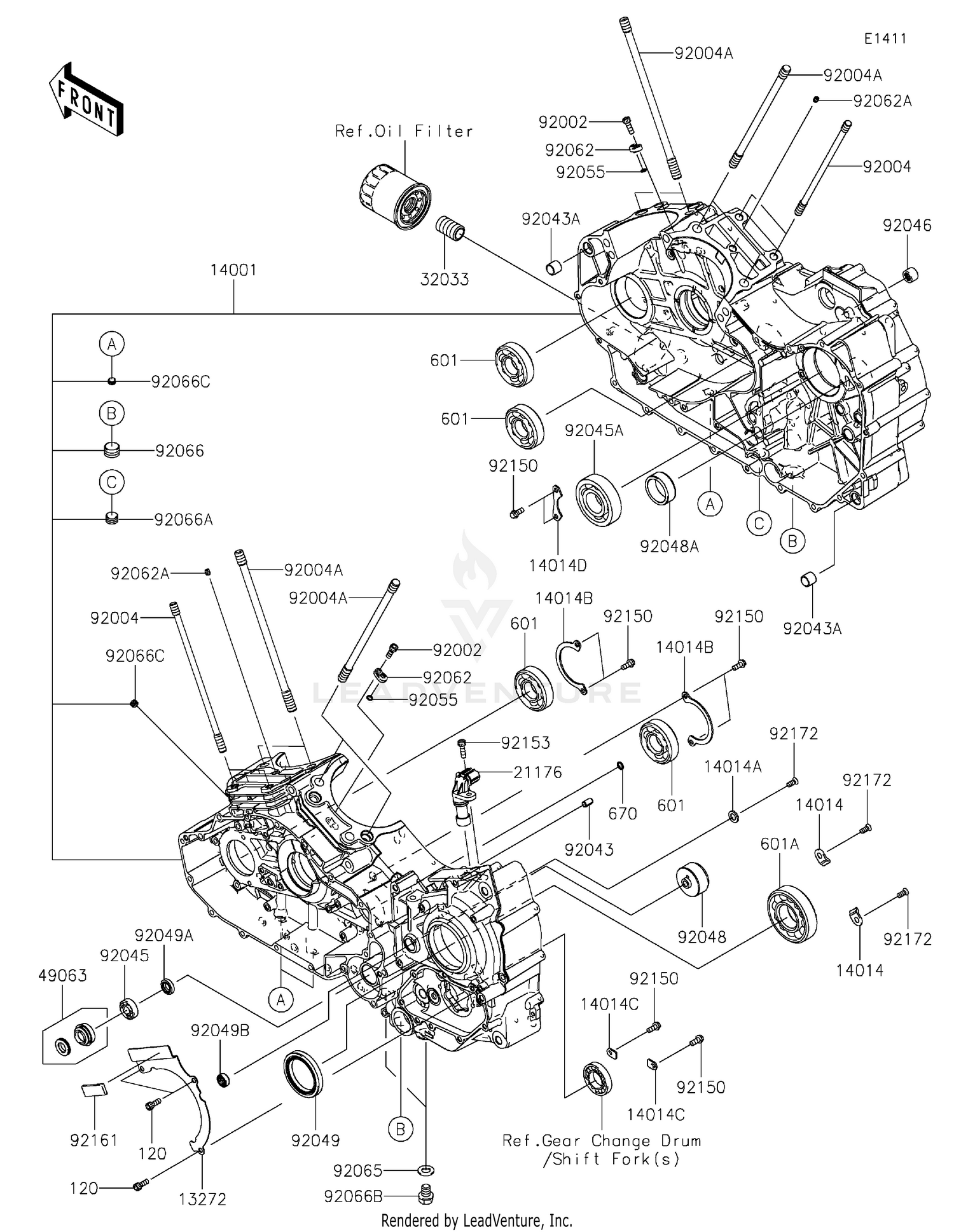

| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 Price: $4.09 |
| 3 |
420641323 |
Plug Screw M10 X 1 Price: $14.49 |
| 4 |
420840500 |
Threaded Pin Price: $7.79 |
| 5 |
420933180 |
Cushion Price: $17.49 |
| 6 |
420933185 |
Cushion Price: $18.49 |
| 7 |
420933140 |
Ring Half Price: $11.49 |
| 8 |
420832232 |
Ball Bearing Price: $13.16 |
| 9 |
420431402 |
Oil Seal Price: $19.49 |
| 10 |
420845790 |
Retaining Ring Price: $7.69 |
| 11 |
420950141 |
Sealing Ring Price: $2.09 |
| 12 |
420440852 |
Torx Flange Screw M8 X 16 Price: $4.19 |
| 13 |
420641213 |
Torx Flange Screw M8 X 55 Price: $7.59 |
| 14 |
420440274 |
Torx Flange Screw M6 X 35 Price: $1.09 |
| 15 |
420940945 |
Torx Flange Screw M9 X 113 Price: $13.99 |
| 16 |
420911124 |
Oil Sump This part replaces 420911122. Price: $81.99 |
| 17 |
420431630 |
Gasket Price: $15.49 |
| 18 |
420841549 |
Torx Flange Screw M6 X 25 Price: $2.09 |
| 19 |
420060203 |
Long Block 602 This part replaces 420060202. Price: $3,887.99 |
| 120 |
120CA0616 |
BOLT-SOCKET,6X16 Price: $2.49 |
| 601 |
601A6305 |
BEARING-BALL,#6305 Price: $18.63 |
| 601A |
601A6307 |
BEARING-BALL Price: $37.57 |
| 670 |
670D1508 |
O RING,8MM Price: $4.31 |
| 13272 |
13272-0319 |
PLATE,EG OUTPUT Price: $8.10 |
| 14001 |
14001-0134 |
SET-CRANKCASE Price: $1,975.76 |
| 14014 |
14014-0003 |
PLATE-POSITION Price: $4.69 |
| 14014A |
14014-0019 |
PLATE-POSITION,9.5X17X2.3 Price: $3.90 |
| 14014B |
14014-0033 |
PLATE-POSITION,BALANCER Price: $5.59 |
| 14014C |
14014-0034 |
PLATE-POSITION,CHANGE DRUM Price: $5.59 |
| 14014D |
14014-1084 |
PLATE-POSITION Price: $6.47 |
| 21176 |
21176-0042 |
SENSOR,SPEED Price: $131.52 |
| 32033 |
32033-1535 |
PIPE,OIL FILTER Price: $12.96 |
| 49063 |
49063-1055 |
SEAL-MECHANICAL Price: $20.06 |
| 92002 |
92002-1805 |
BOLT,SOCKET,5X18 Price: $4.69 |
| 92004 |
92004-0038 |
STUD,10X201 Price: $20.08 |
| 92004A |
92004-0039 |
STUD,12X217 Price: $28.58 |
| 92043 |
92043-1263 |
PIN,6.2X8X14 Price: $0.43 |
| 92043A |
92043-1608 |
PIN,13X16X14 Price: $5.00 |
| 92045 |
92045-1151 |
BEARING-BALL,6001JRXLLU/5K Price: $27.31 |
| 92045A |
92045-1190 |
BEARING-BALL,6306SH2 Price: $40.80 |
| 92046 |
92046-1292 |
BEARING-NEEDLE,HK1212V11 Price: $16.92 |
| 92048 |
92048-0017 |
RACE Price: $35.44 |
| 92048A |
92048-1103 |
RACE Price: $24.36 |
| 92049 |
92049-0107 |
SEAL-OIL,50X68X9 Price: $26.40 |
| 92049A |
92049-1228 |
SEAL-OIL,SC 12X22X5 Price: $9.28 |
| 92049B |
92049-1566 |
SEAL-OIL Price: $7.65 |
| 92055 |
92055-1339 |
RING-O,5.5X1.5 Price: $4.32 |
| 92062 |
92062-0016 |
NOZZLE,OIL JET Price: $9.61 |
| 92062A |
92062-1080 |
NOZZLE,6X8,YELLOW Price: $8.58 |
| 92065 |
92065-097 |
GASKET,12X22X2 Price: $0.74 |
| 92066 |
92066-0002 |
PLUG,PT1/2X12.5 Price: $8.98 |
| 92066A |
92066-0003 |
PLUG,PT3/8X10 Price: $3.31 |
| 92066B |
92066-0079 |
PLUG,12X15 Price: $6.02 |
| 92066C |
92066-1227 |
PLUG,PT1/8X7 Price: $5.90 |
| 92150 |
92150-1916 |
BOLT,6X14 Price: $3.32 |
| 92153 |
92154-1837 |
BOLT,SOCKET,6X20 This part replaces 92153-1031. Price: $2.15 |
| 92161 |
92161-0124 |
DAMPER Price: $3.44 |
